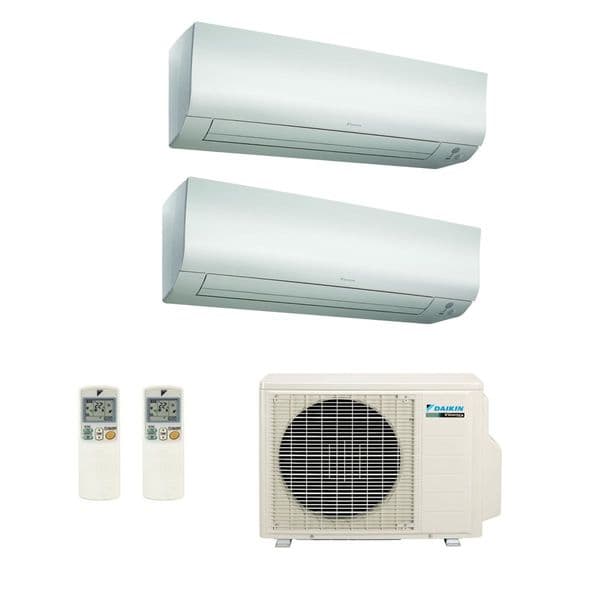

Daikin Air conditioning Multi 1 x 2MXM40M 2 x FTXM20M 2Kw Wall Mounted Heat Pump R32 A+ 240V~50Hz

Name: Daikin Air conditioning Multi 1 x 2MXM40M 2 x FTXM20M 2Kw Wall Mounted Heat Pump R32 A+ 240V~50Hz
Brand: Daikin Air Conditioning
Price: 1656.20 GBP
Availability: InStock

£1,656.20 £1,380.17 (ex. VAT)

Stock Status: In Stock

Information Reviews

A+ Rated energy product

Includes:

1 x 2MXM40M Inverter Heat Pump Condensing unit
1 x FTXM20M 2kw / 6000 Btu Heat pump wall Indoor Unit
2 x Remote controllers ARC466A33

Mitsubishi inverter Multi outdoor running 2 STM50ZG Cassette units.

2 indoor units on 1 outdoor condensing unit

Variable capacity multi air conditioning system

The variable capacity R32 multi systems are ideal for light commercial and residential applications, having the highest SCoP and low start currents, ideal where there is limited power supply. The Inverter outdoor units are suitable for 2 connected indoor units, depending on the model. Each indoor unit is connected directly by a pair of small diameter refrigerant pipes to the outdoor unit.

There are no branch joints involved. All connected indoor units operate in the same mode, i.e. either all Heating, or all Cooling. There are many permutations of connectible indoor units to each outdoor unit. These are listed below. The cooling and heating data is based on all connected units operational at the same time at full load. In practise the load in each room is unlikely to be at 100% continuously, so the available spare capacity is then shared to other units accordingly. Daikin air conditioning has been manufacturing multi systems for residential applications for many years. The latest state-of-the-art Inverter technology is now applied to the range, delivering exceptionally high efficiency, as well as variable individual unit control for stable and comfortable conditions.

Product Key Feature's

• High sCoP
• 1 Outdoor unit saving space
• Energy saving inverter
• New advanced technology control
• Infra-red controller with wall mounting bracket
• Reduced height slim construction
• Pipe runs up to 30 metres total
• Low noise – 19dBA on smaller models
• Back-up switch for loss of controller
• Cold draft prevention on heat pump start up
• Fault diagnosis
• Auto re-start after power interruption
• PRE-CHARGED WITH REFRIGERANT for
up to 15 metres pipe length

OUTDOOR UNIT:

Outdoor Units			2MXM40M	2MXM50M9	3MXM40N	3MXM52N	3MXM68N	4MXM68N	4MXM80N	5MXM90N
Capacity	Nominal Cooling kW		4.0	5.0	4.0	5.2	6.8	6.8	8.0	9.0
Capacity	Nominal Heating kW		4.4	5.7	4.6	6.8	8.6	8.6	9.6	10.4
Dimensions Height x Width x Depth mm			550 x 765 x 285	550 x 765 x 285	734 x 958 x 340	734 x 958 x 340	734 x 958 x 340	734 x 958 x 340	734 x 958 x 340	734 x 958 x 340
Weight kg			36	41	57	57	62	63	67	68
Electrical Details	Power Supply	Phase	1ph	1ph	1ph	1ph	1ph	1ph	1ph	1ph
		Hz	50	50	50	50	50	50	50	50
		V	220-240	220-240	220-240	220-240	220-240	220-240	220-240	220-240
	Running Current amps		Refer to Multi Combination Tables
	Starting Current amps		4.6	6.3	4.1	4.6	9.8	8.3	11.2	11.8
	Fuse Rating amps		16	16	30	30	30	30	30	30
Refrigerant Circuit	Refrigerant Type		R32	R32	R32	R32	R32	R32	R32	R32
Refrigerant Circuit	Refrigerant Charge kg		0.88	1.15	1.80	1.80	2.00	2.00	2.40	2.40
Sound Pressure (Cooling) Nom dBA			48	46	46	46	48	48	49	52
Sound Power (Cooling)			60	60	59	59	61	61	61	64
Piping Limits	Max. Length (OU- IU) m		20	20	25	25	25	25	25	25
	Max. Level Difference (IU- IU) m		7.5	7.5	7.5	7.5	7.5	7.5	7.5	7.5
	Max. Level Difference (IU- OU) m		15	15	15	15	15	15	15	15
	Total piping length (Actual) m		30	30	50	50	50	60	70	75
Piping Connections	Liquid inches (mm)		2x 1/4 (6.4)	2x 1/4 (6.4)	3x 1/4 (6.4)	3x 1/4 (6.4)	3x 1/4 (6.4)	4x 1/4 (6.4)	4x 1/4 (6.4)	5x 1/4 (6.4)
	Gas inches (mm)		2x 3/8 (9.5)	3/8 (9.5)	1x 3/8 (9.5)	1x 3/8 (9.5)	1x 3/8 (9.5)	2x 3/8 (9.5)	3/8 (9.5)	2x 3.8 (9.5)
					2x 1/2 (12.7)	2x 1/2 (12.7)	2x 1/2 (12.7)	2x 1/2 (12.7)	1/2 (12.7)	1x 1/2 (12.7)
										2x 5/8 (15.9)
Operating range (Cooling) Min / Max °CDB			-10 / 46	-10 / 46	-10 / 46	-10 / 46	-10 / 46	-10 / 46	-10 / 46	-10 / 46
Operating range (Cooling) Min / Max °CWB			-15 / 18	-15 / 18	-15 / 18	-15 / 18	-15 / 18	-15 / 18	-15 / 18	-15 / 18
Number of Connected Indoor Units			2	2	3	3	3	4	4	5
Air Flow Rate (Cooling) Nom m3/sec			0.550	0.566	0.700	0.700	0.708	0.708	0.753	0.818

INDOOR UNITS:

					FTXM20M2V1B	FTXM25M2V1B	FTXM35M2V1B	FTXM42M2V1B	FTXM50M2V1B	FTXM60M2V1B	FTXM71M2V1B
Power input	Cooling		Nom.	kW	0.030	0.030	0.035	0.035	0.030	0.032	0.054
	Heating		Nom.	kW	0.025	0.025	0.025	0.035	0.032	0.035	0.060
Casing	Colour				White	White	White	White	White	White	White
Dimensions	Unit		Height	mm	294	294	294	294	300	300	300
			Width	mm	811	811	811	811	1,040	1,040	1,040
			Depth	mm	272	272	272	272	295	295	295
	Packed unit		Height	mm	350	350	350	350	397	397	397
			Width	mm	865	865	865	865	1,115	1,115	1,115
			Depth	mm	375	375	375	375	377	377	377
Weight	Unit			kg	10.0	10.0	10.0	10.0	14.5	14.5	14.5
	Packed unit			kg	12	12	12	12	17	17	17
Packing	Weight			kg	2.0	2.0	2.0	2.0	2.5	2.5	2.5
Heat exchanger	Length			mm	610	610	610	610	820	820	820
	Rows		Quantity		2	2	2	2	2	2	2
	Fin pitch			mm	1.40	1.40	1.40	1.40	1.40	1.40	1.40
	Stages		Quantity		18	18	18	18	18	18	18
	Passes		Quantity		2.2	2.2	2.2	2.2	6.0	6.0	4.0
	Tube type				ø5 Hi-XB	ø5 Hi-XB	ø5 Hi-XB	ø5 Hi-XB	ø5 Hi-XB	ø5 Hi-XB	ø5 Hi-XB
	Fin		Type		ML fin (Multi louver)	ML fin (Multi louver)	ML fin (Multi louver)	ML fin (Multi louver)	ML fin (Multi louver)	ML fin (Multi louver)	ML fin (Multi louver)
Heat exchanger 2	Length			mm	600	600	600	600	810	810	810
	Rows		Quantity		1	1	1	1	1	1	1
	Fin pitch			mm	1.40	1.40	1.40	1.40	1.40	1.40	1.40
	Stages		Quantity		4	4	4	4	8	8	8
Heat exchanger 3	Length			mm					810	810	810
	Rows			Quantity					1	1	1
	Fin pitch			mm					1.40	1.40	1.40
	Stages			Quantity					4	4	4
Fan	Type				Cross flow fan	Cross flow fan	Cross flow fan	Cross flow fan	Cross flow fan	Cross flow fan	Cross flow fan
	Air flow rate	Cooling	High	m³/min	11.1	11.1	12.6	12.6	16.5	17.1	17.6
			High	cfm	392	392	445	445	583	604	621
			Medium	m³/min	7.9	8.1	8.3	9.5	14.2	14.6	15.0
			Medium	cfm	280	286	293	335	502	516	530
			Low	m³/min	6.0	6.2	6.4	7.1	11.6	12.0	12.5
			Low	cfm	212	219	226	251	410	424	440
			Silent operation	m³/min	4.4	4.4	4.6	4.6	10.3	10.7	11.1
			Silent operation	cfm	155	155	162	162	364	378	391
		Heating	High	m³/min	10.4	10.4	10.4	13.0	17.1	17.7	18.4
			High	cfm	367	367	367	459	604	625	648
			Medium	m³/min	8.7	8.7	9.0	10.4	14.6	15.6	16.2
			Medium	cfm	307	307	318	367	516	551	572
			Low	m³/min	6.5	6.8	7.1	7.1	12.2	12.6	13.0
			Low	cfm	230	240	251	251	431	445	461
			Silent operation	m³/min	5.3	5.3	5.3	5.3	10.7	11.2	11.9
			Silent operation	cfm	187	187	187	187	378	396	419
Fan motor	Model				MM6K11S20VA	MM6K11S20VA	MM6K11S20VA	MM6K11S20VA	MM9E17S21VA	MM9E17S21VA	MM9E17S21VA
	Speed		Steps		5 + silent, + auto	5 + silent, + auto	5 + silent, + auto	5 + silent, + auto	5 + silent, + auto	5 + silent, + auto	5 + silent, + auto
		Cooling	High	rpm	1,070	1,070	1,190	1,190	1,030	1,060	1,080
			Medium	rpm	800	820	840	940	910	930	950
			Low	rpm	640	660	680	730	780	800	820
			Silent operation	rpm	520	520	530	530	710	730	750
		Heating	High	rpm	1,000	1,000	1,000	1,220	1,060	1,090	1,120
			Medium	rpm	860	860	900	1,000	930	980	1,010
			Low	rpm	690	710	730	730	810	830	850
			Silent operation	rpm	590	590	590	590	730	760	790
	Output		Rated	W	22	22	22	22	46	46	52
Sound power level	Cooling			dBA	57	57	60	60	59	60	60
	Heating			dBA	54	54	54	60	58	59	61
Sound pressure level	Cooling		High	dBA	41	41	45	45	44	46	47
			Medium	dBA	33	33	33	39	40	42	43
			Low	dBA	25	25	29	30	36	37	38
			Silent operation	dBA	19	19	19	21	32	34	35
	Heating		High	dBA	39	39	39	45	43	45	46
			Medium	dBA	34	34	35	39	39	41	42
			Low	dBA	26	27	28	29	34	36	37
			Silent operation	dBA	20	20	20	21	31	33	34
Refrigerant	Type				R-32	R-32	R-32	R-32	R-32	R-32	R-32
Piping connections	Liquid		OD	mm	6,35	6,35	6,35	6,35	6,35	6,35	6,35
	Gas		OD	mm	9.50	9.50	9.50	12.7	12.7	12.7	15.90
	Drain				18	18	18	18	18	18	18
	Heat insulation				Both liquid and gas pipes	Both liquid and gas pipes	Both liquid and gas pipes	Both liquid and gas pipes	Both liquid and gas pipes	Both liquid and gas pipes	Both liquid and gas pipes
Air filter	Type				Removable / washable	Removable / washable	Removable / washable	Removable / washable	Removable / washable	Removable / washable	Removable / washable
Air direction control					Right, Left, Horizontal, Downward	Right, Left, Horizontal, Downward	Right, Left, Horizontal, Downward	Right, Left, Horizontal, Downward	Right, Left, Horizontal, Downward	Right, Left, Horizontal, Downward	Right, Left, Horizontal, Downward
Temperature control					Microcomputer control	Microcomputer control	Microcomputer control	Microcomputer control	Microcomputer control	Microcomputer control	Microcomputer control
Control systems	Infrared remote control				ARC466A33	ARC466A33	ARC466A33	ARC466A33	ARC466A33	ARC466A33	ARC466A33
	Wired remote control				BRC944B2, BRC073A1	BRC944B2, BRC073A1	BRC944B2, BRC073A1	BRC944B2, BRC073A1	BRC944B2, BRC073	BRC944B2, BRC073	BRC944B2, BRC073
Standard Accessories	Installation manual				1	1	1	1	1	1	1
	Operation manual				1	1	1	1	1	1	1
	Wireless remote control				1	1	1	1	1	1	1
	AAA dry-cell batteries				2	2	2	2	2	2	2
	Remote control holder				1	1	1	1	1	1	1
	Mounting plate				1	1	1	1	1	1	1
	Titanium apatite deodorizing filter				1	1	1	1	2	2	2
	Indoor unit fixing screws				2	2	2	2	2	2	2
Power supply	Name				V1	V1	V1	V1	V1	V1	V1
	Phase				1~	1~	1~	1~	1~	1~	1~
	Frequency			Hz	50	50	50	50	50	50	50
	Voltage			V	220-240	220-240	220-240	220-240	220-240	220-240	220-240
Power factor	Nominal		Cooling	%							62.80 (0.000)
			Heating	%							62.60 (0.000)
Current	Nominal running current (RLA) - 50Hz		Cooling	A	0.22	0.22	0.25	0.25	0.20	0.22	0.37
			Heating	A	0.17	0.17	0.17	0.25	0.22	0.25	0.42
Wiring connections - 50Hz	For power supply		Quantity		3	3	3	3	3	3
			Remark		3 for power supply, 4 for interunit wiring (Earth wire included)	3 for power supply, 4 for interunit wiring (Earth wire included)	3 for power supply, 4 for interunit wiring (Earth wire included)	3 for power supply, 4 for interunit wiring (Earth wire included)	3 for power supply, 4 for interunit wiring (Earth wire included)	3 for power supply, 4 for interunit wiring (Earth wire included)	4 for interunit wiring (earth wire included)

PDF Data:

These air conditioning units must be installed by an F-Gas qualified engineer. We can install the unit for you using our F-Gas Certified Engineers. Please note if you do not select our installation service we will not ship the unit until we have obtained evidence from you that you will have the unit installed by an F-Gas qualified engineer. This is a requirement of the Article 11 (5) EC/517/2014 on fluorinated greenhouse gases and The Fluorinated Greenhouse Gases Regulations 2015.
