Daikin Air Conditioning Under Ceiling Cassette Inverter Heat Pump FUA A+

Daikin Air Conditioning FUA100A Under Ceiling Cassette 10Kw/34000Btu A+ R32 240V/415V~50Hz

Daikin Air Conditioning FUA100A Under Ceiling Cassette 10Kw/34000Btu A+ R32 240V/415V~50Hz

£3,041.59 £2,534.66 (ex. VAT)
Stock Status: In Stock

A+ Energy rated product

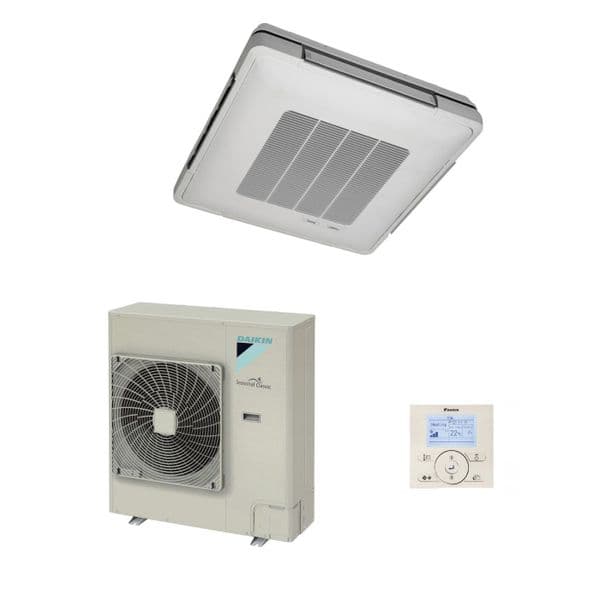

Includes:

1 x Daikin
RZASG100M7V1 Outdoor unit R32
1 x Daikin FUA100A Under Ceiling Cassette R32

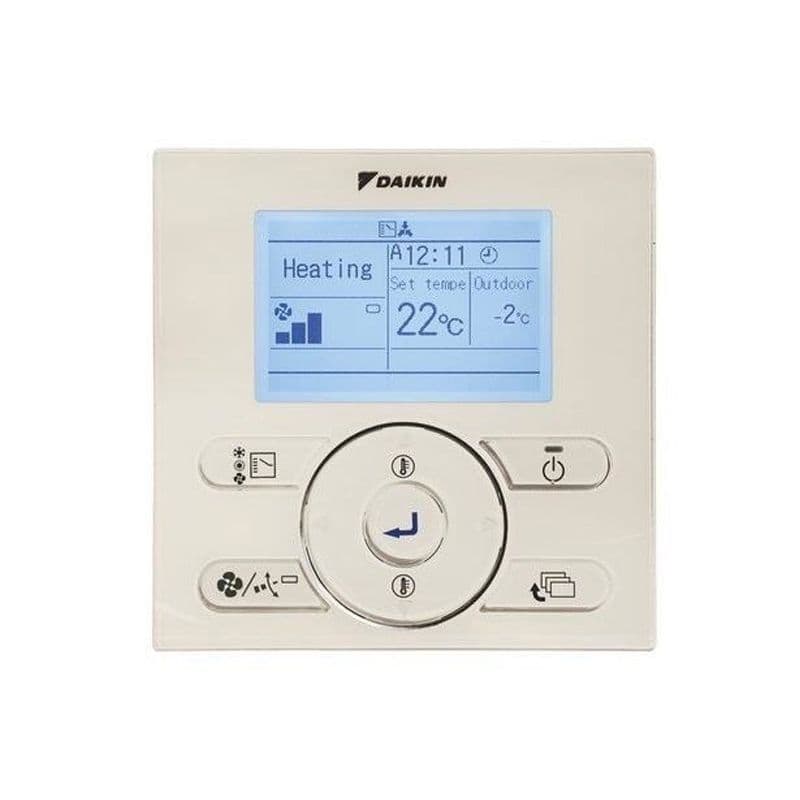

1 x Daikin Remote Controller Hard Wired


Daikin’s Under Ceiling Cassette is a unique product, a 4 way blow system that can be installed under the ceiling in rooms that have solid ceilings or narrow voids that may prevent a traditional cassette being installed. Under Ceiling Cassette Seasonal Smart. The Under Ceiling Cassette exceeds Energy Related Products Directive minimum efficiency standards for Seasonal Efficiency, combining industry leading efficiencies with smart looks and functionality to suit office and retail applications.


The re-designed profile of the unit means it is less obtrusive when installed. Air discharge louvres close completely when the unit is not operating, adding to the aesthetic. Energy savings can be made using the remote controller which gives control over set-point ranges and day-to-day use of controls. This can give occupants some flexibility over room conditions without compromising energy usage. Energy efficiencies can be improved by utilising the selectable evaporating and condensing temperature option, making the Seasonal Smart Under Ceiling Cassette the ideal solution for energy conscious building managers.




Product Key Feature's:



• High CoP, up to record 3.76
• High Air movement volume
• Fixed wall mounted controller
• Slim construction
• Pipe runs up to 75 meters
• Low noise levels
• Back-up switch for loss of controller
• Cold draft prevention on heat pump start up
• Fault diagnosis
• Auto re-start after power interruption
• PRE-CHARGED WITH REFRIGERANT for up to 30 metres pipe length



Product Technical Data:



Power source 1 ph 240V / 415V ~50Hz
Type  Inverter controlled
COOLING (nominal) max. kW
9.1 / 31000 BTU
HEATING (nominal) max. kW 10.00 / 34000 BTU
UK Cooling (max) kW  6.2
UK Sensible cooling kW (max) kW 11.2

E.E.R.
Energy label A++
High SCOP
ECA - Yes





INDOOR UNIT:



Model

RZASG100M7V1

Casing

Colour

Ivory white

Material

Painted galvanized steel plate

Dimensions

Unit

Height

mm

990

Width

mm

940

Depth

mm

320

Packed unit

Height

mm

1,170

Width

mm

1,015

Depth

mm

422

Weight

Unit

kg

70

Packed unit

kg

78

Packing

Weight

kg

9

Heat exchanger

Fin

Type

WF fin

Treatment

Anti-corrosion treatment (PE)

Fan

Type

Propeller

Discharge direction

Horizontal

Quantity

1

Air flow rate

Cooling

Nom.

m³/min

69

Heating

Nom.

m³/min

82

Partial

m³/min

Fan motor

Quantity

1

Model

Brushless DC motor

Output

W

200

Drive

Direct drive

Compressor

Quantity

1

Type

Hermetically sealed swing compressor

Operation range

Cooling

Ambient

Min.

°CDB

-15

Max.

°CDB

46

Heating

Ambient

Min.

°CWB

-15

Max.

°CWB

15.5

Sound power level

Cooling

dBA

70

Heating

dBA

Sound pressure level

Cooling

Nom.

dBA

53

Heating

Nom.

dBA

57

Refrigerant

Type

R-32

Charge

kg

2.60

Charge

TCO2Eq

1.76

Control

Expansion valve (electronic type)

GWP

675

Circuits

Quantity

1

Refrigerant oil

Type

FW68DA

Charged volume

l

0.90

Piping connections

Liquid

Quantity

1

Type

Flare connection

OD

mm

9.52

Gas

Quantity

1

Type

Flare connection

OD

mm

15.9

Drain

Quantity

5

Type

Hole

OD

mm

26

Piping length

OU - IU

Min.

m

5

Max.

m

50

System

Equivalent

m

70

Chargeless

m

30

Additional refrigerant charge

kg/m

See installation manual

Level difference

IU - OU

Max.

m

30.0

IU - IU

Max.

m

0.5

Heat insulation

Both liquid and gas pipes

Defrost method

Reversed cycle

Defrost control

Sensor for outdoor heat exchanger temperature

Capacity control

Method

Inverter controlled

PED

Category

Category II

Safety devices

Item

01

High pressure switch

02

Low pressure switch

03

Fan driver overload protector

04

Fuse

05

Compressor motor thermal protector

Standard Accessories

Tie-wraps

2

Installation manual

1

Refrigerant label for F-gas regulation

1

General safety precautions

1

LOT10 Energy Label

1

Peel off F-gas label

Power supply

Name

V1

Phase

1~

Frequency

Hz

50

Voltage

V

220-240

Voltage range

Min.

V

198

Max.

V

264

Current

Zmax

List

Complies to EN61000-3-11

Minimum Ssc value

kVa

Equipment complying with EN / IEC 61000-3-12, See note 2, See note 3

Wiring connections

For power supply

Remark

See installation manual outdoor unit

For connection with indoor

Remark

See installation manual outdoor unit

Power supply intake

See installation manual outdoor unit

Current - 50Hz

Maximum fuse amps (MFA)

A

25

Notes

(1) - According to ENER Lot 21

(2) - European/international technical standard setting the limits for harmonic currents produced by equipment connected to public low-voltage system with input current larger than 16A and ≤ 75A per phase.

(3) - Ssc: Short-circuit power

(4) - European/international technical standard setting the limits for harmonic currents produced by equipment connected to public low-voltage system with input current ≤ 16A per phase.









PDF Data:






These air conditioning units must be installed by an F-Gas qualified engineer.  We can install the unit for you using our F-Gas Certified Engineers. Please note if you do not select our installation service  we will not ship the unit until we have obtained evidence from you that you will have the unit installed by an F-Gas qualified engineer. This is a requirement of the Article 11 (5) EC/517/2014 on fluorinated greenhouse gases and The Fluorinated Greenhouse Gases Regulations 2015.
