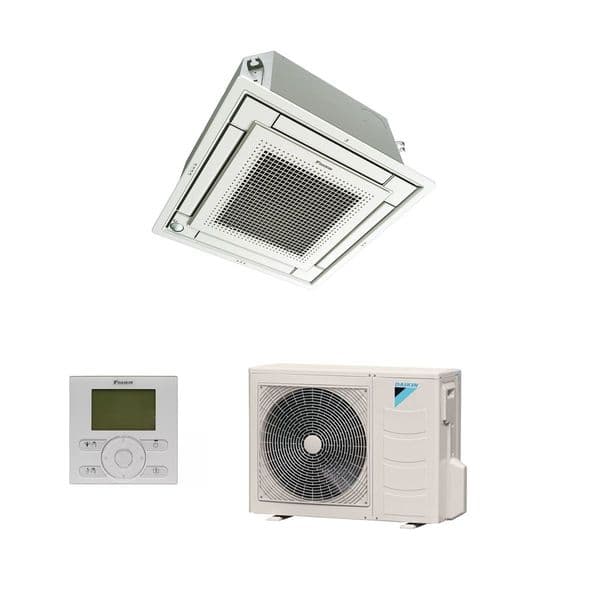

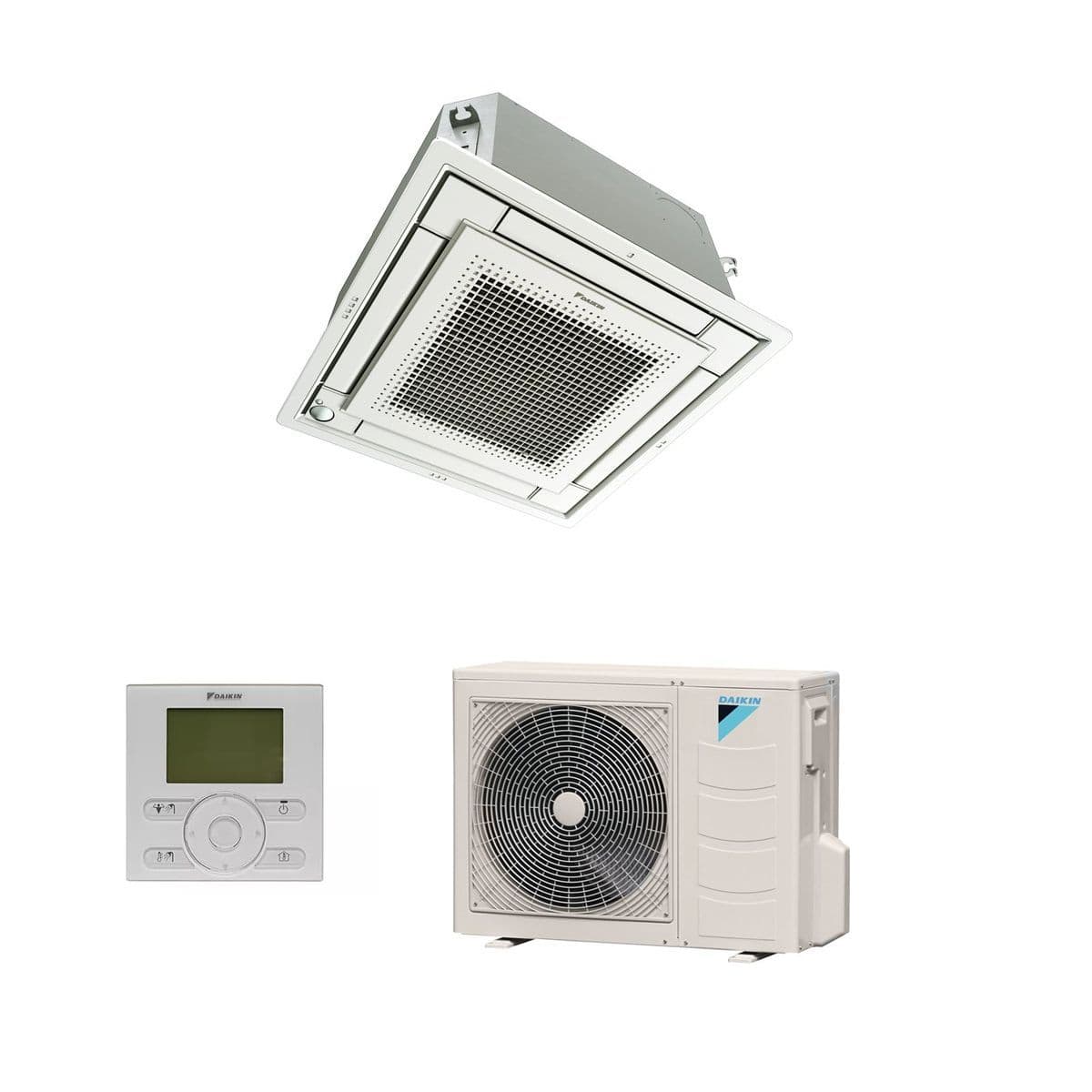

Daikin Air Conditioning FFA35A9 Fully Flat Cassette (3.5 kW / 12000 Btu) 600x600 Heat Pump Inverter. A++ rated energy product.
Includes:
1 x Daikin RZAG35A Outdoor unit R32
1 x Daikin FFA35A9 Flat 600mm Ceiling Cassette R32
1 x Daikin Remote Controller Hard Wired
The fully flat cassette integrates the latest technology with energy saving functions that enhance user comfort, all within a unique design that allows the visible panel to fit flush within standard architectural ceiling panels .The fully flat cassette is the first unit in the market that fits flush with the ceiling. The newly designed panel integrates fully within one ceiling tile enabling lights, speakers and sprinklers to be installed in the adjacent ceiling tiles. As with all Daikin products, this cassette delivers exceptional seasonal efficiency while the presence sensor has been shown to reduce energy consumption up to 27%.The fully fl at cassette’s advanced controller provides the user with absolute control over their work environment.
The large display screen and on screen instructions combined with clearly marked function buttons allow users to quickly set their desired conditions and to focus on the job at hand. The filter is able to trap microscopic particles, to decompose odours, and even to remove bacteria and to deactivate viruses. The filter lasts for 3 years without replacement if washed about every 6 months. air conditioning cassette range lead the industry with their energy savings and wide model range. These indoor units are extremely quiet in operation, the sound levels are as low as 29.5 dB. The compact design makes them ideal for home, office or any commercial application. Daikin mini cassette air conditioners are a compact 600mm x 600mm design for easy installation into grid and plaster ceiling. Daikin
Product Key Feature's:
• High CoP
• Movement sensor to save energy (optional)
• Fixed wall mounted controller
• Slim construction
• Pipe runs up to 50 meters
• Low noise levels
• Back-up switch for loss of controller
• Cold draft prevention on heat pump start up
• Fault diagnosis
• Auto re-start after power interruption
• PRE-CHARGED WITH REFRIGERANT for up to 30 metres pipe length
Product Technical Data:
|
Indoor Units
|
|
FFA35A9
|
|
Capacity
|
UK Total Cooling
|
kW
|
3.32
|
|
UK Sensible Cooling
|
kW
|
2.28
|
|
Nominal Cooling
|
kW
|
3.4
|
|
Nominal Heating
|
kW
|
4.2
|
|
Seasonal Efficiency (EN14825) COOLING
|
Energy Label
|
A++
|
|
Pdesign
|
kW
|
3.4
|
|
SEER
|
6.40
|
|
Seasonal Efficiency (EN14825) HEATING
|
Energy Label
|
A
|
|
Pdesign
|
kW
|
3.10
|
|
SCOP
|
3.80
|
|
Nominal Efficiency EER/COP
|
4.00 / 3.71
|
|
Air Flow Rate (Cooling) High / Nom / Low
|
m3/sec
|
0.166/0.141/0.108
|
|
Dimensions
(with Decoration Panel)
|
Height
|
mm
|
260 (306)
|
|
Width
|
mm
|
575 (620)
|
|
Depth
|
mm
|
575 (620)
|
|
Weight (with Decoration Panel)
|
kg
|
16 (18.8)
|
|
Sound Pressure (Cooling) High / Nom / Low
|
dBA
|
34/30.5/25
|
|
Sound Pressure (Heating) High / Nom / Low
|
dBA
|
34/30.5/25
|
|
Sound Power (Cooling)
|
dBA
|
51
|
|
Outdoor Units
|
|
RZAG35A
|
|
Dimensions Height x Width x Depth
|
mm
|
820 x 1050 x 480
|
|
Weight
|
kg
|
52
|
|
Electrical Details
|
Power Supply
|
1ph
|
|
Maximum Input Current (MCA) A
|
14.43
|
|
Max Fuse Size A
|
16
|
|
Interconnection Wiring Core / Cable Size
|
3+E / 1.5
|
|
Piping Connections Liquid / Gas
|
inches (mm)
|
1/4 (6.4) / 3/8 (9.5)
|
|
Pipework
|
Maximum Length
|
m
|
50
|
|
Maximum Vertical Rise
|
m
|
30
|
|
Precharged to
|
m
|
30
|
|
Additional charge
|
g/m
|
20
|
|
Holding charge
|
kg
|
1.55
|
|
Sound Pressure (Cooling) Nominal
|
dBA
|
48
|
|
Sound Pressure (Heating) Nominal
|
dBA
|
48
|
|
Sound Power (Cooling)
|
dBA
|
62
|
|
Operating Range (Cooling) Min / Max
|
°CDB
|
-20 / +52
|
|
Operating Range (Heating) Min / Max
|
°CWB
|
-20 / +24
|
|
Air Flow Rate (Cooling) Nominal
|
m3/sec
|
0.918
|
![]()
|
Accessory Ref
|
Description
|
Accessory Ref
|
Description
|
|
BYFQ60CW
|
Fully Flat Cassette Decoration Panel - White (Included as standard)
|
K.CGM
|
Condensing unit guard size 42-71
|
|
BRC1E53A
|
Premium wired remote controller (Included as standard)
|
K.CGS
|
Condensing unit guard size 20-35
|
|
BRP069A81
|
Wifi adaptor for connection to on-line controller
|
K.CWB90-2
|
Condensing unit bracket - up to size 71, max weight 90kg of ODU
|
|
BRC1H519W
|
New - wired touch screen remote controller - White
|
K.DT1
|
Condensate drip tray for use with K.CWB90-2
|
|
BRC1H519S
|
New - wired touch screen remote controller - Silver
|
K.RSS
|
Wireless room mounted temperature sensor and receiver
|
|
BRC1H519K
|
New - wired touch screen remote controller - Black
|
KLIC-DI
|
KNX Interface for Sky Air and VRV systems
|
|
BDBHQ44C60
|
Sealing member for decoration panel FFA,FXZQ
|
KRCS01-4
|
Remote room mounted temperature sensor
|
|
BRC7EB530W
|
Wireless remote for fully flat cassette Old Style decoration panel
|
KRP1B57 and UK.FB2
|
Adaptor PCB for Interlock to fresh air fan
|
|
BRC7F530S
|
Wireless remote controller for Silver ceiling decoration panel
|
KRP4A53 and UK.FB2
|
Unit/group adaptor PCB for remote on/off, status indication and
|
|
BRC7F530W
|
Wireless remote controller for White ceiling decoration panel
|
|
temperature setting
|
|
BRYQ60AS
|
Integral PIR sensor for fully flat cassette Silver decoration panel. Enables energy saving functions
|
RS-SE
RTD-10 and UK.FB2
|
Service and configuration tool for K.RSS
Enhanced function PCB for Sky Air and VRV. Duty rotation,
|
|
BRYQ60AW
|
Integral PIR sensor for fully flat cassette White decoration panel. Enables energy saving functions
|
RTD-20 and UK.FB2
|
Lead Lag control and heating interlock
Energy control PCB for Sky Air and VRV
|
|
BYFQ60B3
|
Fully Flat Cassette Decoration Panel - Old style (FFQ-B9V looks)
|
RTD-NET and UK.FB2
|
Modbus interface PCB for Sky Air and VRV
|
|
BYFQ60CS
|
Fully Flat Cassette Decoration Panel - Silver
|
|
|
PDF Data:
These air conditioning units must be installed by an F-Gas qualified engineer. We can install the unit for you using our F-Gas Certified Engineers. Please note if you do not select our installation service we will not ship the unit until we have obtained evidence from you that you will have the unit installed by an F-Gas qualified engineer. This is a requirement of the Article 11 (5) EC/517/2014 on fluorinated greenhouse gases and The Fluorinated Greenhouse Gases Regulations 2015.
