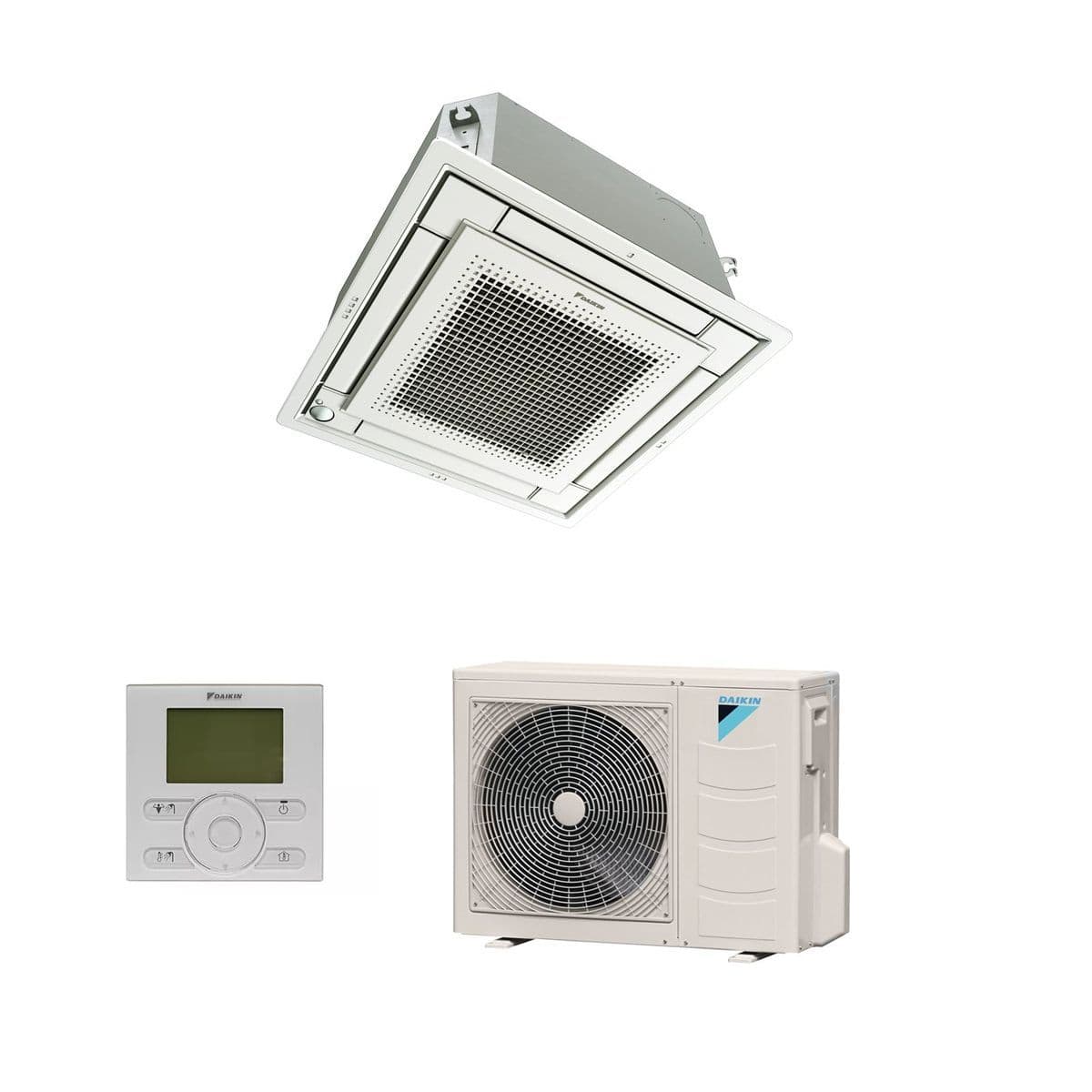

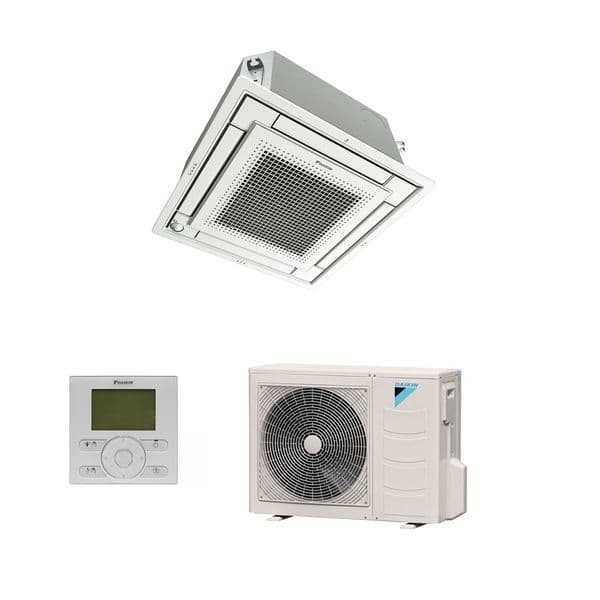

Daikin Air Conditioning FFA25A9 Fully Flat Cassette Standard Inverter 2.5Kw/9000Btu A++ 240V~50Hz. A++ rated energy product.
Includes:
1 x Daikin RXM25N9 Outdoor unit R32
1 x Daikin FFA25A9 Flat 600mm Ceiling Cassette R32
1 x Daikin Remote Controller Hard Wired
The fully flat cassette integrates the latest technology with energy saving functions that enhance user comfort, all within a unique design that allows the visible panel to fit flush within standard architectural ceiling panels .The fully flat cassette is the first unit in the market that fits flush with the ceiling. The newly designed panel integrates fully within one ceiling tile enabling lights, speakers and sprinklers to be installed in the adjacent ceiling tiles. As with all Daikin products, this cassette delivers exceptional seasonal efficiency while the presence sensor has been shown to reduce energy consumption up to 27%.The fully fl at cassette’s advanced controller provides the user with absolute control over their work environment.
The large display screen and on screen instructions combined with clearly marked function buttons allow users to quickly set their desired conditions and to focus on the job at hand. The filter is able to trap microscopic particles, to decompose odours, and even to remove bacteria and to deactivate viruses. The filter lasts for 3 years without replacement if washed about every 6 months. air conditioning cassette range lead the industry with their energy savings and wide model range. These indoor units are extremely quiet in operation, the sound levels are as low as 29.5 dB. The compact design makes them ideal for home, office or any commercial application. Daikin mini cassette air conditioners are a compact 600mm x 600mm design for easy installation into grid and plaster ceiling. Daikin
Product Key Feature's:
• High CoP, up to record 4.5
• Movement sensor to save energy (optional)
• Fixed wall mounted controller
• Slim construction
• Pipe runs up to 20 meters
• Low noise levels
• Back-up switch for loss of controller
• Cold draft prevention on heat pump start up
• Fault diagnosis
• Auto re-start after power interruption
• PRE-CHARGED WITH REFRIGERANT for up to 10 metres pipe length
Product Technical Data:
Power source 1 ph 240V
Type Inverter controlled
COOLING (nominal) max. kW 2.5 / 9000 BTU
HEATING (nominal) max. kW 3.2 / 12000 BTU
UK Cooling (max) kW 2.5
UK Sensible Cooling kW 1.81
E.E.R. 3.65
Energy label in heating A
Energy label in cooling A
C.o.P 3.70
ECA - Yes
INDOOR UNIT:
Exterior dimensions (mm) 286x575x575 Panel dimensions (mm) 55x700x700
Net weight kg 17.5
Sound Pressure Level* (cooling) dB(A) 29.5/24.5
Sound Pressure Level* (heating) dB(A) 29.5/24.5
OUTDOOR UNIT RXS25G
Exterior dimensions (mm) 550 x 765 x 285
Net weight kg 32
Power Source Rating MCB A 15A
Refrigerant max piping length m 10 (R32a)
Pipe sizes - 1/4" x 3/8"
PDF Data:
These air conditioning units must be installed by an F-Gas qualified engineer. We can install the unit for you using our F-Gas Certified Engineers. Please note if you do not select our installation service we will not ship the unit until we have obtained evidence from you that you will have the unit installed by an F-Gas qualified engineer. This is a requirement of the Article 11 (5) EC/517/2014 on fluorinated greenhouse gases and The Fluorinated Greenhouse Gases Regulations 2015.
