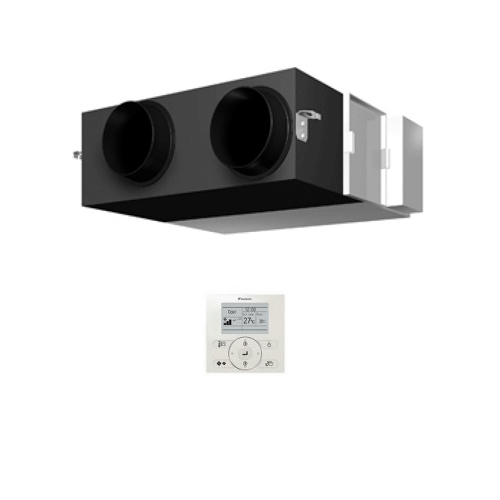

Daikin Air Conditioning Ducted Heat Exchanger VAM350J 350M3/hr 240V~50Hz

Daikin Air Conditioning Ducted Heat Exchanger VAM350J 350M3/hr 240V~50Hz

£1,129.20 £941.00 (ex. VAT)
Stock Status: In Stock

Daikin Air Conditioning Ducted Heat Exchanger VAM350J 350M3/hr 240V~50Hz




Includes Premium Controller: BRC1E53A




Buildings need year round ventilation. In traditional ventilation systems the conditioned inside air is lost when exhausted externally and new unconditioned air is brought into the building. This results in large amounts of air being heated up or cooled down over and above the actual load of the air conditioning system and leads to a substantial waste of energy. The Daikin VAM and VKM systems however, automatically balances outside and inside temperature and humidity enabling the recovery of heat/cold with significant savings in running costs.

The Daikin VAM heat exchange system can be utilised virtually anywhere to extract stale air and then recover the heating or cooling energy to either warm or cool incoming fresh air.The heat exchange element uses a high efficiency paper (HEp) possessing superior moisture absorption and humidifying properties. The heat exchange unit rapidly recovers heat contained in latent heat (vapour). The element is made of a material with flame resistant properties and is treated with an anti-moulding agent.

The free cooling option reduces the air conditioning energy consumption and uses energy in a more efficient way by actively introducing fresh air into rooms. Free cooling maintains indoor comfort through the introduction of low temperature outdoor air into rooms.



Product Key Feature's:



  • Effective Fresh Air Ventilation
  • Free Cooling Function
  • Good Sound Attenuation
  • Temperature Exchange Efficiency (up to 80%)
  • No Outdoor Unit




Unit Specifications:

VAM350J

Dimensions (excluding switch box & transitions)

Height

mm

305

Width

mm

1113

Depth

mm

866

Weight

kg

46.5

Duct Connection Diameter

mm

200

Air Flow Rate

Ultra-High

m3/hr

350

High

m3/hr

300

Low

m3/hr

200

Ultra-High

m3/sec

0.097

High

m3/sec

0.083

Low

m3/sec

0.056

External Static Pressure

Ultra-High

Pa

90

High

Pa

70

Low

Pa

50

Sound Pressure Level (Heat Exchange Mode)

Ultra-High

dBA

34.5

High

dBA

32.0

Low

dBA

29.0

Electrical Details

Power Supply         V / Hz / Phase

230 / 50 / 1

Running Cur

rent   A

1.6

Max Fuse Siz

e        A

16



Optional Accessory Compatibility

VAM150FC

VAM250FC

VAM350J

Inlet Heater Battery+

VH1B

VH2B

VH3B

+ Heater battery does NOT require PCB adaptor to connect to VAM. UK.VH-CK VAM EHBX24 conversion kit cable included.

Optional Inlet Heater Batter

y

VH1B

VH2B

VH3B

Capacity

kW

1

1

1

Duct Diameter

mm

100

150

200

Accessories:

Wired touch screen remote controller - White  BRC1H519S7

Wired touch screen remote controller - Silver    BRC1H519K7

Wired touch screen remote controller - Black   KRP2A52 and UK.FB2

System adaptor PCB for remote on/off, status indication and temperature setting RTD-Net and UK.FB2

Modbus Interface PCB for Sky Air and VRV  RTD-20 and UK.FB2

Energy control PCB for Sky Air and VRV    BRP4A50

PCB Adaptor for VAM-FC series connection to 3rd party heater   KRP50-2

PCB Adaptor for VAM-FC series connection to humidifier BRP4A50A

PCB Adaptor for VAM-J Series connection to 3rd party heater or humidifier   EKMP65VAM

Mounting Plate for adaptor PCB installation on VAM650J   EKMPVAM

Mounting Plate for adaptor PCB installation on VAM1500 / 2000 J EKAFVJ50F6

Air filter for VAM350 / 500 J : ePM10 70% (M6)   EKAFVJ50F7

Air filter for VAM350 / 500 J : ePM1 55% (F7)   EKAFVJ50F8

Air filter for VAM350 / 500 J : ePM1 70% (F8)   EKAFVJ65F6

Air filter for VAM650J: ePM10 70% (M6)    EKAFVJ65F7

Air filter for VAM650J: ePM1 55% (F7)    EKAFVJ65F8

Air filter for VAM650J: ePM1 70% (F8)    EKAFVJ100F6

Air filter for VAM800 / 1000 / 1500 / 2000 J : ePM10 70% (M6)    EKAFVJ100F7

Air filter for VAM800 / 1000 / 1500 / 2000 J : ePM1 55% (F7)    EKAFVJ100F8

Air filter for VAM800 / 1000 / 1500 / 2000 J : ePM1 70% (F8)    BRYMA65

CO2 Sensor for VAM350 / 500 / 650 J    BRYMA100

CO2 Sensor for VAM800 / 1000 J   BRYMA200

CO2 Sensor for VAM1500 / 2000 J    EKPLEN200

Plenum chamber for VAM1500 / 2000 J (4 required per VAM) 350mm duct
