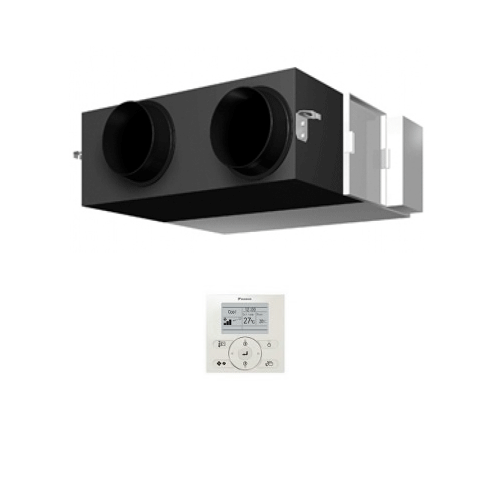

Daikin Air Conditioning Ducted Heat Exchanger VAM150J 150M3/hr 240V~50Hz
SPECIAL OFFER PRICE
Includes Premium Controller: BRC1E53A
Buildings need year round ventilation. In traditional ventilation systems the conditioned inside air is lost when exhausted externally and new unconditioned air is brought into the building. This results in large amounts of air being heated up or cooled down over and above the actual load of the air conditioning system and leads to a substantial waste of energy. The Daikin VAM and VKM systems however, automatically balances outside and inside temperature and humidity enabling the recovery of heat/cold with significant savings in running costs.
The Daikin VAM heat exchange system can be utilised virtually anywhere to extract stale air and then recover the heating or cooling energy to either warm or cool incoming fresh air.The heat exchange element uses a high efficiency paper (HEp) possessing superior moisture absorption and humidifying properties. The heat exchange unit rapidly recovers heat contained in latent heat (vapour). The element is made of a material with flame resistant properties and is treated with an anti-moulding agent.
The free cooling option reduces the air conditioning energy consumption and uses energy in a more efficient way by actively introducing fresh air into rooms. Free cooling maintains indoor comfort through the introduction of low temperature outdoor air into rooms.
Product Key Feature's:
- Effective Fresh Air Ventilation
- Free Cooling Function
- Good Sound Attenuation
- Temperature Exchange Efficiency (up to 80%)
- No Outdoor Unit
Unit Specifications:
|
|
VAM150FC
|
|
Dimensions (excluding switch box & transitions)
|
Height
|
mm
|
285
|
|
Width
|
mm
|
776
|
|
Depth
|
mm
|
525
|
|
Weight
|
kg
|
24
|
|
Duct Connection Diameter
|
mm
|
100
|
|
Air Flow Rate
|
Ultra-High
|
m3/hr
|
150
|
|
High
|
m3/hr
|
140
|
|
Low
|
m3/hr
|
105
|
|
Ultra-High
|
m3/sec
|
0.042
|
|
High
|
m3/sec
|
0.039
|
|
Low
|
m3/sec
|
0.029
|
|
External Static Pressure
|
Ultra-High
|
Pa
|
90
|
|
High
|
Pa
|
87
|
|
Low
|
Pa
|
40
|
|
Sound Pressure Level (Heat Exchange Mode)
|
Ultra-High
|
dBA
|
27.0
|
|
High
|
dBA
|
26.0
|
|
Low
|
dBA
|
20.5
|
|
Electrical Details
|
Power Supply V / Hz / Phase
|
230 / 50 / 1
|
|
Running Cur
|
rent A
|
0.9
|
|
Max Fuse Siz
|
e A
|
16
|
|
Optional Accessory Compatibility
|
VAM150FC
|
|
Inlet Heater Battery+
|
VH1B
|
+ Heater battery does NOT require PCB adaptor to connect to VAM. UK.VH-CK VAM EHBX24 conversion kit cable included.
|
Optional Inlet Heater Batter
|
y
|
VH1B
|
|
Capacity
|
kW
|
1
|
|
Duct Diameter
|
mm
|
100
|
Accessories:
Wired touch screen remote controller - White BRC1H519S7
Wired touch screen remote controller - Silver BRC1H519K7
Wired touch screen remote controller - Black KRP2A52 and UK.FB2
System adaptor PCB for remote on/off, status indication and temperature setting RTD-Net and UK.FB2
Modbus Interface PCB for Sky Air and VRV RTD-20 and UK.FB2
Energy control PCB for Sky Air and VRV BRP4A50
PCB Adaptor for VAM-FC series connection to 3rd party heater KRP50-2
PCB Adaptor for VAM-FC series connection to humidifier BRP4A50A
PCB Adaptor for VAM-J Series connection to 3rd party heater or humidifier EKMP65VAM
Mounting Plate for adaptor PCB installation on VAM650J EKMPVAM
Mounting Plate for adaptor PCB installation on VAM1500 / 2000 J EKAFVJ50F6
Air filter for VAM350 / 500 J : ePM10 70% (M6) EKAFVJ50F7
Air filter for VAM350 / 500 J : ePM1 55% (F7) EKAFVJ50F8
Air filter for VAM350 / 500 J : ePM1 70% (F8) EKAFVJ65F6
Air filter for VAM650J: ePM10 70% (M6) EKAFVJ65F7
Air filter for VAM650J: ePM1 55% (F7) EKAFVJ65F8
Air filter for VAM650J: ePM1 70% (F8) EKAFVJ100F6
Air filter for VAM800 / 1000 / 1500 / 2000 J : ePM10 70% (M6) EKAFVJ100F7
Air filter for VAM800 / 1000 / 1500 / 2000 J : ePM1 55% (F7) EKAFVJ100F8
Air filter for VAM800 / 1000 / 1500 / 2000 J : ePM1 70% (F8) BRYMA65
CO2 Sensor for VAM350 / 500 / 650 J BRYMA100
CO2 Sensor for VAM800 / 1000 J BRYMA200
CO2 Sensor for VAM1500 / 2000 J EKPLEN200
Plenum chamber for VAM1500 / 2000 J (4 required per VAM) 350mm duct
