Daikin Air Conditioning Hard Wired Remote Controller BRC073 For Single-split And FTXS, FTXG, FVXS, FTXM, FTXJ

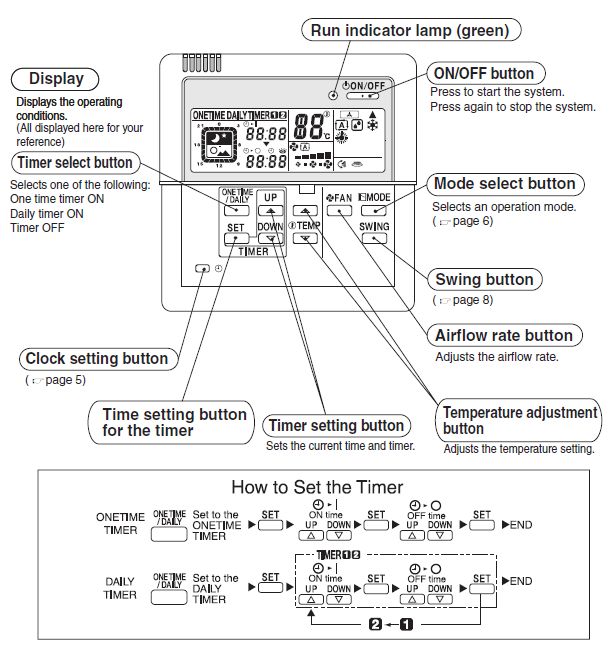

The BRC073 wired controller option is for use with the FTXS, FTXG, FVXS, FTXM, FTXJ system indoor units. The controller features on/off, operation mode (Cool, Heat, Dry, Auto), setpoint adjustment, fan speed adjustment, airflow direction adjustment and one-time daily timer. Fahrenheit/Celsius is selectable.
Operation Modes:
- ON/OFF
- Operating mode selection
- Temperature setting
- Fan speed control
- Timer mode on/off
- Timer mode start/stop
- Inspection/test indication
| Ambient temperature |
Relative humidity < |
95 |
% |
| Casing |
Button cover |
No |
|
|
Colour |
Fresh White |
|
|
Operation LED |
Colour |
Green |
|
| Dimensions |
Packed unit |
Depth |
160 |
mm |
|
|
Height |
50 |
mm |
|
|
Width |
220 |
mm |
|
Unit |
Depth |
19 |
mm |
|
|
Height |
120 |
mm |
|
|
Width |
120 |
mm |
| LCD |
Back light |
Colour |
White |
|
|
Dimensions |
Height |
43.2 |
mm |
|
|
Width |
68.85 |
mm |
|
Type |
Full dot (160 x 255) |
|
| Packing |
Material |
Carton |
|
|
Weight |
0.050 |
kg |
| Weight |
Packed unit |
0.348 |
kg |
|
Unit |
0.290 |
kg |
