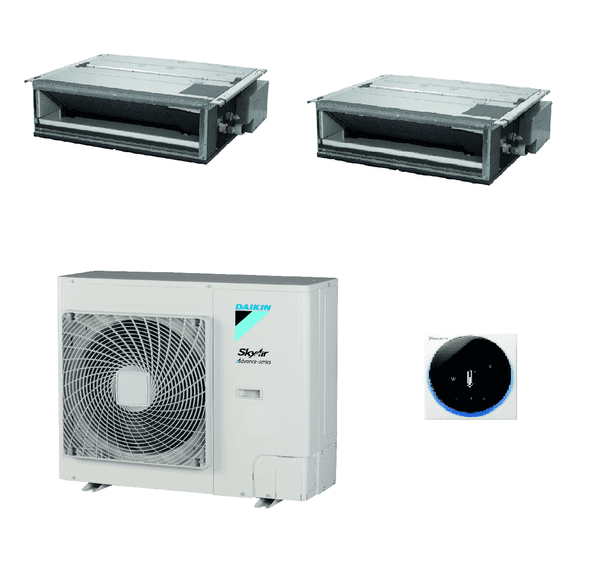

Daikin Air conditioning 2 x FDXM50F + RZAG100NY1 Twin Slim Ducted Heat pump 10Kw/34000Btu A++ R32 3 ph 415V~50Hz 85 meter pipe service. Code SB.2FDXM/RZAG100/3
Includes:
| 2 of |
FDXM50F9 |
Slim Ducted Unit - 5kW |
| 1 of |
BRC1H52W |
Madoka Remote Controller - White |
| 1 of |
KHRQ22M20T |
VRV 2-Pipe Refnet Joint |
| 1 of |
RZAG100NY1 |
Sky Air Alpha-series 10Kw 3ph 85m |
A++ rated energy product
Perfect for areas where you want concealed air conditioning. Units can be seated above a ceiling for hidden temperature control. Daikin air conditioning's DC inverter swing compressor is very quiet in operation (3DB). The result is a reduced sized DC compressor which, in addition to providing greater performance, allows the appliance to heat up efficiently even when the outside temperature is very low. Daikin outdoor units are neat, sturdy and can easily be mounted on a roof or terrace or simply placed against an outside wall. Whisper quiet operation, down to 29dBA sound pressure level, unlike conventional systems providing greater room temperature stability and comfort with limited noise. Standard built-in drain pump increases reliability of the drain unit and reduces the use of external condensate pumps. Discretely concealed in the ceiling, only the suction and discharge grilles are visible. Low energy consumption thanks to DC fan motor

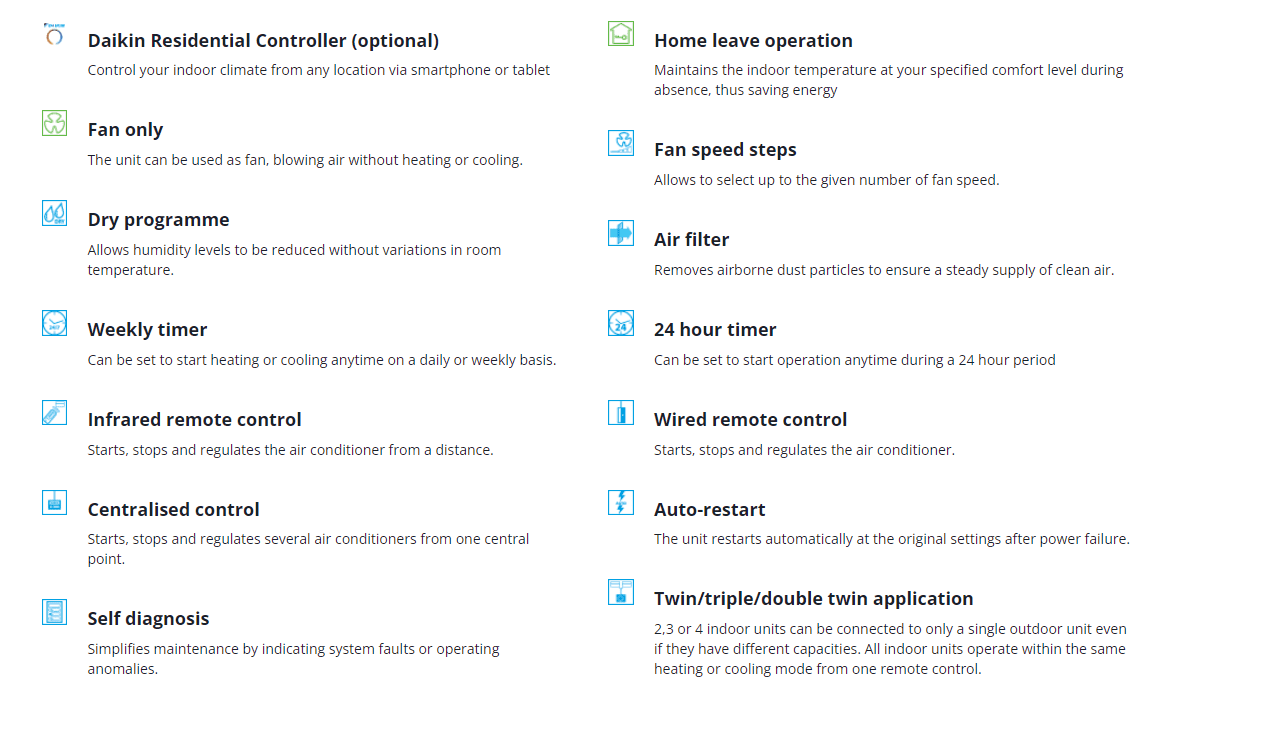

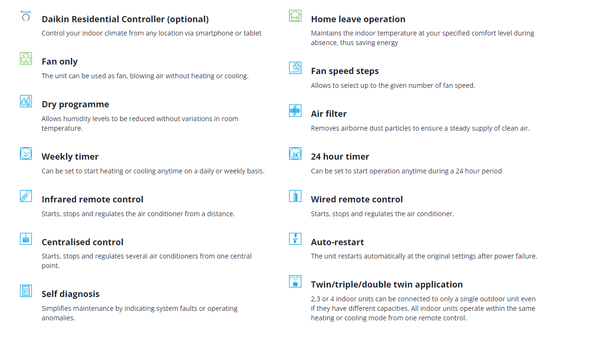

Key Product Features:
- Compact dimensions, can easily be mounted in a ceiling void of only 240mm
- Low energy consumption thanks to DC fan motor
- Medium external static pressure up to 40Pa facilitates unit use with flexible ducts of varying lengths
- Invisible unit as the unit is concealed in the ceiling: only the suction and discharge grilles are visible
- Unified indoor unit range for R-32 and R-410A
- Auto cleaning filter option ensures maximum efficiency, comfort and reliability by regular filter cleaning
- Multi zoning kit allows multiple individually-controlled climate zones to be served by one indoor unit
- Voice command via Amazon Alexa or Google Assistant to control main functions such as set point, operation mode, fan speed, etc
- Daikin Residential controller (optional): control your indoor from any location with an app, via your local network or internet.
Technical Data:
FDXM50F
| Dimensions |
Unit |
Depth |
620 |
mm |
|
|
Height |
200 |
mm |
|
|
Width |
1,150 |
mm |
| Fan |
Air flow rate |
Cooling |
High |
15.8 |
m³/min |
|
|
|
Medium |
14.6 |
m³/min |
|
|
|
Low |
13.3 |
m³/min |
|
|
Heating |
High |
15.8 |
m³/min |
|
|
|
Medium |
14.6 |
m³/min |
|
|
|
Low |
13.3 |
m³/min |
|
External static pressure |
Nom. |
40 |
Pa |
| Piping connections |
Drain |
VP20 (I.D. 20/O.D. 26) |
|
|
Gas |
OD |
12.70 |
mm |
|
Liquid |
OD |
6.35 |
mm |
| Power input |
Cooling |
Nom. |
0.060 |
kW |
| Power supply |
Frequency |
50 |
Hz |
|
Phase |
1~ |
|
|
Voltage |
220-240 |
V |
| Sound power level |
Cooling |
55.0 |
dBA |
|
Heating |
Heating |
55.0 |
dBA |
| Sound pressure level |
Cooling |
High |
38.0 |
dBA |
|
|
Low |
30.0 |
dBA |
|
|
Medium |
35.0 |
dBA |
|
Heating |
High |
38.0 |
dBA |
|
|
Low |
30.0 |
dBA |
|
|
Medium |
35.0 |
dBA |
| Weight |
Unit |
28 |
kg |
RZAG100NY1
| Compressor |
Type |
Hermetically sealed swing compressor |
|
| Current |
50Hz |
Maximum fuse amps (MFA) |
16 |
A |
| Dimensions |
Unit |
Depth |
460 |
mm |
|
|
Height |
870 |
mm |
|
|
Width |
1,100 |
mm |
| Operation range |
Cooling |
Ambient |
Min. |
-20 |
°CDB |
|
|
|
Max. |
52 |
°CDB |
|
Heating |
Ambient |
Min. |
-20 |
°CWB |
|
|
|
Max. |
18 |
°CWB |
| Piping connections |
Additional refrigerant charge |
See installation manual |
kg/m |
|
Gas |
OD |
15.9 |
mm |
|
Level difference |
IU |
OU |
Max. |
30 |
m |
|
|
|
IU |
Max. |
0.5 |
m |
|
Liquid |
OD |
9.52 |
mm |
|
Piping length |
OU |
IU |
Max. |
85 |
m |
|
|
System |
Equivalent |
100 |
m |
|
|
|
Chargeless |
40 |
m |
| Power supply |
Frequency |
50 |
Hz |
|
Phase |
3~ |
|
|
Voltage |
380-415 |
V |
| Refrigerant |
Charge |
3.20 |
kg |
|
GWP |
675 |
|
|
Type |
R-32 |
|
| Sound power level |
Cooling |
66 |
dBA |
| Sound pressure level |
Cooling |
Nom. |
47 |
dBA |
|
Heating |
Nom. |
50 |
dBA |
| Weight |
Unit |
85 |
kg |
Accessories:
|
BRP069C81 Wi-Fi adapter for use with Daikin ONECTA App
|
|
BRC1H52W Wired touch screen remote controller - White (Included as standard)
|
|
BRC1H52S Wired touch screen remote controller - Silver
|
|
BRC1H52K Wired touch screen remote controller - Black
|
|
BRC4C65 Wireless remote controller
|
|
K.CGM Condensing unit guard (1150 x 1150 x 650)
|
|
K.CGS Condensing unit guard (750 x 1050 x 460)
|
|
K.CWB90-2 Wall bracket (90kg, 500mm support arm)
|
|
K.DT1 Condensate drip tray for use with K.CWB90-2
|
|
K.RSS Wireless room mounted temperature sensor and receiver
|
|
KLIC-DI KNX Interface for Sky Air and VRV systems
|
|
KRCS01-4 Remote room mounted temperature sensor
|
|
KRP4A53 and UK.FB2 Unit/group adaptor PCB for remote on/off, status
indication and temperature setting
|
|
RS-SE Service and configuration tool for K.RSS
|
|
RTD-10 and UK.FB2 Enhanced function PCB for Sky Air and VRV. Duty
rotation, Lead Lag control and heating interlock
|
|
RTD-20 and UK.FB2 Energy control PCB for Sky Air and VRV
|
|
RTD-NET and UK.FB2 Modbus interface PCB for Sky Air and VRV
|
|
UK.RAC5 Return Air Plenum for FDXM25/35F9
|
|
UK.RAC7 Return Air Plenum for FDXM50F9 and FDXM60F9
|
|
UK.SAF5 Supply Air Plenum for FDXM25/35F9
|
|
UK.SAF7 Supply Air Plenum for FDXM50F9 and FDXM60F9
|
