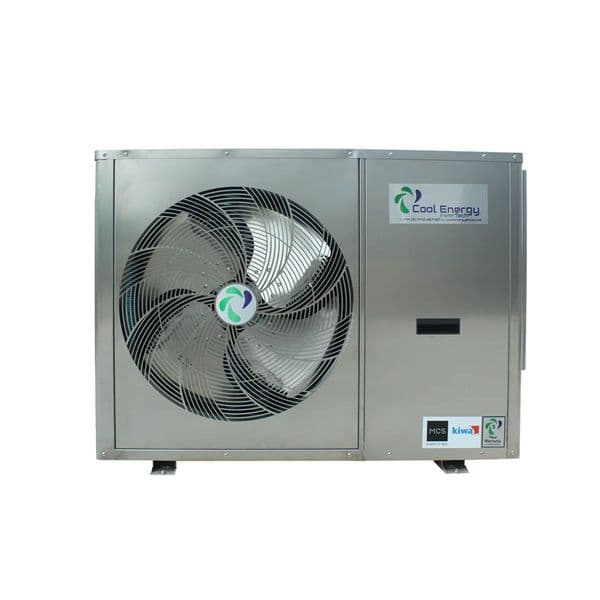

Cool Energy CE-iVT9PP300 inverTech Air Source Heat-pump 4.3kW-9.5kW 300 Litre Tank Installation Kit Dressed Tank Low noise 220V-240V/50HZ for home, light commercial, DHW, under floor and many more applications
Installation Kit Includes:
- Cool Energy CE-iVT9 inverTech Air Source Heat-pump Grundfos Pump R32 4.3kW-9.5kW Low noise 220-240V 50Hz single phase
- 300 Litre High Quality INOX Stainless Steel Unvented Pre-Plumbed / Wired Cylinder
- CE-B60 Stainless Buffer Tank (With internal expansion) Wall / Floor Mountable
- 25L Inhibited Glycol
- 28mm Intaklean System Filter
- CAT6 Data Link Cable
- 600mm Flexi Feet plus fixings
- 500mm Pre-insulated Flexi Hoses
- Filling Loop + Pressure Gauge
This is a complete system designed for installation in a house or light commercial use. The Cool Energy air source heat pump units feature a Stainless Steel Casing, a Panasonic DC inverter compressor which offer Heating & Cooling functions and a titanium heat exchanger for a longer life expectancy. The unit comes with a programmable intelligent Carel control system and auto restart for critical applications. The Cool Energy CE-iVT10-EVI has a built in Grundfos water pump with Smart PWM control which allows it to be installed in any system configuration.
Heat Pump Key Product Features:
- Stainless Steel Casing
- Panasonic DC Inverter Compressor
- Intelligent Carel Control System
- Precision Carel Electronic Expansion Valve
- Smart Weather Compensation
- Super Quiet DC Inverter Fans
- Built in Grundfos Pump with Smart PWM control
- BMS control functions available
- Wi-Fi control and management available
- Cascade any number of units
- Heating & Cooling functions
- SAP / PCBD Listed
- 5 Year Warranty
Specifications:
|
Model
|
CE-iVT9
|
|
Heating Capacity Min./Max. @A7 / 35°c Water
|
4.37kW - 9.51kW
|
|
Heating Capacity Min./Max. @A7 / 45°c Water
|
4.11kW - 8.93kW
|
|
Heating Capacity Min./Max. @A-3 / 35°c Water
|
3.89kW - 7.83kW
|
|
Heating Capacity Min./Max. @A-3 / 45°c Water
|
3.38kW - 7.33kW
|
|
Cooling Capacity Min./Max. @A25 / 7°c Water
|
3.90kW - 8.48kW
|
|
SSHEE / SCOP (A7 / W35°c - A7 / W55°c EN14825 TUV Certified)
|
A+++ / 4.68 - A++ / 3.24
|
|
Power Supply
|
220V-240V/50HZ
|
|
Rated Input Current
|
10.2A
|
|
Max. Input Current
|
14.8A (16A Type C MCB)
|
|
Max. Outlet Water Temp
|
60°c (55°c Set-point)
|
|
Minimum Water Flow Rate
|
1m3/h
|
|
Refrigerant/Weight
|
R410A/1600g
|
|
Noise Rating (Average Sound Pressure EN12102)
|
46dB(A)
|
|
Noise Rating (Average Sound Power EN12102)
|
60dB(A)
|
|
Water Pressure Drop
|
20KPa
|
|
Water Pipe Connection
|
1” BSP
|
|
Max Water Pressure
|
1.0 MPa
|
|
Net Weight
|
88 KG
|
|
Size
|
W 1110 / H 810 / D 475 (mm)
|
