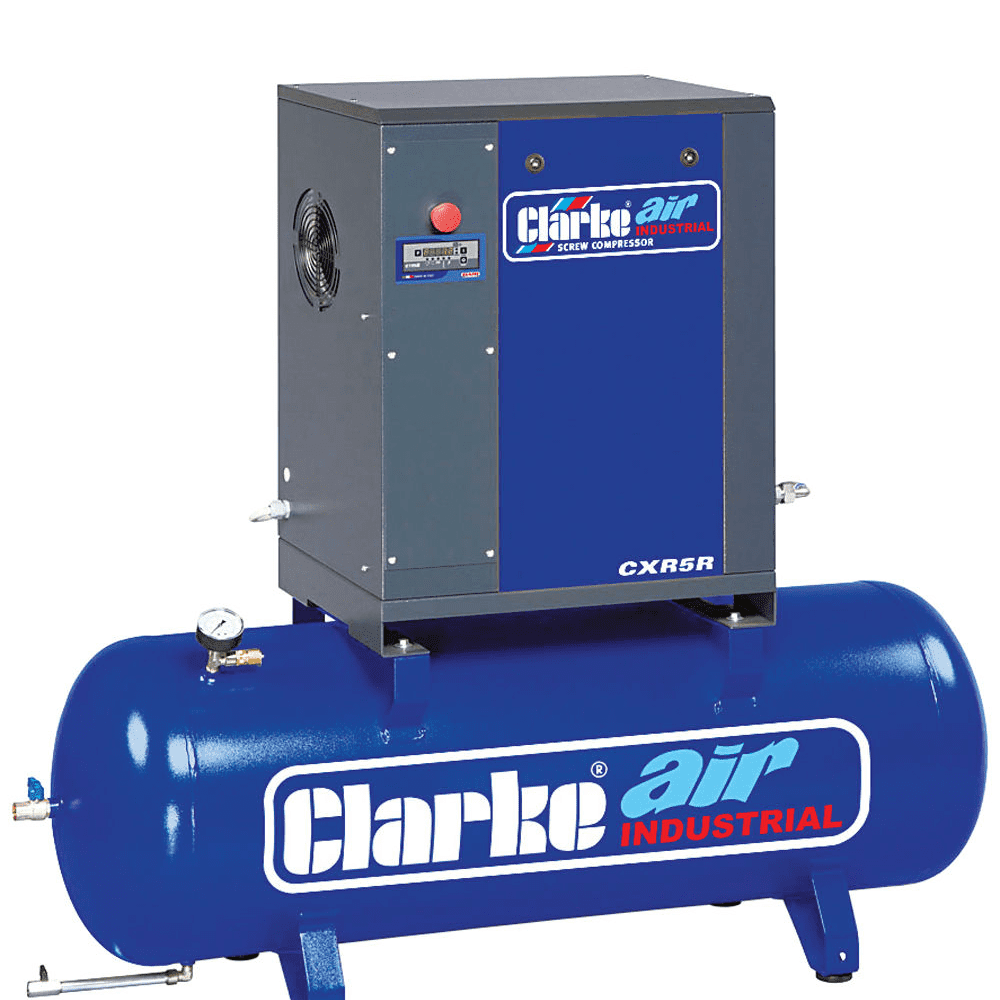

The Clarke CXR5R Industrial Screw Air Compressor, equipped with a 5.5hp motor and a 200-liter receiver, is designed for efficiency and ease of use in various industrial settings. Delivering a solid performance with a free air delivery rate of 17.1cfm and operating at a maximum pressure of 10 Bar, this unit boasts a compact design that not only saves space but also enhances portability. It can be easily transported using a pallet truck and connects seamlessly to your existing air system and electrical supply, making installation straightforward and hassle-free.

Featuring an array of advanced technical features, the CXR5R is built to optimize energy and operational efficiency. An electro-pneumatic system minimizes pressure waste when the unit is not in use, while a durable Poly-V belt drives the system with minimal maintenance requirements. Temperature control is managed by a thermostatically controlled fan, ensuring the unit remains cool during operation. This helps maintain the compressor's low noise level of just 60 dB(A), which is quiet enough to allow for placement near workspaces without causing disruptions.

Additionally, the Clarke CXR5R has been engineered with user-friendly maintenance in mind. It features wide front and rear paneling for easy access during service. The incorporation of an oversized suction filter significantly enhances air intake filtration, reducing the frequency of maintenance and extending the life of both the oil and the compressor. This combination of advanced features and practical design makes the CXR5R an ideal solution for professionals seeking a reliable and efficient air compressor for their industrial applications.

Technical Features:

• Free Air: 17.1 cfm
• Max. Pressure: 10 Bar
• Receiver: 200 Litres
• Motor kW/HP: 4 (5.5)
• Volts/Phase: 400/3
• Noise Level dB (A): 60
• Multi-function back-lit display
• Automatic re-start after power failure
• Cooling fan temperature control
• Dims (LWH): 1440 x 510 x 1280mm
• Weight: 151kg
