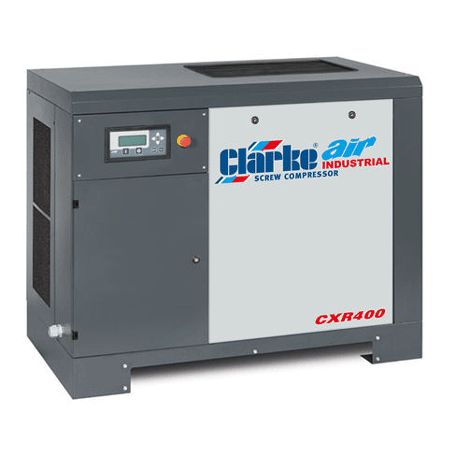

Introducing the Clarke CXR400N Industrial Screw Air Compressor, a reliable solution designed to meet the rigorous demands of industrial environments. Driven by a robust 40hp motor and boasting a capacity of 148cfm at 145psi/10bar, this compressor delivers consistent performance across a range of applications. Featuring a compact design, the CXR400N maximises space efficiency while ensuring straightforward installation. Its compatibility with pallet trucks facilitates easy transportation, while simple connections to air systems and electrical supplies ensure swift setup and minimal downtime.

Equipped with an advanced controller featuring a backlit display, this compressor offers comprehensive monitoring and control functionalities. From its weekly programmable timer to remote control capabilities and auto-restart functionality after power failures, it enhances operational efficiency. Maintenance planning, real-time monitoring of compressor and fan status, oil temperature regulation, and alarm logging further ensure seamless operation.

Technical features such as an electro-pneumatic system optimise energy usage by conserving pressure during idle periods. The inclusion of a Poly-V belt ensures durability and reduces maintenance requirements. A thermostatically controlled fan maintains optimal cooling, effectively reducing noise levels for quieter operation. Additionally, wide front and rear panelling facilitate easy access for maintenance tasks. An oversized suction filter ensures maximum air intake filtration, minimising maintenance needs and extending the compressor's lifespan.

In terms of specifications, the Clarke CXR400N features a 40hp motor operating at 400V~50Hz. With its dependable performance and user-friendly design, this compressor is poised to enhance efficiency and productivity in industrial environments.

Key Features:

• Large oil separator tank ensures minimal oil carry over (typically as low as 3mg/m3)
• Minimum pressure valve ensures correct oil pressure & lubrication
• Thermostatic valve controls oil temperature and prevents condensation developing inside the oil separator tank
• Suction valve adjusts compressor output
• Over sized suction filter ensures maximum air intake filtration, thereby reducing maintenance and extending oil and compressor life
• 400V - 3 Phase Motor
• Power: 40HP/30kW
• 10bar Maximum Pressure
• 148cfm Air Displacement
• Dimensions (LxWxH): 1100x710x1100mm
• Weight: 391kg
