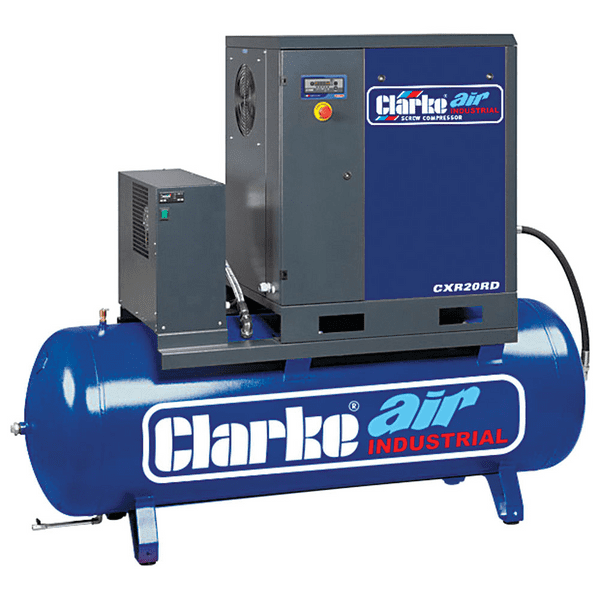

Introducing the Clarke CXR20RD industrial screw air compressor, a compact air system designed to streamline your industrial operations. With its 20hp motor and 80cfm capacity, this compressor offers reliable performance while saving valuable space. Designed for convenience, the CXR20RD is pre-mounted onto an air receiver and comes with an integral refrigerant dryer, making it a 'plug-in and go' solution for fast and easy installation. The dryer, fully connected within the package, utilizes environmentally safe R407c in accordance with EEC standards, ensuring cool and dry air output. Enhanced dryer performance is achieved by receiving cooler air from the air receiver.

Technical features abound in the CXR20RD, including an electro-pneumatic system that conserves pressure when not in use, a Poly-V belt for durability and minimum maintenance, and a thermostatically controlled fan that keeps noise levels down while ensuring optimal cooling. Wide front and rear panelling provide easy access for maintenance tasks, while effective sound-reducing panelling keeps noise levels as low as 60dB (A), allowing for operation closer to the workshop.

The compressor also features an oversized suction filter for maximum air intake filtration, reducing maintenance and extending the life of both oil and compressor. With a free air capacity of 65.3 cfm and a maximum pressure of 10 Bar, the CXR20RD is equipped to handle various industrial tasks with ease. The 500-litre receiver ensures ample air storage, while the 15 kW/20hp motor operates at 400 volts/3 phases.

Additional features include a multi-function back-lit display for comprehensive monitoring, automatic re-start functionality after power failures, and cooling fan temperature control for optimal performance. Compact yet robust, the CXR20RD measures 1980mm in length, 700mm in width, and 1630mm in height, with a weight of 436kg. With its advanced features and easy installation, the Clarke CXR20RD industrial screw air compressor is poised to elevate efficiency in industrial environments.

Key Features:

•  Large oil separator tank ensures minimal oil carry over (typically as low as 3mg/m3)
• Minimum pressure valve ensures correct oil pressure & lubrication
• Thermostatic valve controls oil temperature and prevents condensation developing inside the oil separator tank
• Suction valve adjusts compressor output
• Over sized suction filter ensures maximum air intake filtration, thereby reducing maintenance and extending oil and compressor life
• Free Air: 80 cfm
• Max. Pressure: 10 Bar
• Receiver: 500 Litres
• Motor kW/HP: 15 (20)
• Volts/Phase: 400/3
• Noise Level dB (A): 70
• Multi-function back-lit display
• Automatic re-start after power failure
• Cooling fan temperature control
• Dims (LWH): 1980 x 700 x 1630mm
• Weight: 436kg

Technical Specifications:
