This air compressor is designed for easy installation and boasts a compact design to save valuable space. Its mobility is further enhanced by compatibility with pallet trucks, allowing for effortless movement. Plus, simple connections to air systems and electrical supplies make setup a breeze.

Pre-mounted onto an air receiver and equipped with an integral refrigerant dryer, the CXR20RD ensures a 'plug-in and go' solution for fast installation. The environmentally safe refrigerant complies with EEC standards, guaranteeing cool and dry air output. The dryer's performance is optimized by receiving cooler air from the air receiver.

Technical features such as the electro-pneumatic system and Poly-V belt ensure energy efficiency and minimal maintenance. The thermostatically controlled fan keeps noise levels down while providing ideal cooling. Wide front and rear panelling allows for easy access, while effective sound-reducing panelling ensures noise levels are as low as 60dB (A), enabling operation closer to the workshop. Additionally, an oversized suction filter maximizes air intake filtration, reducing maintenance and extending the life of both oil and compressor.

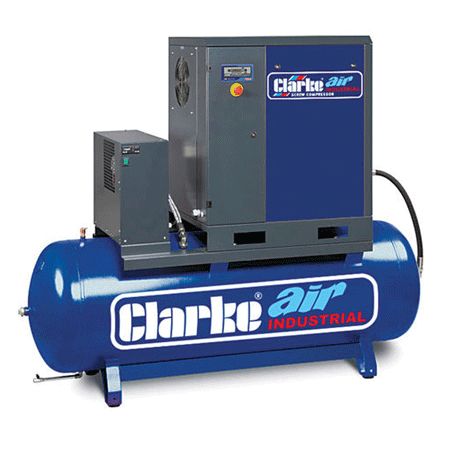

The Clarke CXR20RD industrial screw air compressor combines advanced features, compact design, and ease of installation to deliver unparalleled performance in industrial environments.

Key Features:

•  Large oil separator tank ensures minimal oil carry over (typically as low as 3mg/m3)
• Minimum pressure valve ensures correct oil pressure & lubrication
• Thermostatic valve controls oil temperature and prevents condensation developing inside the oil separator tank
• Suction valve adjusts compressor output
• Over sized suction filter ensures maximum air intake filtration, thereby reducing maintenance and extending oil and compressor life
• Free Air: 53cfm
• Max. Pressure: 10 Bar
• Motor kW/HP: 11 (15)
• Receiver: 270 litres
• Volts/Phase: 400/3
• Noise Level dB (A): 69
• Multi-function back-lit display
• Automatic re-start after power failure
• Cooling fan temperature control
• Dims (LWH): 1550 x 700 x 1510mm
• Weight: 363kg
