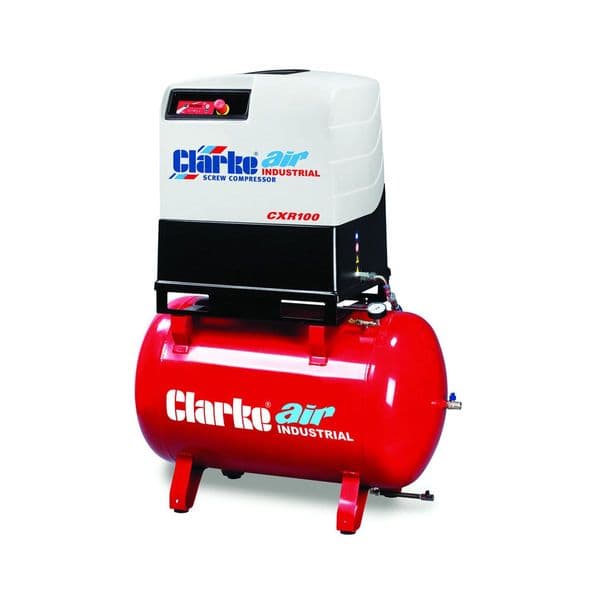

Clarke screw compressors allow for simple installation and benefits from a compact design which helps to save on space. The CXR10R is designed to be easily be moved using a pallet truck and is easily connected to the air system and electrical supply. Advanced controller with back-lit display features weekly programmable timer, remote control, auto-restart after power failure, maintenance planning, compressor and fan status, oil temperature, alarm log and inverter use percentage.

Key Features:

•  Large oil separator tank ensures minimal oil carry over (typically as low as 3mg/m3)
• Minimum pressure valve ensures correct oil pressure & lubrication
• Thermostatic valve controls oil temperature and prevents condensation developing inside the oil separator tank
• Suction valve adjusts compressor output
• Over sized suction filter ensures maximum air intake filtration, thereby reducing maintenance and extending oil and compressor life
• Free Air: 37.1cfm
• Max. Pressure: 10 Bar
• Motor kW/HP: 7.5 (10)
• Receiver: 270 litres
• Volts/Phase: 400/3
• Noise Level dB (A): 67
• Multi-function back-lit display
• Automatic re-start after power failure
• Cooling fan temperature control
• Dims (LWH): 1220 x 600 x 1500mm
• Weight: 279kg
