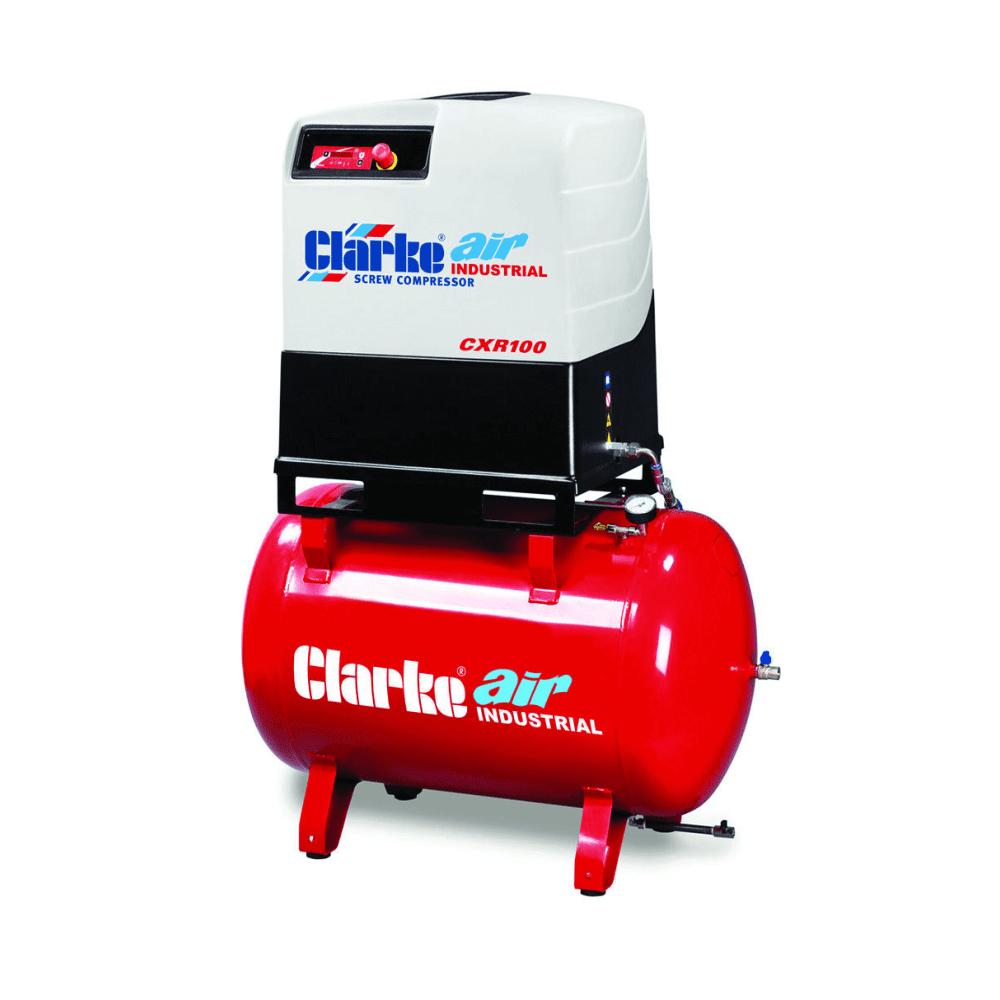

This CXR100R screw compressor merges high reliability with peak performance while minimising energy consumption. Offering cutting-edge technology, these units come at highly competitive prices, ensuring you get premium quality without overspending. Designed for ease of installation, these compressors can easily fit through a 900mm doorway and feature a compact design to save on space. They can be conveniently positioned using a pallet truck and directly connected to your air system and electrical supply, each unit is fully tested before dispatch. Additionally, they operate without vibrations, eliminating the need for floor fixing.

The advanced digital control panel is a standout feature, providing constant monitoring of crucial parameters such as air pressure, oil and motor temperature, and filter conditions. It tracks operational hours and alerts when maintenance is needed or when temperatures are excessively high, which might require the unit to shut down. The control panel also adjusts the compressor's mode of operation, whether continuous or automatic based on demand, ensuring efficiency and longevity of the unit.

Maintenance is made effortless thanks to removable side panels that allow full access to the compressor's internals. Simple screw-on oil cartridge and oil separator filters streamline the maintenance process. The compressor operates quietly at 67 dB(A), which eliminates the need for a separate enclosure and offers flexibility in placement. The build quality conforms to relevant European standards, ensuring durability and reliable performance. Technical features include a large oil separator tank for minimal oil carryover, a minimum pressure valve for correct oil pressure, a thermostatic valve to control oil temperature, and an oversized suction filter that enhances air intake filtration, reducing maintenance needs and extending the life of both oil and compressor. Technical specifications highlight a 10 HP motor, 400 volts, a 270 L receiver capacity, 37.1 cfm free air delivery, a maximum working pressure of 145/10 psi/bar, and a maximum electrical power of 7.5 kW.

Key Product Features:

• 400V - 3 Phase Motor
• Power: 10HP/7.5kW
• 270 Litre Capacity
• 10bar Maximum Pressure - 37.1cfm Air Displacement
• Pre-Mounted to air receiver
• Dimensions (LxWxH): 1200x600x1500mm
• Weight: 217kg

Technical Specifications:
