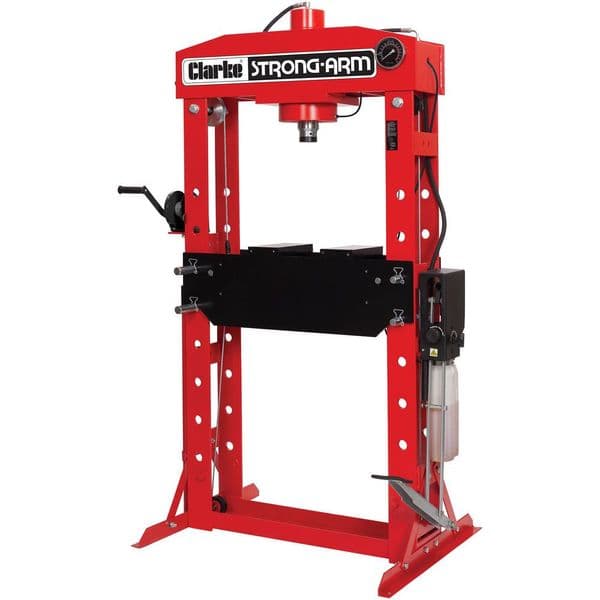

This robust 50 Tonne Floor Standing Shop Press is expertly designed for a variety of pressing tasks commonly found in garage and engineering workshops. Whether it's replacing or removing bearings, pressing ball joints, working with pulleys, pins, plates, or straightening metal work, this press is equipped to handle demanding applications. It features a smooth hydraulic action that ensures power is applied positively and precisely, enhancing the effectiveness and efficiency of every job.

The press is versatile with both hand and foot operation capabilities, complemented by a ratchet winch to adjust the bed height for optimal positioning of materials. Its maximum throat width is 710mm between the main vertical supports, and it boasts a substantial throat depth of 950mm between the ram and pressing plate. The maximum ram travel is 265mm, allowing for deep presses and thorough engagement with the workplace.

Designed for heavy-duty use, the press comes complete with a hydraulic pump, ram, hoses, a large and easily readable pressure gauge, and V-blocks to accommodate a variety of shapes and tasks. The overall dimensions are 1300mm deep by 800mm wide (excluding the pump) and 1960mm in height, making it a significant yet manageable addition to any workspace. Please note that a screen is available as an optional extra and is not included with the press. This shop press is a must-have for those who need reliable, precise pressure application in their metalworking and maintenance tasks.

Key Features:

• Pressure capacity: 50 Tonnes
• Hand and foot operation ram, ratchet winch for adjusting bed height
• Max throat width: 710mm (between main vertical supports
• Max throat depth: 950mm (between the ram and pressing plate)
• Max ram travel: 265mm
• Supplied complete with hydraulic pump, ram, hoses, pressure gauge & V blocks
• Overall dimensions (DxWxH) 1300 x 800 (exc pump) x 1960mm
• Screen is optional extra NOT included

Technical Specification:
