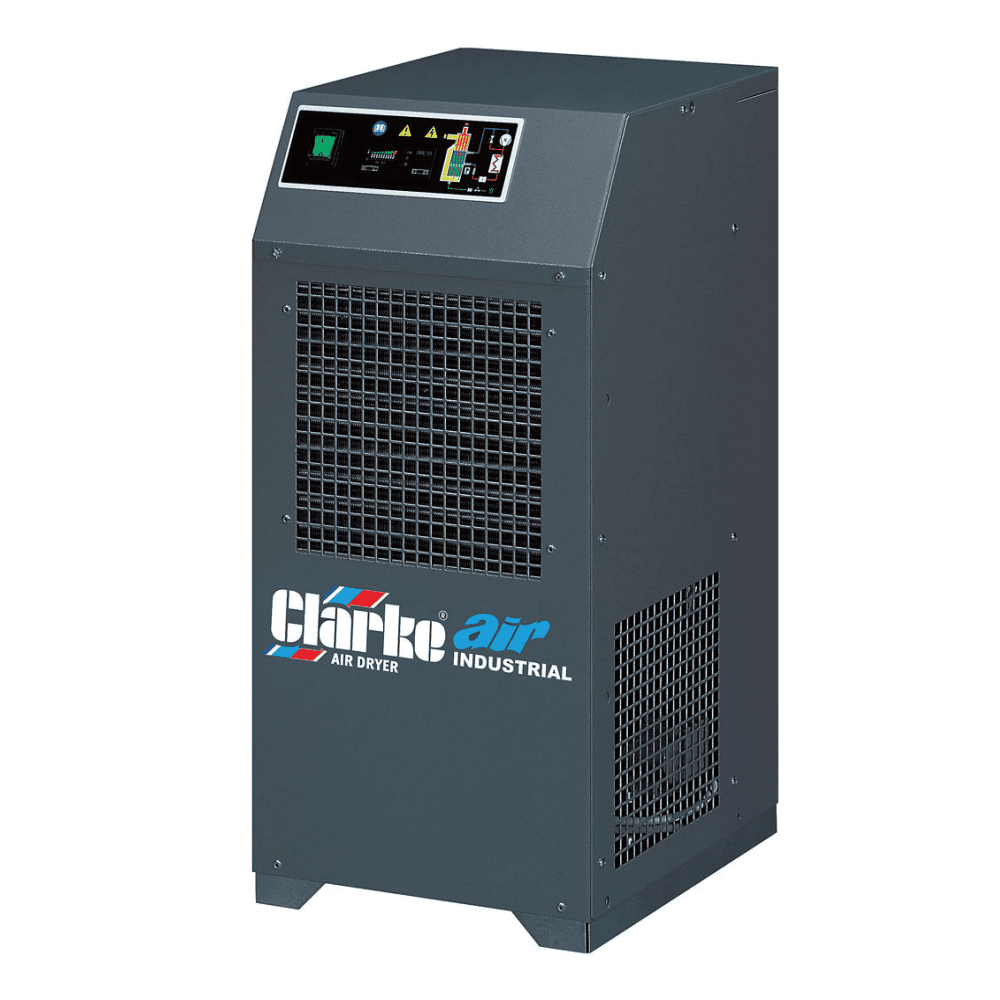

The Clarke CRD80 Refrigerant Air Dryer stands out as a top choice for industrial and process applications that require consistently dry compressed air. This unit boasts a high-performance combination heat exchanger that enhances efficiency and reliability by featuring fewer pipe joints. Additionally, it is equipped with simple controls, a clear display, and low pressure losses, all contributing to impressive energy consumption figures. Specifically engineered to remove humidity from compressed air through an effective cooling process, the CRD80 ensures your air supply is dry and stable.

In terms of design, the CRD80 features a unique construction that enhances user-friendliness and maintenance efficiency. The panels of the dryer are designed to be easily removable, which simplifies the processes of inspection and maintenance, allowing for routine upkeep without significant downtime or effort.

On the technical front, the CRD80 offers robust specifications that meet the demands of rigorous industrial use. It operates on 230 volts with a free air flow capacity of 283 cfm at 35 degrees Celsius and 7 bar pressure. The maximum working pressure is robust at 232 psi or 16 bar, and the inlet/outlet configuration is a 1½" male connection. With a nominal electrical power draw of just 0.93 kW, this air dryer combines high efficiency with low energy consumption, making it an economical choice for any setting requiring dry air.
