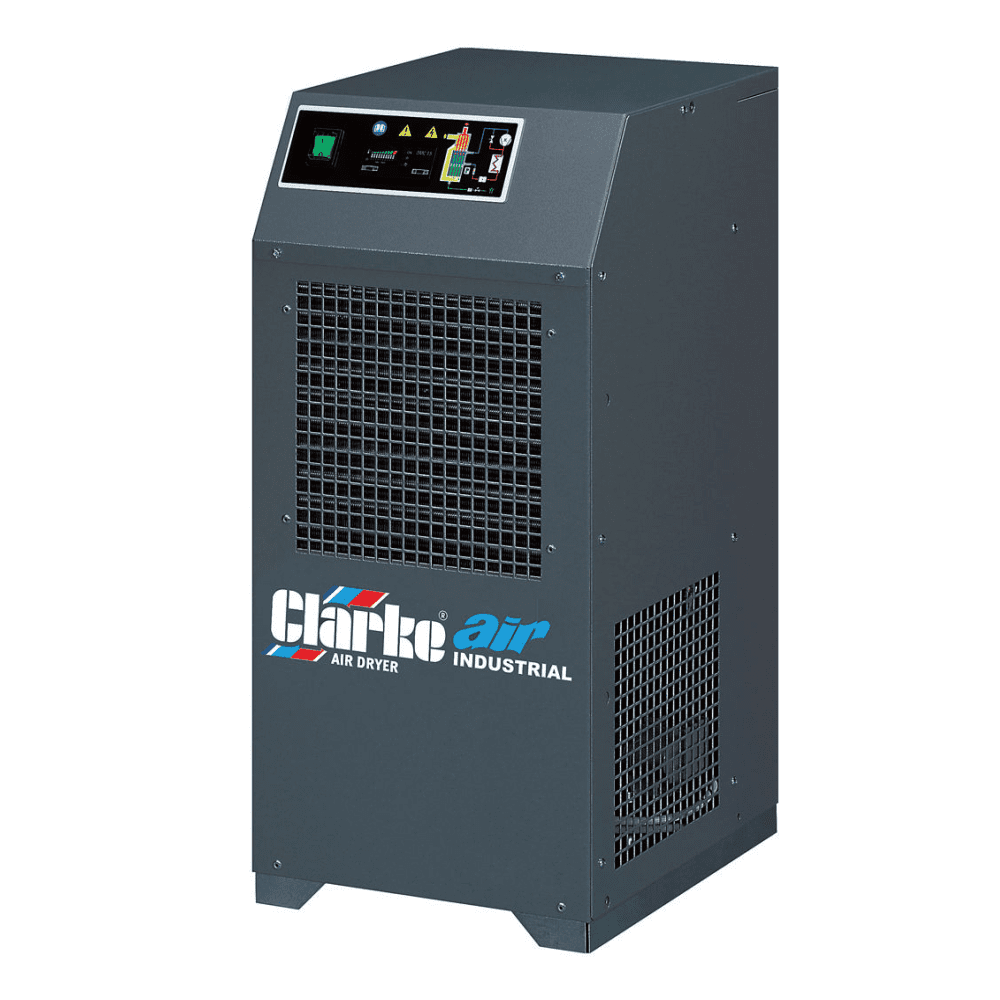

The Clarke CRD63 Refrigerant Air Dryer is meticulously engineered for industrial applications requiring dry compressed air, such as manufacturing and processing facilities. It operates effectively with a free air delivery rate of 223 cfm at 35°C and 7 bar, within a system that supports up to 16 bar of maximum pressure. The unit features a highly efficient combination heat exchanger designed to enhance performance while minimizing potential points of failure with fewer pipe joints. This design not only ensures reliability but also aids in maintaining low pressure losses, which improves overall energy consumption figures.

User-friendliness is at the forefront of the CRD63 design, incorporating simple controls and a clear display that facilitate easy operation and monitoring. The dryer operates on a standard 230V single-phase supply and draws a nominal electrical power of just 0.82 kW, making it both powerful and economical. The process it employs cools and removes humidity from compressed air, effectively preventing moisture-related damage and downtime in sensitive equipment and tools.

Maintenance is straightforward with the CRD63, thanks to its thoughtfully designed structure. All panels can be easily removed, providing quick access for routine inspections and any necessary maintenance tasks. This accessibility, combined with its compact dimensions of 580x535x910mm and a weight of 73 kg, makes the CRD63 an excellent choice for businesses looking to optimise their operations with reliable and efficient air drying solutions.

• Free air @ 35°C / 7bar: 223cfm
• Volts/Phase/Hertz: 230/1/50
• Maximum Pressure: 16 bar
• Inlet/Outlet (Female): 1½"
• Nominal electrical power (kW): 0.82kw
• Dimensions: 580x535x910mm
• Weight: 73kg
