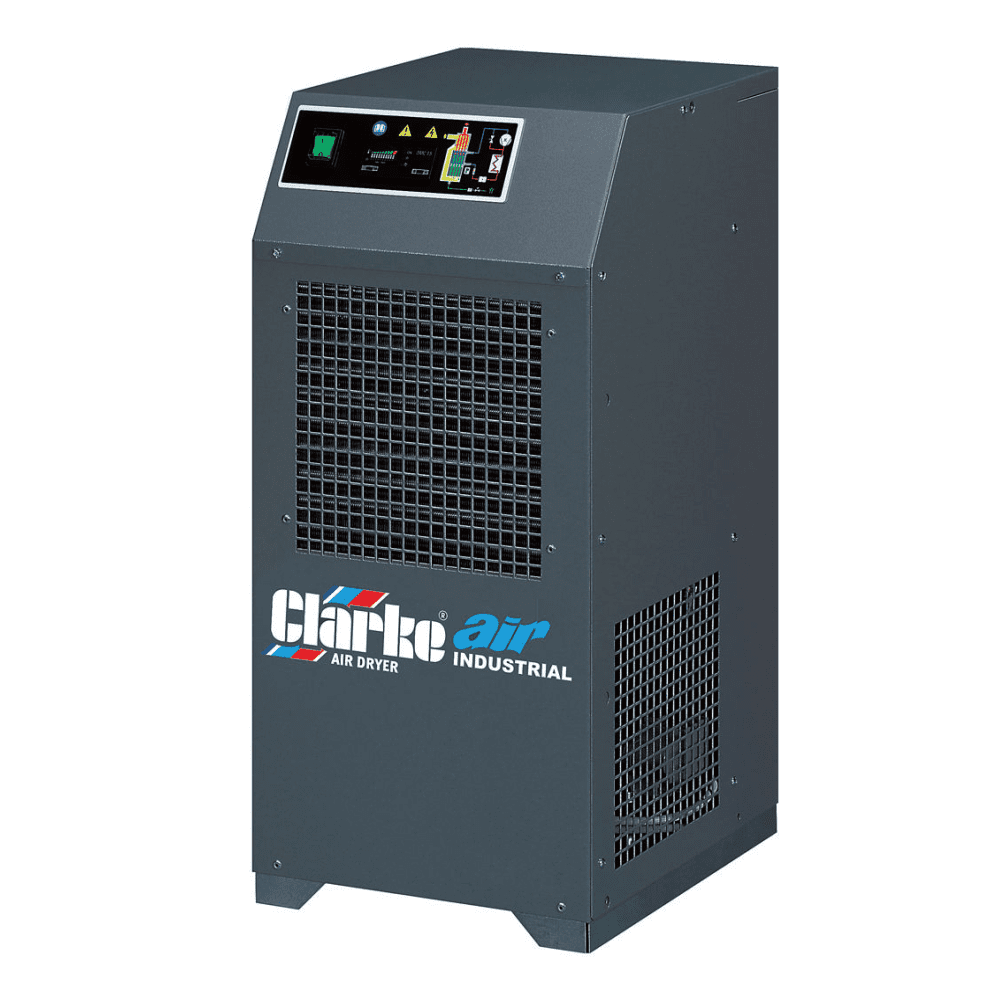

The Clarke CRD52 Refrigerant Air Dryer is an indispensable tool for industrial and processing applications where dry compressed air is essential. It incorporates a high-performance combination heat exchanger that maximizes efficiency while minimizing the number of pipe joints, enhancing the unit's reliability. This system is adept at removing humidity from compressed air through an efficient cooling process, ensuring that air tools and processes function optimally without moisture interference. The unit's design also features simple controls and a clear display for easy operation, complemented by low pressure losses which improve overall energy consumption.

In terms of maintenance, the CRD52 has been thoughtfully engineered with accessibility in mind. Its panels are easily removable, simplifying the process of inspection and maintenance and thereby reducing downtime in demanding industrial settings. This user-friendly design ensures that maintaining peak performance is straightforward and hassle-free.

Technically, the CRD52 is robust, featuring a maximum air flow of 184 cfm at a temperature of 35°C and pressure of 7 bar, with a maximum working pressure capability of 232 psi (16 bar). It operates efficiently on a standard 230V, single-phase, 50Hz power supply and consumes a modest 0.72 kW of power. The dryer's compact dimensions (580x535x910mm) and light weight (73kg) make it ideal for various settings, ensuring that it can be easily accommodated within existing systems without requiring extensive space.

• Free air @ 35°C / 7bar: 184cfm
• Volts/Phase/Hertz: 230/1/50
• Maximum Pressure: 16 bar
• Inlet/Outlet (Female): 1½"
• Nominal electrical power (kW): 0.72kw
• Dimensions: 580x535x910mm
• Weight: 73kg
