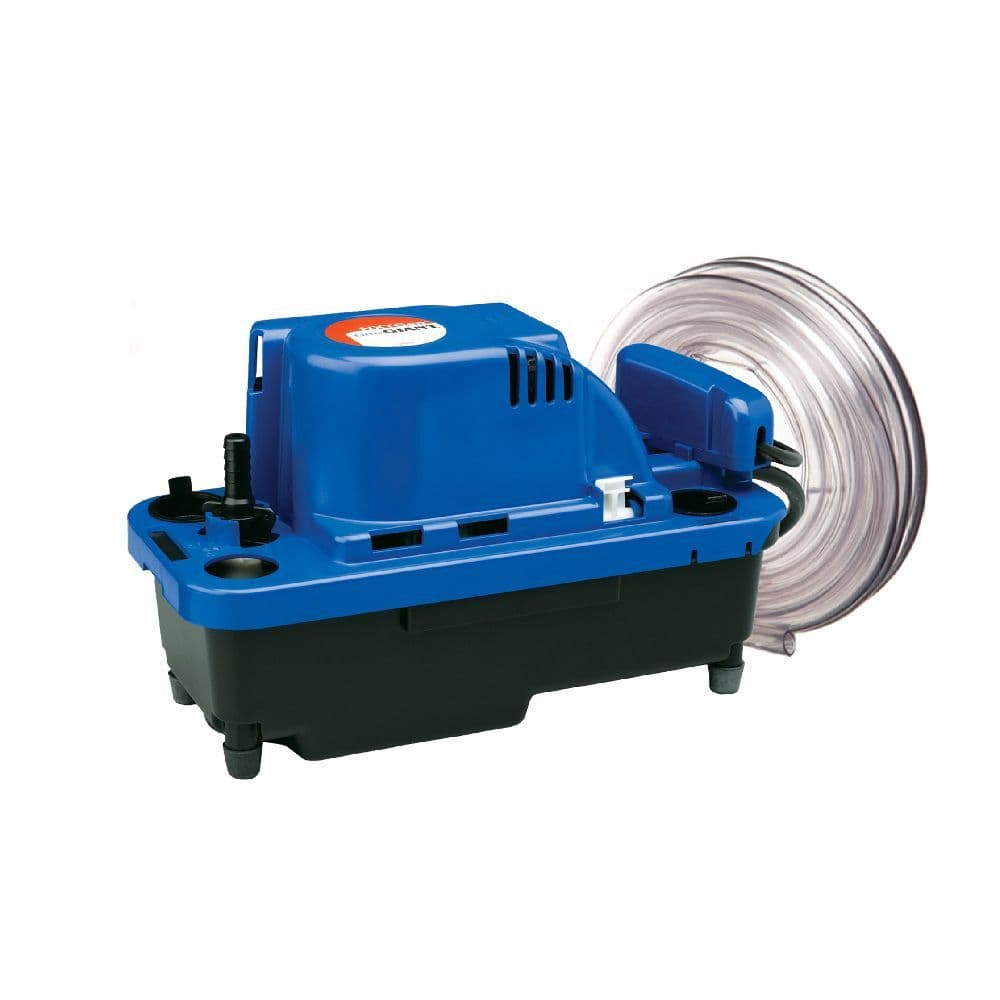

Boiler Condensate Pump VCMX-20STA With 6 Metres Of 3/8″ ID Flexible Hose 240V~50Hz
Centrifugal tank pump designed to remove condensate water from air conditioners, refrigeration equipment, boilers and de-humidifiers. Engineered with contractor input the NXTGen is designed to outsmart, outlast and out-perform other condensate pumps. This pump is supplied with 6 metres of 3/8″ ID flexible hose and comes with an adaptor for a 22mm diameter waste pipe.
Key Product Features:
• 1/4 turn easy service check valve (both 3/8″ and 1/4″ supplied with the pump)
• Suitable for 2.8pH boiler condensate.
• 6 metres of 3/8″ ID flexible drain hose.
• External test / run switch.
• Rubber feet to absorb vibration.
• Quick fit metal bracket.
• Max flow rate 284 LPH.
• Max head 4.8 metres.
Technical Data:
|
Model
|
Tank Capacity
|
Drink Cycle
|
On Level
|
Off level
|
Reserve Before Overflow
|
Alarm Level
|
|
VCMX-20-STA
|
1.9 Litres
|
350 ml
|
42 mm
|
27.5 mm
|
460 ml
|
58.5 mm
|
|

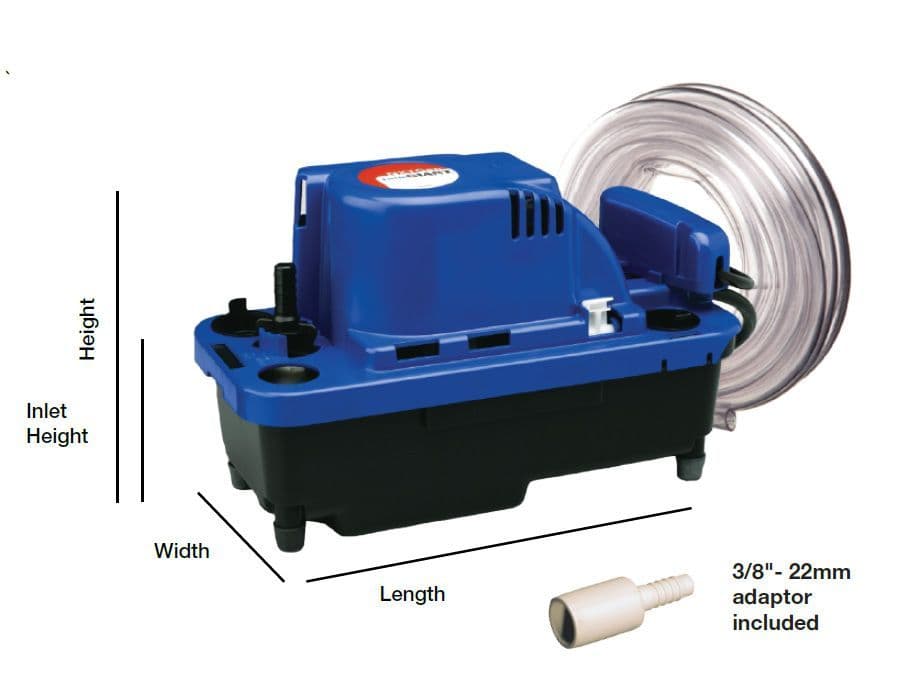

Height
|
165 mm
|
|
Inlet Height
|
86 mm
|
|
Length
|
260 mm
|
|
Width
|
122 mm
|
|
Weight
|
1.9 kg
|
|
Cable Length
|
1.8 m
|
|
Max Flow
|
284 LPH
|
|
Max Shut Off
|
4.8 m
|
|
Discharge Size
|
3/8"
|
|
PSI
|
9.1
|
|
Watts
|
75 W
|
|
Amps
|
0.6 A
|
|
Volts
|
230 V
|
|
Hz
|
50/60
|
|
High Level Alarm
|
48V / 5A
|
