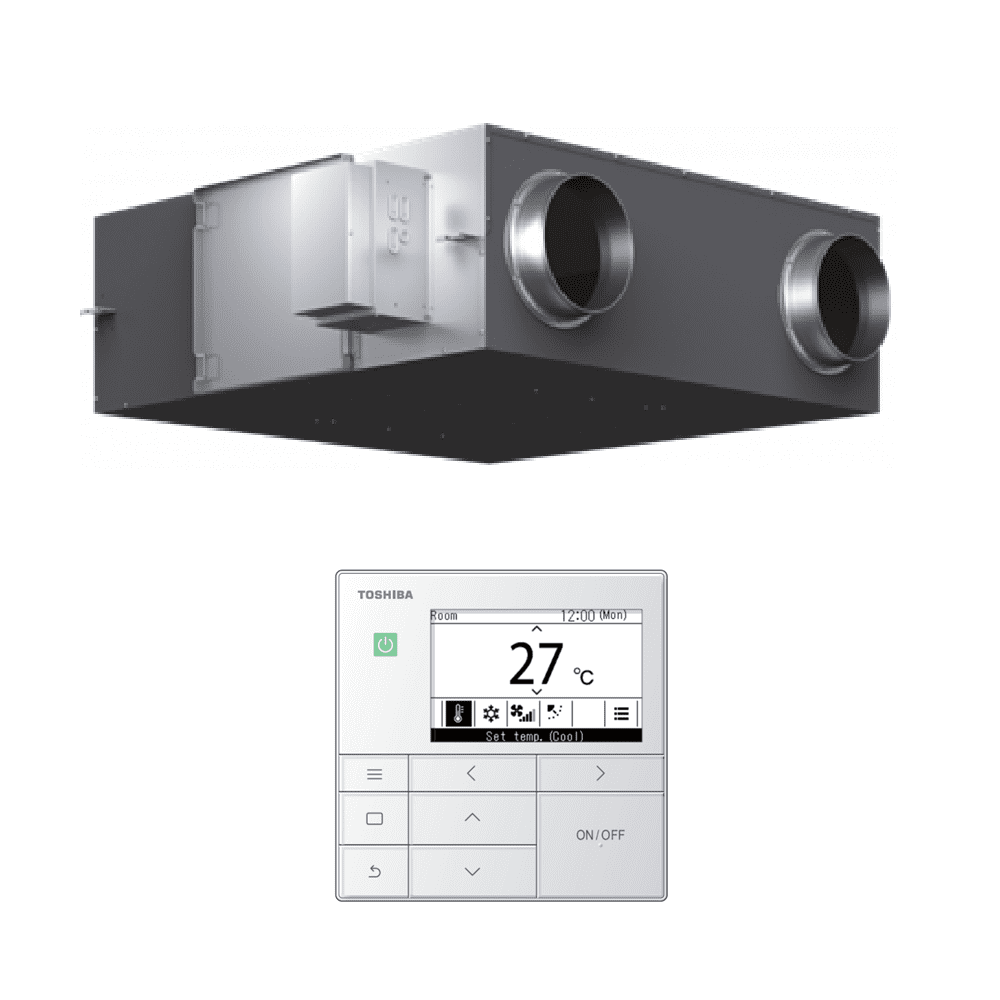

Indoor air quality has become a priority in commercial and residential environments. From offices and schools to healthcare facilities, retail premises and hospitality settings, modern buildings require ventilation systems that balance fresh air intake with minimal energy loss. The Toshiba VN Series Air-to-Air Heat Exchangers are designed precisely for this purpose. Using exhaust air to pre-condition incoming fresh air, they help maintain stable indoor conditions, reduce heating and cooling demand and support healthier, more energy-efficient buildings.
The VN Series is available in nine models, ranging from compact 150 m³/h units through to powerful 2000 m³/h systems suitable for large commercial spaces. All units share a common design philosophy: low energy consumption, quiet operation, wide installation flexibility and impressive thermal recovery performance. Whether integrated into a multi-room HVAC setup or used as a standalone fresh air solution, the VN Series is engineered to meet ENTR Lot 6 Tier 2 efficiency requirements while offering installers a highly adaptable, dependable ventilation option.
Designed for Improved Efficiency and Indoor Comfort:
Toshiba’s Air-to-Air Heat Exchangers work by capturing waste heat from outgoing air and transferring it to the incoming fresh air stream. The result is a dramatic reduction in the workload placed on air-conditioning or heating equipment. In winter, incoming air is pre-heated using recovered heat; in summer, incoming air is partially cooled. This technology can reduce overall HVAC energy consumption and qualify as an energy-efficiency improvement in commercial building projects.
All Toshiba VN units operate on R32-compatible system control logic, allowing seamless integration into Toshiba’s wider light commercial range. They also include expanded operating temperature parameters, ensuring year-round performance even in demanding ambient conditions (from –20°C outdoor up to +50°C depending on model).
The VN Series uses a new DC fan motor to optimise volume control, static pressure and airflow efficiency. The redesigned chassis provides enhanced airflow pathways, improved internal insulation and low-noise operation, making it suitable for quiet environments such as schools, libraries or meeting rooms.
Another standout feature is the option to integrate a CO₂/PM air quality sensor, enabling ventilation rates to automatically increase when indoor air quality falls below target levels. Indoor air quality data can be displayed on Toshiba’s wired controllers (RBC-AMSU52-E or RBC-AWSU52-E), offering facilities managers clearer insights into air performance and occupant comfort.
Ideal Applications Across Commercial, Residential and Public Buildings:
Thanks to airflow options from 150 m³/h to 2000 m³/h, the VN Series is highly adaptable across a wide range of building types. Smaller models such as the U00151SY-E are ideal for private apartments, small offices, meeting rooms and domestic ventilation refits. Intermediate units like the U00351SY-E and U00651SY-E suit medium-sized offices, retail spaces, classrooms and consulting rooms. The high-capacity models, U01001SY-E, U01501SY-E and U02001SY-E, are designed for large commercial settings, including gyms, cinemas, hospitality buildings, student accommodation blocks and multi-zone office environments.
The VN Series is equally suitable for new-build projects or the refurbishment market. Toshiba’s design allows for easy installation into ceiling voids with multiple duct connection configurations, including 200 mm, 150 mm and 250 mm duct inlets depending on the model. Additionally, the system can be paired with optional weatherproof housings, allowing rooftop or semi-outdoor installation where plant space is limited.
Full Technical Overview – Toshiba VN Heat Exchangers (All Models):
| Model | Price | Operating Range (Around Unit) | Outdoor Air Range | Return Air Range | Air Volume (Extra-H/M/L) m³/h | External Static Pressure (Extra-H/M/L) Pa | Sound Pressure (H/M/L) dB(A) | Temp Exchange Efficiency (High Flow) % | Enthalpy Efficiency (High Flow) % | Dimensions (HxWxD) mm | Weight kg | Duct Size (Supply/Return) mm | Power Supply |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| U00151SY-E | £1,353 | –15 to 50 | –20 to 52 | 5 to 40 | 150-120-90-60 | 90-60-43-25 | 28-25-22-20 | 83.5 | 80.0 | 278×735×778 | 29 | 100×2 / 100×2 | 220/240-1-50 & 3(10) |
| U00251SY-E | £1,386 | –15 to 50 | –20 to 52 | 5 to 40 | 250-200-150-100 | 75-53-30-15 | 28-27-24-20 | 80.5 | 76.0 | 278×735×778 | 29 | 150×2 / 150×2 | 220/240-1-50 & 3(10) |
| U00351SY-E | £1,593 | –15 to 50 | –20 to 52 | 5 to 40 | 350-280-210-140 | 160-100-57-26 | 34-31-26-21 | 81.5 | 76.0 | 305×880×880 | 40 | 150×2 / 150×2 | 220/240-1-50 & 6(16) |
| U00501SY-E | £1,933 | –15 to 50 | –20 to 52 | 5 to 40 | 500-400-300-260 | 125-80-45-35 | 36-31-27-25 | 79.5 | 74.0 | 337×1020×920 | 47 | 200×2 / 200×2 | 220/240-1-50 & 6(16) |
| U00651SY-E | £2,151 | –15 to 50 | –20 to 52 | 5 to 40 | 650-520-390-260 | 150-100-58-28 | 39-35-30-24 | 77.5 | 72.0 | 337×1020×920 | 47 | 200×2 / 200×2 | 220/240-1-50 & 6(16) |
| U00801SY-E | £2,566 | –15 to 50 | –20 to 52 | 5 to 40 | 800-640-480-320 | 145-92-53-22 | 39-35-30-23 | 79.0 | 74.0 | 386×1230×1130 | 63 | 250×2 / 250×2 | 220/240-1-50 & 6(16) |
| U01001SY-E | £2,795 | –15 to 50 | –20 to 52 | 5 to 40 | 1000-800-600-400 | 170-110-60-30 | 41-38-33-24 | 78.5 | 73.0 | 386×1230×1130 | 63 | 250×2 / 250×2 | 220/240-1-50 & 6(16) |
| U01501SY-E | £5,766 | –15 to 50 | –20 to 52 | 5 to 40 | 1500-1280-960-560 | 150-100-53-28 | 43-38-32-25 | 75.5 | 74.0 | 778×1242×133 | 138 | 250×4 / 250×4 | 220/240-1-50 & 16(20) |
| U02001SY-E | £6,337 | –15 to 50 | –20 to 52 | 5 to 40 | 2000-1540-1100-680 | 170-100-50-23 | 45-41-34-25 | 71.5 | 73.0 | 778×1242×133 | 138 | 250×4 / 250×4 | 220/240-1-50 & 16(20) |
Accessories for the VN Heat Exchanger Series:
From the accessory tables you provided, here are all compatible options:
Controllers:
RBC-AMSU52-E Wired 24/7 schedule controller
NRC-01HE Remote controller
NRB-1HE Remote ON/OFF A2A Heat Exchanger interface
Indoor Interface Leads & Connectors:
Includes CN610, CN704, CN705, CN706 and CN80 connectors in single units or packs of 10.
Filtration & Inlet Accessories:
High Performance Filters (Epm1 55%) for VN00151 / VN00251
High Performance Filters for VN00351, VN00501, VN00651, VN00801, VN01001
Heater Kits (for frost protection):
100mm, 150mm, 200mm, 250mm heater kits depending on model
Weatherproof Housings:
Compatible housings for all VN sizes for outdoor installation
