Modern facilities are turning to Powrmatic SWQ electric infrared heating systems as a more efficient and practical solution. Infrared heating works very differently from traditional air-based heating methods. Instead of warming the air within the building, infrared heaters emit radiant heat that warms people, machinery and surfaces directly. This targeted heating approach makes infrared technology particularly effective in large commercial environments such as warehouses, factories and logistics centres.
| Model | Heat Output | BTU Output | Voltage | Phase | Construction | Typical Application |
|---|---|---|---|---|---|---|
| SWQ25/1 | 2.5 kW | 9,000 Btu | 220-240V~50Hz | 1Ph | Marine grade aluminium | Workstations, small workshops |
| SWQ50/1 | 5 kW | 18,000 Btu | 220-240V~50Hz | 1Ph | Marine grade aluminium | Warehouse packing stations, service bays |
| SWQ75/1 | 7.5 kW | 22,000 Btu | 220-240V~50Hz | 1Ph | Marine grade aluminium | Production lines, warehouse zones |
| SWQ75/3 | 7.5 kW | 22,000 Btu | 380-415V~50Hz | 3Ph | Marine grade aluminium | Industrial heating zones, factories |
Unlike warm-air systems that rely on circulating heated air throughout a building, infrared heaters transfer energy through radiant waves that travel through the air without heating it. When these waves reach objects or people, they convert into heat, delivering immediate warmth exactly where it is required. This principle is similar to the natural warmth felt from sunlight, which heats surfaces directly rather than the surrounding air.
This radiant heating approach offers several advantages in industrial buildings. Because the air itself is not heated, there is far less energy lost through ventilation or open loading doors. Heat does not accumulate at roof level as it often does with traditional systems, and workers experience warmth almost instantly when infrared heaters are switched on. As a result, infrared heating systems can significantly reduce energy consumption while improving comfort levels in the workplace.
One of the key advantages of electric infrared heating is its ability to provide zonal heating. Instead of heating the entire warehouse space, facility managers can focus heat only where employees are working. In many warehouses, only certain areas require heating at any given time, such as packing stations, production lines or dispatch zones. Infrared heaters allow these areas to be heated efficiently without wasting energy on unused parts of the building.
This targeted heating strategy can dramatically reduce operating costs. Rather than running large heating systems across the entire building, businesses can heat only the occupied work zones. This approach not only improves energy efficiency but also allows more precise temperature control in different areas of the facility.

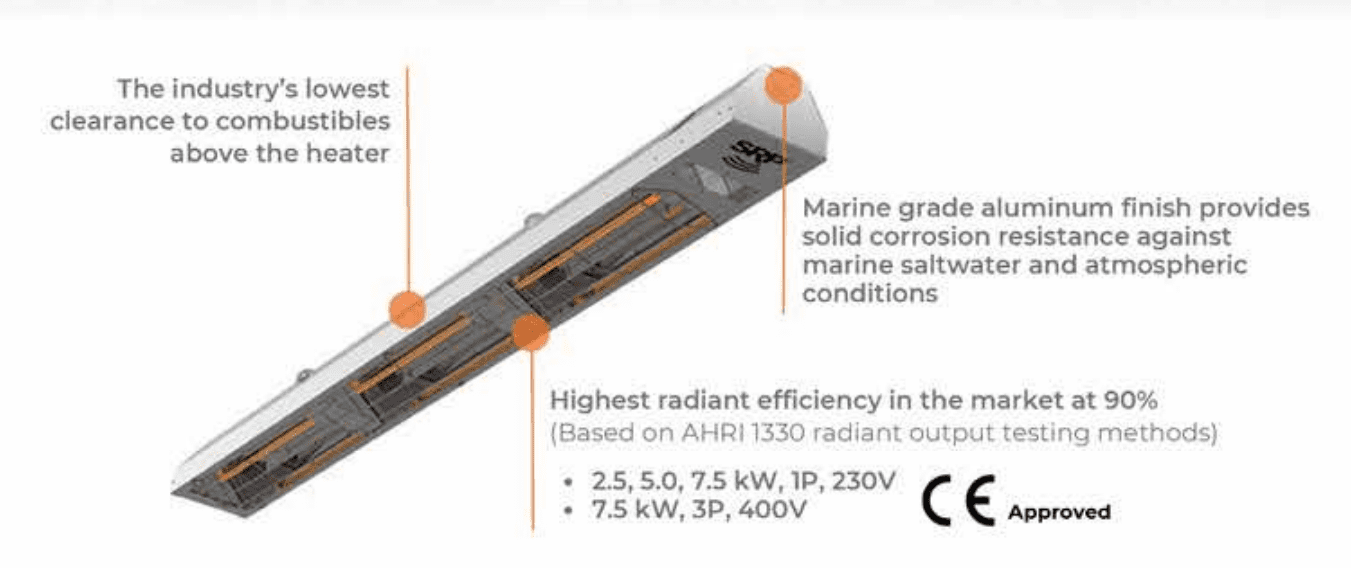

The Powrmatic sWAVE infrared heater range, including the SWQ series, has been developed specifically to meet the heating demands of industrial environments. These heaters use advanced medium-wave infrared technology to provide powerful radiant heating with very high efficiency levels. By directing heat precisely where it is required, the system ensures that workers remain comfortable even in large open buildings with high ceilings.
The SWQ heaters are constructed from marine-grade aluminium, providing excellent corrosion resistance and durability in demanding environments. This makes them suitable for a wide variety of industrial settings, including warehouses, workshops, factories and agricultural buildings. Their robust design ensures long-term reliability even in locations exposed to dust, moisture or harsh working conditions.
Another advantage of the SWQ heater range is its compact and flexible installation design. These heaters can be mounted on walls or suspended from ceilings, allowing installers to position them directly above work zones where heat is required. This flexibility makes them ideal for applications such as warehouse picking stations, assembly lines, service bays and production workstations.
Electric infrared heaters also offer an attractive solution for businesses looking to reduce their reliance on fossil fuels. As more companies move towards electrification and carbon reduction strategies, electric heating technologies are becoming increasingly popular. Infrared heaters can be powered by renewable electricity sources, helping organisations reduce their environmental impact while maintaining effective heating performance.
The SWQ heater range offers several output options to suit different building sizes and heating requirements. Smaller models are suitable for workstation heating and smaller industrial areas, while higher output units can heat larger zones within warehouses or production facilities. This flexibility allows heating systems to be tailored to the specific layout and operational needs of each building.
Another benefit of infrared heating is its rapid response time. Unlike traditional heating systems that can take considerable time to warm up a building, infrared heaters provide heat almost instantly. This makes them ideal for environments where heating is required intermittently or where work areas need to warm quickly at the start of a shift.
In addition to improved efficiency and rapid heating performance, infrared systems can also contribute to better working conditions. Because they do not rely on air circulation, they avoid the drafts and air movement commonly associated with warm-air heating systems. This can improve comfort for workers and reduce the movement of dust within industrial environments.
For warehouse operators and facilities managers seeking a reliable and energy-efficient heating solution, electric infrared heating systems offer clear advantages. By delivering heat directly to occupied areas, reducing energy waste and providing instant warmth, these systems provide an effective alternative to traditional industrial heating methods.
At Orion Air Sales, we supply the complete Powrmatic sWAVE SWQ infrared heater range, providing flexible heating solutions for warehouses, factories and commercial buildings. Whether you require localised workstation heating or zonal heating for larger warehouse areas, the SWQ range offers a powerful and efficient way to maintain comfortable working conditions in demanding industrial environments.
