Air-to-water heat pumps have matured into a genuinely practical option for UK homes and smaller commercial buildings, but the real magic happens when the heat pump and the hot water cylinder are designed to work as a matched system. The Samsung EHS monobloc ranges shown (R32 and high-temperature options including R290 up to 70°C leaving water temperature), paired with pre-plumbed DHW cylinders that include a built-in buffer, you get a combination that’s efficient, stable, and installer-friendly, which is exactly what you want in residential and light commercial properties where reliability matters as much as efficiency.
What Size Is Required For Your Project:
| Range | Refrigerant | Temperature class | Capacities shown | Phase options shown | Typical use | |
| EHS Monobloc A2W Inverter | R32 | Standard | 5kW / 8kW / 12kW / 16kW | 1ph & 3ph (selected sizes) | Residential + light commercial (general purpose) | |
| EHS High Temp Monobloc A2W Inverter | R290 | High temp (70°C class) | 5kW / 8kW / 12kW / 16kW | 1ph & 3ph (selected sizes) | Retrofit + higher leaving water temperature needs | |
| EHS High Temp Monobloc with Integral Hydro Components | R290 | High temp (70°C class) | 5kW / 8kW / 12kW / 16kW | 1ph & 3ph (selected sizes) | Packaged hydro approach; faster, consistent installs | |
| EHS High Temp Quiet Monobloc | R32 | High temp (70°C class) | 8kW / 12kW / 14kW | 1ph & 3ph (selected sizes) | Noise-sensitive residential & planning-conscious installs |
Why monobloc + cylinder + buffer is such a strong combo:
A monobloc heat pump keeps the refrigeration circuit sealed inside the outdoor unit. In plain terms: fewer on-site refrigeration connections, simpler commissioning, and a tidy installation path for many projects.
When you then pair it with a pre-plumbed DHW cylinder that includes an integrated buffer tank, you solve three common real-world issues in one go:
1) Stable operation and fewer nuisance stops
Buffer volume helps reduce rapid cycling (short on / off operation), which is often triggered by small system volumes, zoning, or fluctuating loads. In real homes and small commercial spaces (shops, offices, salons, small clinics), loads change constantly, a buffer helps smooth that out.
2) Better zoning potential
The control kit options shown include 1-zone and 2-zone control approaches. A buffer makes multi-zone control more forgiving, because each zone doesn’t instantly “fight” the heat pump when valves open/close.
3) Cleaner installs and faster fit times
Pre-plumbed cylinders reduce site fabrication and help standardise the hydraulic arrangement. Less time improvising pipework = fewer surprises later.
The Samsung EHS monobloc ranges shown:
Below is a simple “at-a-glance” summary of the models visible in your schedule.
R32 Monobloc (A2W inverter)
Single phase (1ph):
AE050RXYDEG/EU – 5kW
AE080RXYDEG/EU – 8kW
AE120RXYDEG/EU – 12kW
AE160RXYDEG/EU – 16kW
Three phase (3ph):
AE080RXYDGG/EU – 8kW
AE120RXYDGG/EU – 12kW
AE160RXYDGG/EU – 16kW
Why this matters: R32 monobloc is a strong “everyday” range for typical residential and light commercial heating + DHW when paired with a suitable cylinder.
High Temperature Monobloc R290 (A2W inverter, 70°C class)
Single phase (1ph):
AE050CXYDEK/EU – 5kW
AE080CXYDEK/EU – 8kW
AE120CXYDEK/EU – 12kW
AE160CXYDEK/EU – 16kW
Three phase (3ph):
AE080CXYDGK/EU – 8kW
AE120CXYDGK/EU – 12kW
AE160CXYDGK/EU – 16kW
Why high temperature helps: For retrofit properties or sites with higher flow temperature needs, being able to reach a 70°C leaving water temperature (subject to conditions) can make the difference between “works on paper” and “works in winter”.
R290 Monobloc with Integral Hydro components (with pump & control kit)
Single phase (1ph):
AE050CXYBEK/EU – 5kW
AE080CXYBEK/EU – 8kW
AE120CXYBEK/EU – 12kW
AE160CXYBEK/EU – 16kW
Three phase (3ph):
AE080CXYBGK/EU – 8kW
AE120CXYBGK/EU – 12kW
AE160CXYBGK/EU – 16kW
Note shown: remote required for this configuration (MWR-WW10N premium wired remote is listed).
Why it’s useful: integral hydro components can simplify the system build when you want a more “packaged” approach — ideal for installers who want speed and consistency.
High Temp Quiet Monobloc R32 (70°C class)
Single phase (1ph):
AE080BXYDEG/EU – 8kW
AE120BXYDEG/EU – 12kW
AE140BXYDEG/EU – 14kW
Three phase (3ph):
AE080BXYDGG/EU – 8kW
AE120BXYDGG/EU – 12kW
AE140BXYDGG/EU – 14kW
Why “Quiet” matters: residential planning constraints, neighbour proximity, and site expectations all make noise performance a practical selling point — especially on retrofit installs.

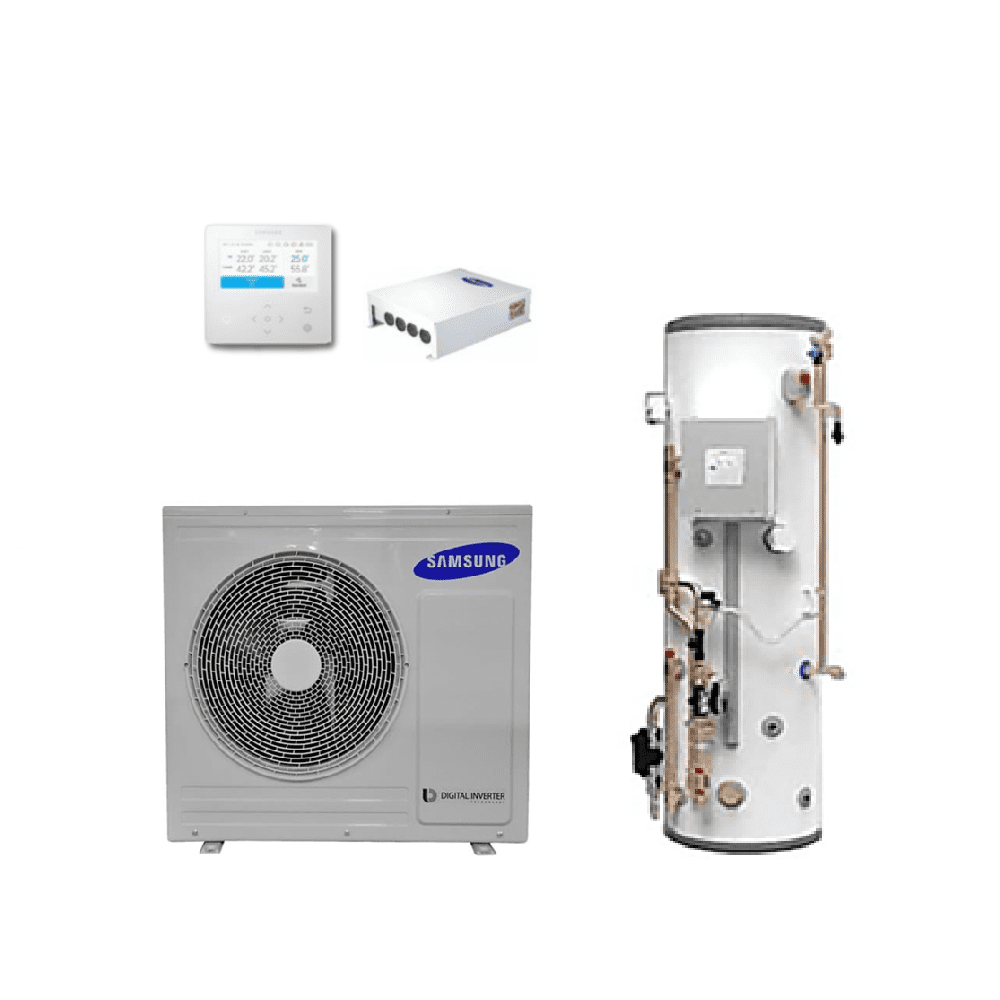

The pre-plumbed DHW cylinder options (with buffer):
Your accessories schedule shows pre-plumbed DHW cylinders with MIM control kit pre-installed, plus integrated buffer volumes. These are well suited to projects where you want a neat, repeatable layout and predictable commissioning.
Slim Line pre-plumbed cylinders:
ACL-150PSW – 150L DHW, 30L buffer, usable water volume V40: 230L
ACL-180PSW – 180L DHW, 30L buffer, usable water volume V40: 280L
Pre-plumbed cylinders (standard line shown)
ACL-180PW – 180L DHW, 50L buffer, usable water volume V40: 260L
ACL-210PW – 210L DHW, 50L buffer, usable water volume V40: 319L
ACL-250PFW – 250L DHW, 70L buffer, usable water volume V40: 393L
ACL-300PFW – 300L DHW, 70L buffer, usable water volume V40: 468L
Why the V40 figure is a big deal: V40 is a useful “real life” indicator of how much mixed water at 40°C you can draw, thanks to the cylinder storing hotter water and blending down. It’s often a better comfort indicator than litres alone.
How to choose a practical pairing (simple selection logic)
Residential homes
Smaller / well-insulated homes: 5kW–8kW monobloc paired with 150L–210L cylinder options can be a tidy fit where DHW demand is moderate.
Family homes with multiple bathrooms: 8kW–12kW range plus 210L–300L cylinders often makes more sense, especially if morning demand is spiky.
Retrofit with higher temperature needs: high-temp (70°C class) models can help where emitters are less forgiving (older radiators, mixed circuits), while still using the cylinder/buffer combo for stability.
Light commercial:
Think small offices, retail units, salons, workshops, small hospitality:
A buffer-equipped cylinder pairing helps manage variable loads and zoning changes without the system becoming temperamental.
3-phase options (where available/needed) can suit sites with electrical infrastructure already in place.
Controls and zoning (why the “kit” matters)
Your schedule includes mono control kit options such as:
1-zone control kit (MWR-WW10N included on the 1-zone listing)
2-zone control kit (with a 7" touch control & Wi-Fi noted)
This matters because the system isn’t just a heat source, it’s a managed heat source. Zoning and setpoint control are where comfort, running costs, and user satisfaction meet. Pair that with a buffer tank and you get zoning that behaves itself, rather than a system that constantly starts/stops when someone changes a thermostat.
FAQs:
Do I need a buffer tank if I already have a cylinder?
Not always, but it’s often a smart move. A buffer can reduce cycling, improve stability with zoning, and help the heat pump run more smoothly under changing loads.
What does “70°C leaving water temperature” actually help with?
Higher leaving water temperatures can improve compatibility in retrofit situations and support higher temperature demands. It’s particularly useful where emitters or site requirements push beyond typical low-temp flow temperatures (conditions apply).
Single phase or three phase, what should I choose?
Most homes are single phase, but three phase can be ideal for some light commercial sites or higher capacity installs where electrical distribution suits it.
What’s V40 and why should I care?
V40 is a practical comfort metric for DHW draw-off. It indicates usable mixed hot water at 40°C, which is closer to how occupants experience hot water than raw cylinder litres.
