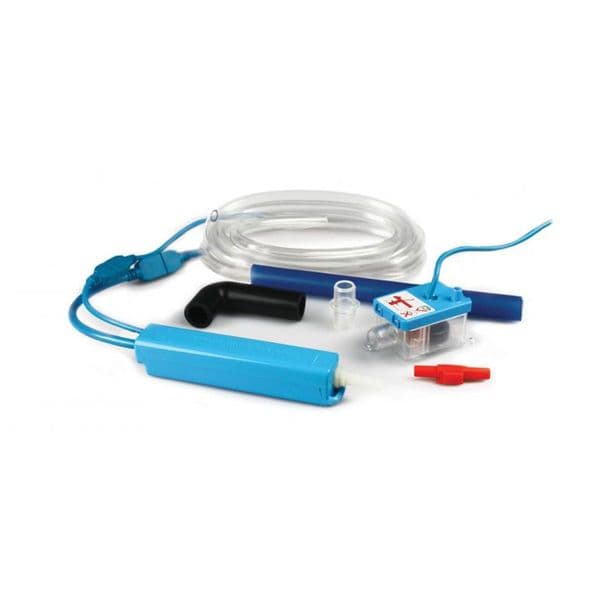

Combining Silent+ technology and the slimmest mini pump on the market, the Silent+ Mini Aqua leads the way in innovation. The Aspen Mini Aqua Pump is the worlds slimmest condensate removal pump designed to fit where others can't. Within the Mini Aqua kit there are two reservoirs to choose from, one allows you to connect directly to the drain hose of the evaporator and the second reservoir can be placed directly into a condensate tray, providing it is sitting flat and horizontal. By connecting the drain hose to the reservoir and placing the pump drive unit within the evaporator, condensate water can be pumped to a height of 10 metres.
Key Product Feature's:
- Power supply 230V - 21.5W
- 1PH~50 Hz
- Volt free N.O, N.C 8A resistive (5a inductive)
- Hall effect semi conductor level sensors
- Water flow rate: 37 litres per hr at zero head
- Maximum recommended head: 15 metres
- 35dB(A) @ 1 metre head
- CE marked
- Fully potted
- Thermally protected pump
Where the Aspen Mini Aqua condensate pump is designed to be installed:
- above the false ceiling where possible
- conduit trunking
- in plastic behind wall mounted evaporators
- In some circumstances within the unit
- Up to 16kW / 54,000Btu/h
- Ducted units; Floor standing & Chassis units; High wall mini split systems
- Perfect for... Small & quiet – you’ll never know it’s there!
