Aspen Mini Aqua Condensate Pump 10M Head 240V~50Hz

Aspen Mini Aqua Condensate Pump 10M Head 240V~50Hz

£84.47 £70.39 (ex. VAT)
Stock Status: In Stock

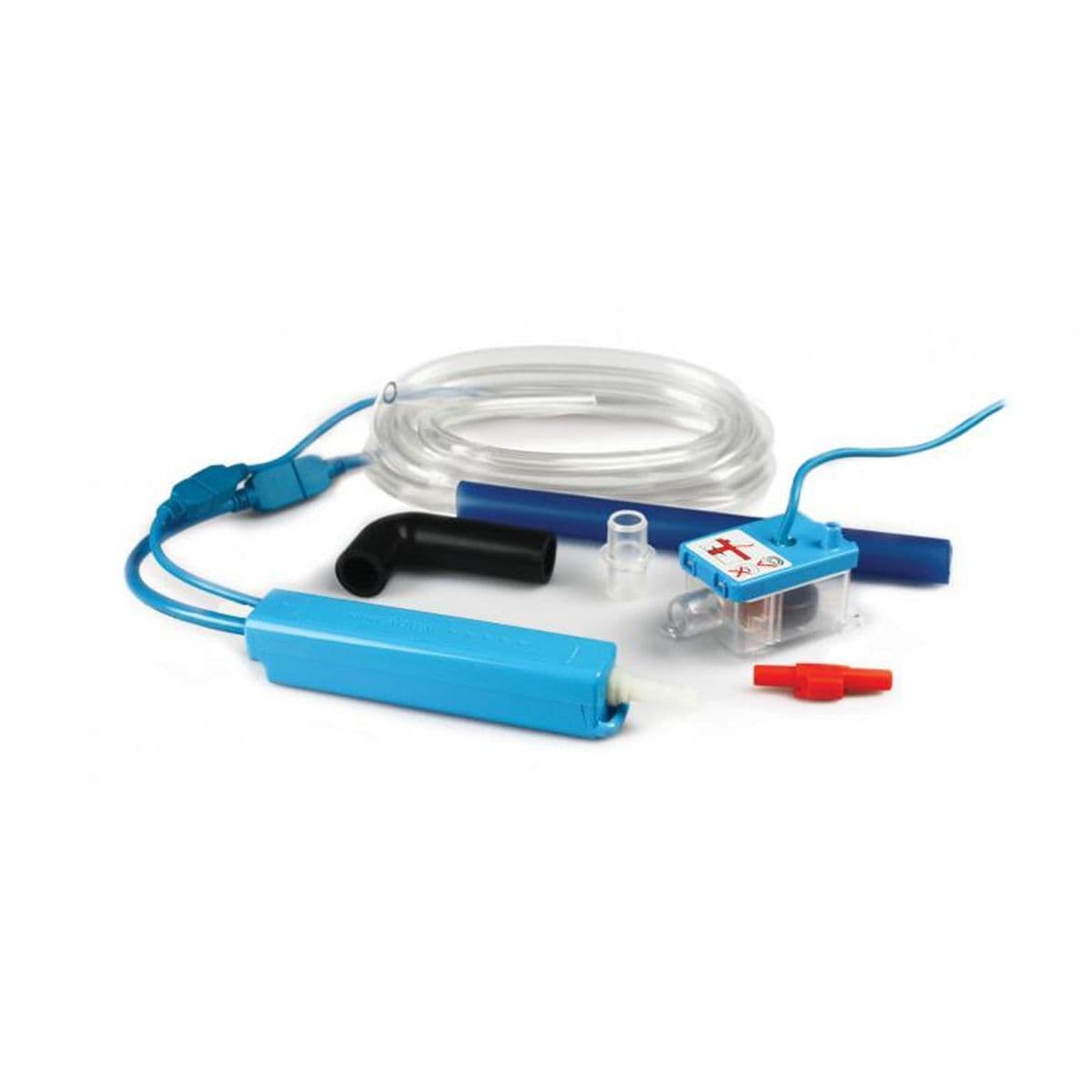

The Aspen Mini Aqua Pump is the worlds slimmest condensate removal pump designed to fit where others can't. Within the Mini Aqua kit there are two reservoirs to choose from, one allows you to connect directly to the drain hose of the evaporator and the second reservoir can be placed directly into a condensate tray, providing it is sitting flat and horizontal. By connecting the drain hose to the reservoir and placing the pump drive unit within the evaporator, condensate water can be pumped to a height of 10 metres.





Key Product Feature's:

Max. flow: 12 L/h @ 0 head
Max. rec. head: 10m
Max. suction lift: 2m
Sound level: 21dB(A) @ 1m
Power supply: 230 VAC, 0.1A, 16W 50/60Hz
Rated: Non continuous
Class: II Appliance
Max. unit output: 16 кВт / 54000 БТЕ/ч
Max. water temp: 40oC / 104oF
Discharge tube: 6mm ID
IP Protection: IP24
Safety switch: 3.0A Normally closed
Thermal protection: y
Fully potted: y
Self priming: y
Part number: FP2406/2



Where the Aspen Mini Aqua condensate pump is designed to be installed:


  • above the false ceiling where possible
  • conduit trunking
  • in plastic behind wall mounted evaporators
  • In some circumstances within the unit
  • Up to 16kW / 54,000Btu/h
  • Ducted units; Floor standing & Chassis units; High wall mini split systems
  • Perfect for... Small & quiet – you’ll never know it’s there!
