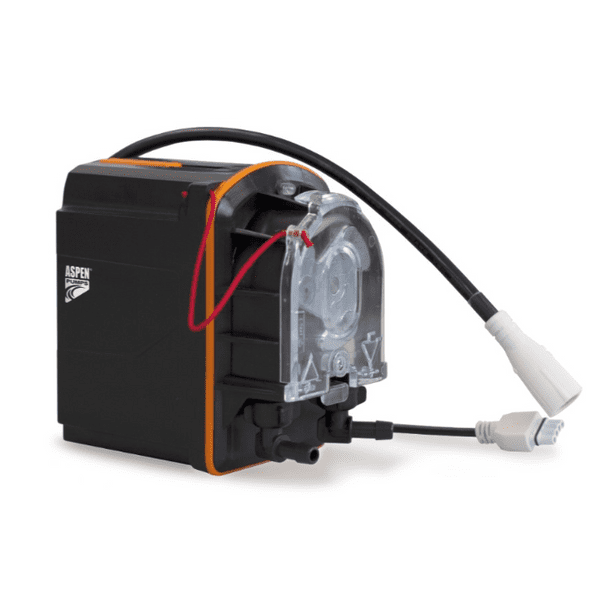

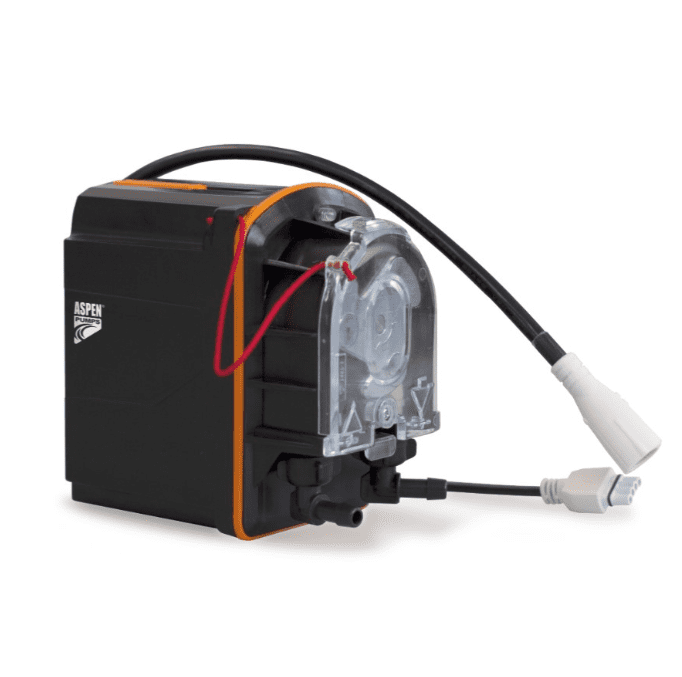

The Aspen Peri Pro Air Condensate Pump FP3390 is the next-generation replacement for the renowned Aspen Universal Pump, offering enhanced reliability, ultra-quiet performance, and an industry-first 5-year warranty. Designed for high-demand HVAC applications, this advanced pump incorporates stepper motor technology and programmable speed control for reduced tube wear and minimal audible noise—making it an exceptional solution for both residential and commercial installations where performance and discretion are paramount.
Ideal for use with high-wall split systems, ducted units, floor-standing units, and chassis-mounted HVAC equipment, the FP3390 Peri Pro Air provides flexible installation options and outstanding lift capability. It is perfectly suited for hotel bedrooms, offices, apartments, and remote access locations, where silent operation and long service life are critical.
Key Product Features:
-
Stepper Motor Technology: Ensures precision, reduced vibration, and minimal tube degradation.
-
Programmable Motor Speed: User-adjustable to match application needs and minimise noise levels.
-
5-Year Warranty: Industry-leading warranty (excluding tube, subject to correct installation and operation).
-
Ultra-Quiet Operation: Ideal for noise-sensitive environments such as hotel rooms and offices.
-
Flexible Installation Options: Suitable for a wide range of unit types and mounting configurations.
-
Patented Mounting System: Quick, secure, and hassle-free installation.
-
Outstanding Lift Performance: Ensures reliable condensate removal even over long distances or vertical runs.
-
Compact Design: Fits into tight spaces and discreet applications.
Technical Specifications:
| Specification |
Details |
| Model |
FP3390 |
| Power Supply |
230V~50Hz/60Hz |
| Pump Type |
Peristaltic, Stepper Motor |
| Control |
Programmable Motor Speed |
| Warranty |
5 Years (excl. tube, conditions apply) |
| Suitable For |
Wall-mounted splits, ducted, floor-standing, chassis units |
| Mounting |
Patented bracket – fast and secure |
| Noise Level |
Ultra-quiet (variable by setup) |
| Applications |
Hotel bedrooms, remote installs, commercial/residential HVAC |
| Specification |
Details |
| Model |
Peri Pro Air FP3390 |
| Power Supply |
110–230V AC, 3A, 50/60Hz |
| Max. Flow |
15L/h @ 12m head |
| Max. Head |
12 metres |
| Max. Suction Lift |
3 metres |
| Noise Level |
21 dB(A) @ 1m |
| Rated Duty |
Continuously Rated |
| Class |
Class II Appliance |
| Max. Ambient Temperature |
40°C / 104°F |
| Inlet/Outlet Size |
6mm ID |
| IP Protection |
IP24 |
| Safety Switch |
5A NC relay |
| Self-Priming |
Yes ✔ |
Disclaimer:
Warranty covers 5 years on the unit excluding tubing, subject to correct installation and operation guidelines. Always refer to the manufacturer's installation manual for setup instructions.
Products Key Features
• Operates on 240V cooling signal
• Self-priming lifts 3 metres (9.8ft)
• 20 metres discharge head
• Water flow rate: 6.25 ltrs (1.65 US gallons)
per hr @ 20 metres (40ft) head
• 3 minute timer overrun
• No siphoning back
• No loud sound from dry running
• Fits into shallow ceiling void
• Pumps water, fibrously contaminated
water and air
• Pump has a manual test switch
• Pump rating: 0.5A, 240V AC
Alternative voltages available
• Maximum water temperature: 40ºC
