Floor Standing Cabinet Heater

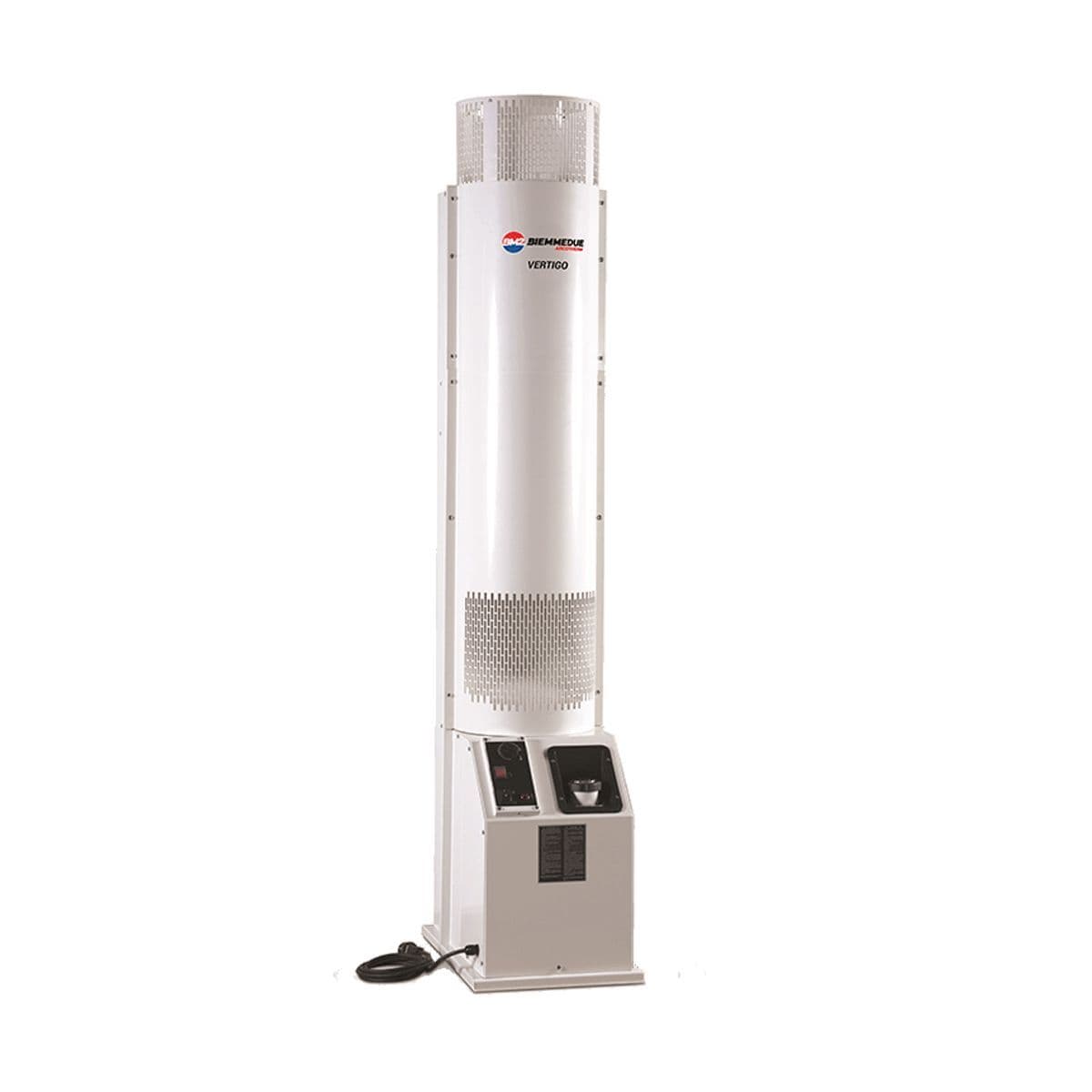

Arcotherm Vertigo (17kW, 58,000 BTU) Oil Fired Cabinet Space Heater

Arcotherm Vertigo (17kW, 58,000 BTU) Oil Fired Cabinet Space Heater

£2,572.50 £2,143.75 (ex. VAT)
Stock Status: In Stock
Blog

The Vertigo cabinet heater has an output of 17kW (58,000 BTUs / Hr), and is designed for small workshops, offices or retail outlets. Sited against an outside wall, the Vertigo has a 120mm flue outlet; the heater has an integral 35 litre fuel tank, which will support approx 20 hours of continuous use. However, the Vertigo also boasts an integral room thermostat, with a temperature range of +5/+30°C. The combustion process is, in essence, the same as the EC / GE units, with a pump to ensure consistent operation, and an electronic flame control sensor - all governed by an electronic control box.



Key Product Features:

  • Integrated oil burner
  • Electronic flame control
  • Built-in room thermostat (+5/+30°C)
  • Helicoidall fan
  • Power cord (1.5m)with plug
  • Oil filter
  • 32 litre fuel tank with level gauge
  • Stainless steel combustion chamber with aerodynamic shape
  • High efficiency heat exchanger
  • Stainless steel exhaust pass plate pipe I = 0.6m

Technical Specification:


RATED HEAT POWER kW, BTU/h 18.2, 62.295
OUTPUT HEAT POWER kW, BTU/h 16.9, 57.934
HEAT EFFICIENCY % 93
AIR FLOW M3/H 1200
TEMPERATURE RISE a 20°C (°C) 65
FUEL CONSUMPTION Kg/h 1,44
TANK CAPACITY L 35
POWER CONSUMPTION 230V W 400
ELECTRICAL POWER V, ph, Hz 230, 1, 50
FLUE mm 120
MACHINE WEIGHT AND DIMENSIONS WITH PACKAGING
553 mm 710 mm
370 mm 420 mm
1996 mm 2050 mm
70 kg 88.5kg
