FOR HEATING LARGE PREMISES WITH MINIMUM INSTALLATION REQUIREMENTS
Running on natural gas or LPG, the fixed Arcotherm space heaters of the SP range are the most functional and efficient alternative to traditional heating plants, also as a solution for intermittent or occasional use. Heating power, flexible use and low running costs make them ideal for heating large spaces such as industrial areas, large sheds, workshops, warehouses, laboratories, showrooms, supermarkets, religious buildings, gyms and tension structures.
Key Product Features:
• Automatic gas burner
• Electronic flame control
• Electric board
• FAN-LIMIT bi-thermostat with manual reset
• Centrifugal fan
• Air inlet grills
• Filter (oil version)
• Gas train (EN 676) (gas version): gas filter, gas governor, gas safety valve and gas working valve
• Double skinned body for thermo-acoustic insulation and safe low surface temperature
• Stainless steel combustion chamber with aerodynamic shape
• High efficiency heat exchanger
• Pre-heating of the combustion chamber
• Automatic post ventilation of unit
• Summer-winter switch for use as fan
• On request bio-gas feeding

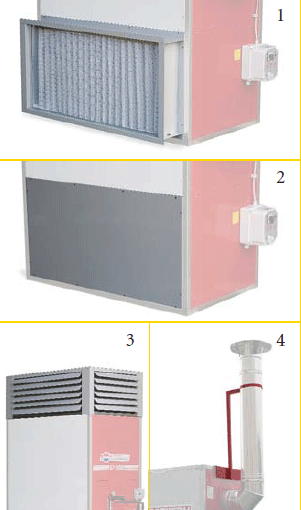

ACCESSORIES ON REQUEST: (See image 2)
• Multi sector air filter box (1)
• Closing panel-air inlet side (2)
• Air outlet with adjustable louvers on 4
sides (Plenum) (3)
• Support chimney kit (4)

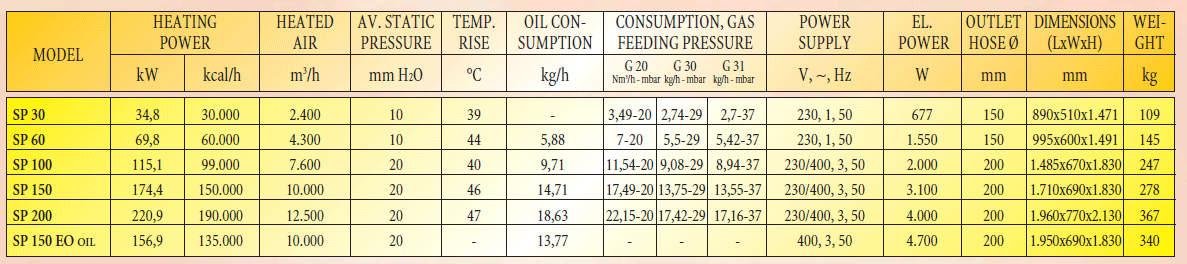

Technical Specification (See Image 3)
