The Arcotherm Fire45DV is a powerful, direct combustion infrared mobile space heater delivering 45.5kW of radiant heat with no airflow interference. Operating at 230V~50Hz, this one-speed model is purpose-built for industrial and commercial applications where silent, efficient heat is essential. Featuring Arcotherm’s innovative BM2 burner system, the Fire45DV is ideal for precision spot heating in environments such as construction sites, workshops, warehouses, and agricultural zones.


Key Product Features:

• Radiant heat by direct combustion – no air movement

• Low noise level – ideal for quiet or sensitive operations

• Arcotherm BM2 burner with standard UE components

• Geared fuel pump for efficient combustion

• Photoresistance-based electronic flame control

• Thermostat, humidistat, or timer compatible

• 1.5m power cord with fitted plug

• AISI 430 stainless steel combustion chamber

• Cooled outer casing with forced air flow

• Timed post-ventilation for enhanced chamber safety

• Reinforced hydrocarbon-resistant fuel hoses with protective casing

• Heavy-duty polyethylene shockproof fuel tank

• Screw-type fuel cap with integrated drain plug

• Adjustable cone outlet to direct heat precisely

• Integrated lifting hooks for safe manual handling


Technical Specifications:

• Rated Heat Power: 45.5kW

• Heat Efficiency: 100%

• Fuel Consumption: 3.6kg/h

• Electrical Power: 370W

• Electrical Supply: 230V~50Hz

• Fuel Tank Capacity: 65 litres

• Dimensions (A x B x C): 1,410 x 712 x 1,053mm

• Net Weight: 73kg

• Gross Weight: 91kg

• Pallet Quantity: 1 unit


BM2 Burner Innovation:

At the heart of the Fire45DV is the Arcotherm BM2 burner, a revolutionary system that replaces traditional ceramic fibre cones with a multilayer metal cone structure cooled by a fan. This design eliminates brittleness and cracking issues found in older models and improves fuel combustion and cone cooling. The result is better safety, lower maintenance, and superior thermal performance in demanding industrial applications.


Ideal Applications:

• Drying and curing in building and renovation sites

• Paint shops and bodywork bays where no air disturbance is required

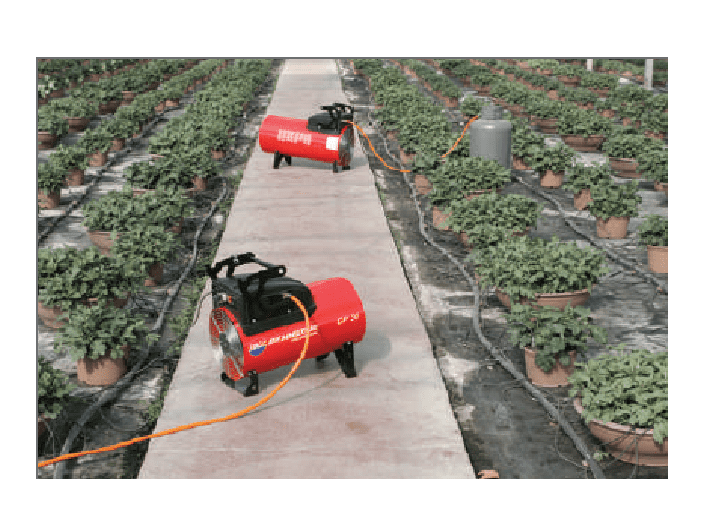

• Agricultural heating (e.g., animal pens, greenhouses)

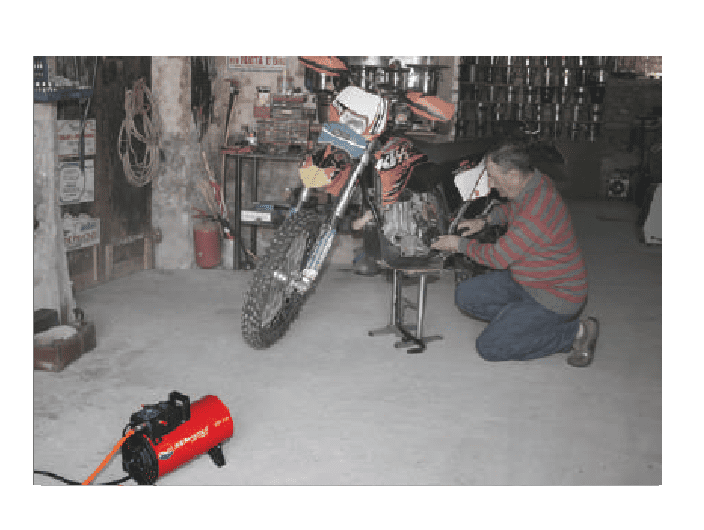

• Industrial workshops and garages

• Outdoor or ventilated indoor heating where silence and precision are vital


Disclaimer:

This unit is intended for use in ventilated or semi-ventilated areas. It must not be used in enclosed, unventilated spaces.
