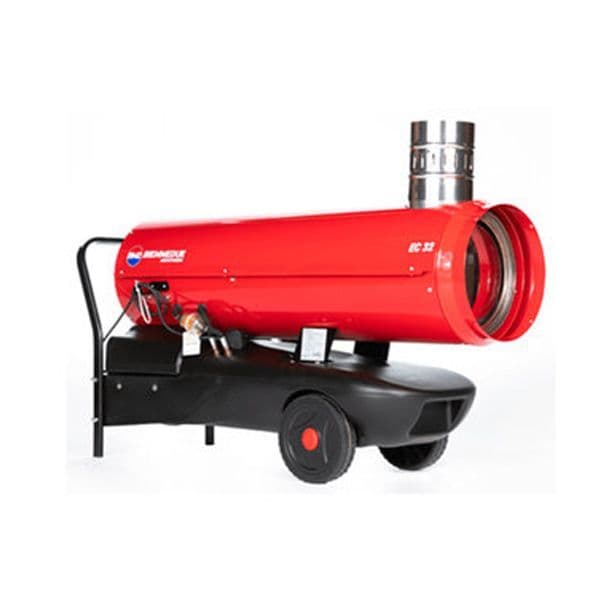

Arcotherm EC85 Indirect Fired Diesel Heater 80Kw/274000Btu Dual Voltage Marquee Heater Package - EC85BNZ - With standard air diffuser

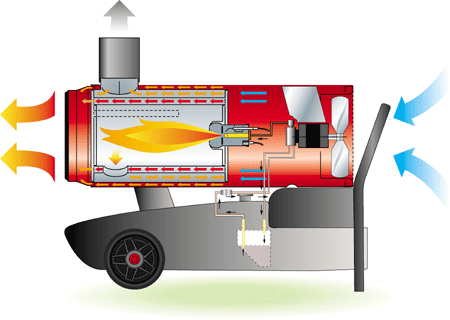

Indirect Oil Fired Heater, the EC85 has an AISI 430 stainless steel combustion chamber and an automatic, built in oil burner, with a Danfoss pump. For extra safety, the EC85 is fitted with an electronic flame control device, a safety thermostat and electronic control panel. The EC85 can be fitted with an optional 2 - Way splitter.
Key Product Features:
- Thermostatically Controlled
- Danfoss Fuel Pump
- Safety thermostat
- 12 month warranty
Technical Specification:
| Heating Capacity |
80Kw / 274000 Btu / hr |
|
|
| Weight |
110 Kg |
|
|
| Dimensions |
1025mm x 690mm x 1740mm |
|
|
| Airflow |
4300m³ / hr |
|
|
| Fuel Consumption |
7.2 Litres / hr |
|
|
| Hose Length |
7.6 Metre |
|
|
| Hose Diameter |
405mm |
|
|
| Tank Capacity |
105 litres |
|
|
| Thermal Efficiency |
88.5% |

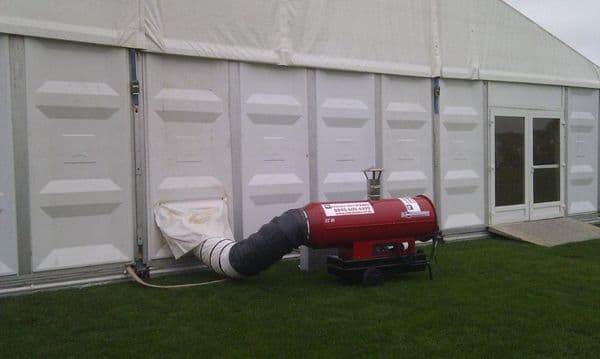

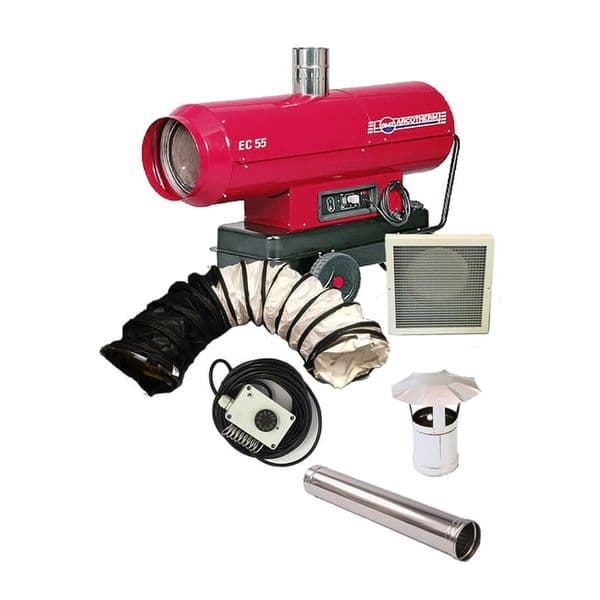

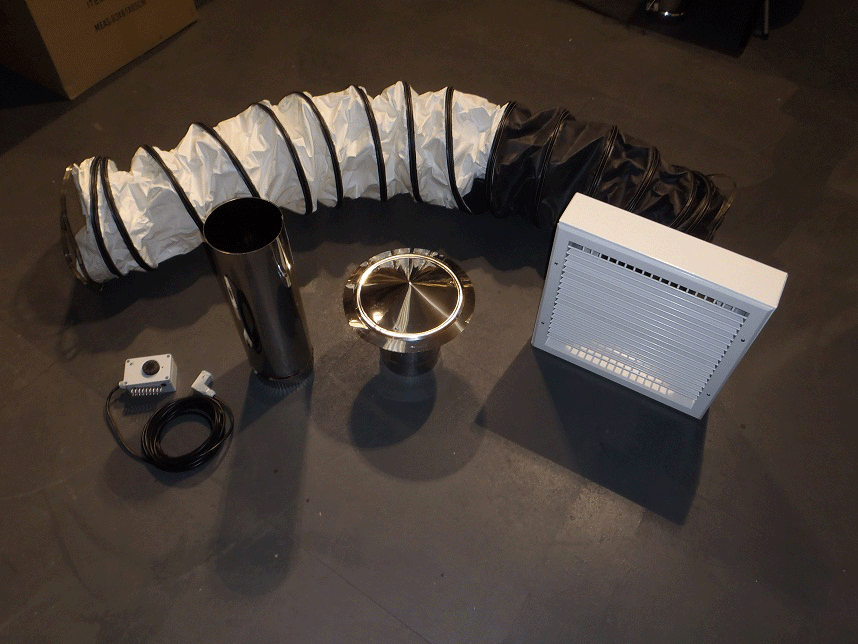

This Marquee Package comprises the following:
- 1 x 7.6 Metre Length of High Temperature 407mm Ducting
- 1 x Standard Level 407mm Air Diffuser
- 1 x Thermostat c/w Lead
- 1 x 500mm x 150mm Stainless Steel Flue
- 1 x 150mm Rain Cowl
