Arcotherm EC55 Indirect Fired Diesel Heater (51kw) Dual Voltage Silver Marquee Heater Package - EC55SVRLLD - Dual Voltage 110V/230V~50Hz - With low level air diffuser.

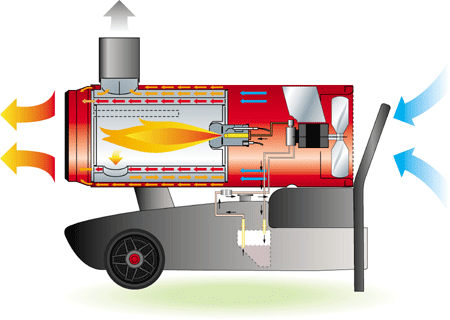

Indirect Oil Fired Heater, the EC55 has an AISI 430 stainless steel combustion chamber and an automatic, built in oil burner, with a Danfoss pump. For extra safety, the EC55 is fitted with an electronic flame control device, a safety thermostat and and electronic control panel. This EC55 package is fitted with an 2 - Way splitter and 2 ducts so the heat can be directed to two areas.
Key Product Features
- Thermostatically Controlled
- Danfoss Fuel Pump
- Safety thermostat
- 12 month warranty
Technical Specification:
|
| Heating Capacity |
51Kw / 174000 Btu / hr |
|
|
| Weight |
81 Kg |
|
|
| Dimensions |
940mm x 555mm x 1435mm |
|
|
| Airflow |
2500m³ / hr |
|
|
| Fuel Consumption |
4.6 Litres / hr |
|
|
| Hose Length |
3 or 7.6 Metre |
|
|
| Hose Diameter |
356mm |
|
|
| Tank Capacity |
65 litres |
|
|
| Thermal Efficiency |
89.5% |

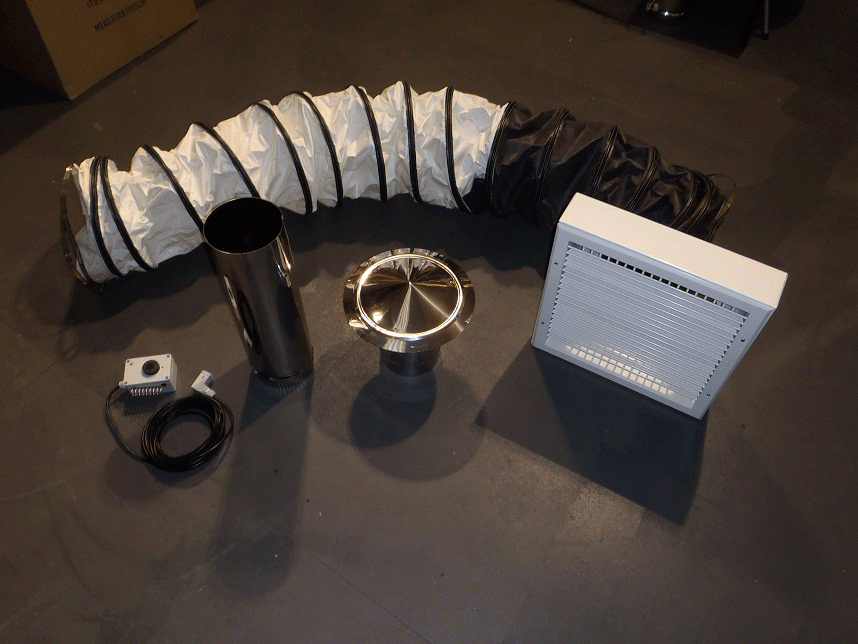

The Silver Marquee Package comprises:
- 1 x 2 - Way Splitter
- 2 x 3 Metre Lengths of Ducting
- 2 x Standard Diffusers
- 1 x Thermostat c/w Lead
- 1 x 150mm x 500mm Stainless Steel Flue
- 1 x 150mm Rain Cowl
