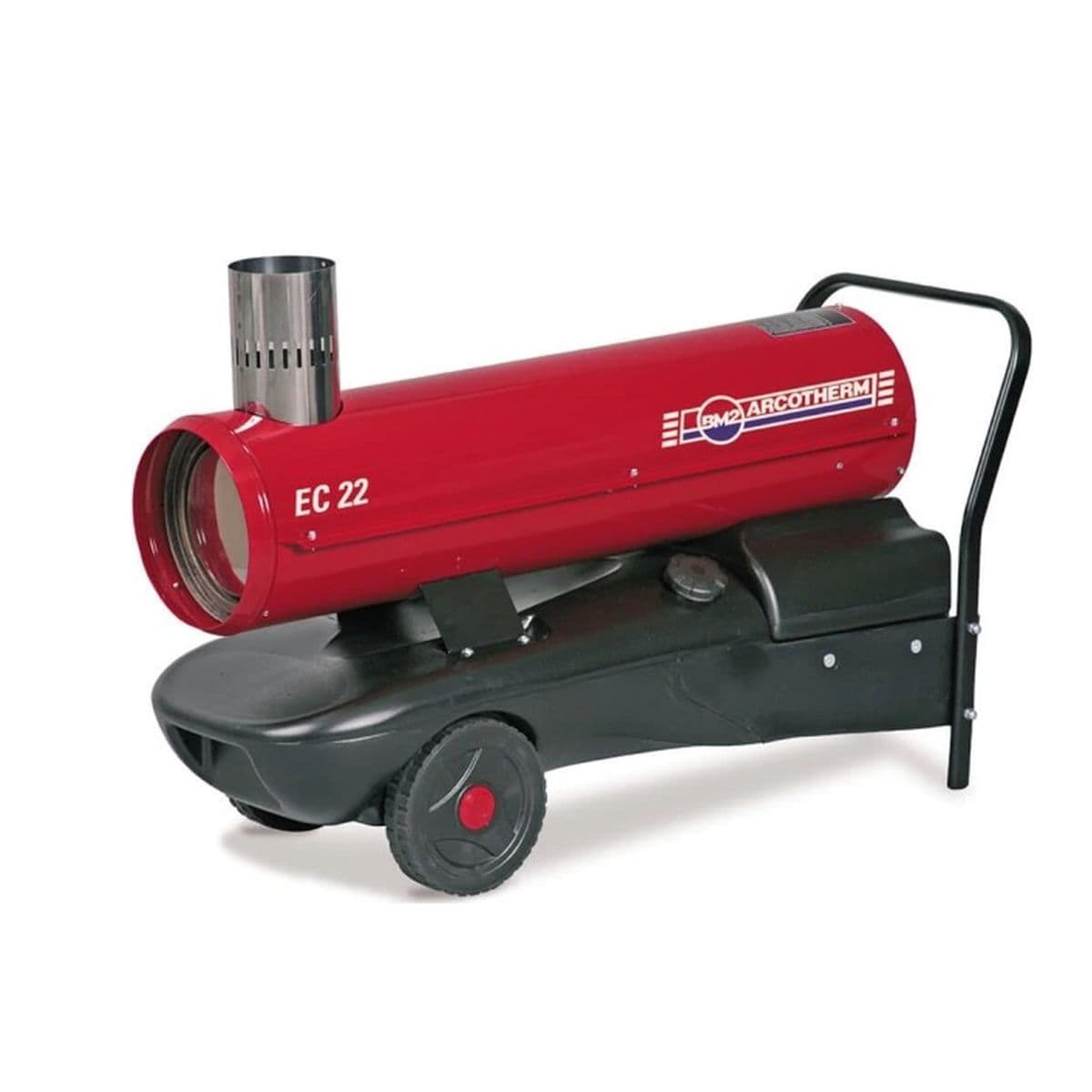

Arcotherm EC22 Indirect Fired Diesel Heater (20kw) Marquee Heater Standard Package EC22STD
Indirect Oil Fired Heater, the EC22 has a tough, hydrocarbon resistant polythene fuel tank and an AISI 430 stainless steel combustion chamber. The unit has an automatic, built in oil burner, with a Danfoss pump. For extra safety, the EC22 is fitted with an electronic flame control device, a safety thermostat and and electronic control panel.
Key Product Features:
- Thermostatically Controlled
- Hydrocarbon resistant, polythene fuel tank
- Danfoss Fuel Pump
- Safety thermostat
- 12 month warranty
Technical Specifications:
| Heating Capacity |
20Kw / 67000 Btu / hr |
| Weight |
40 Kg |
| Dimensions |
615mm x 440mm x 1075mm |
| Airflow |
550m³ / hr |
| Fuel Consumption |
1.9 Litres / hr |
| Hose Length |
2 Metre |
| Hose Diameter |
250mm |
| Tank Capacity |
42 litres |
| Thermal Efficiency |
84% |

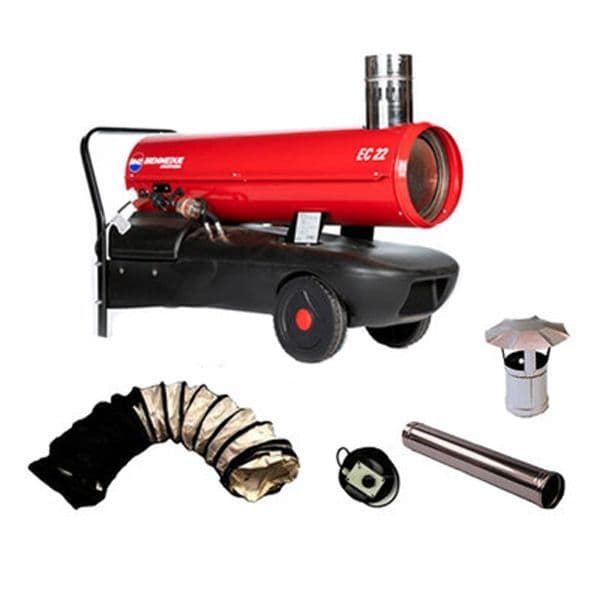

The Standard Marquee Package comprises the following:
- 1 x EC22 20Kw heater
- 1 x 2 Metre Length of High Temperature Ducting
- 1 x Ducting Adaptor
- 1 x Thermostat c/w Lead
- 1 x 500mm x 120mm Stainless Steel Flue
- 1 x 120mm Rain Cowl
