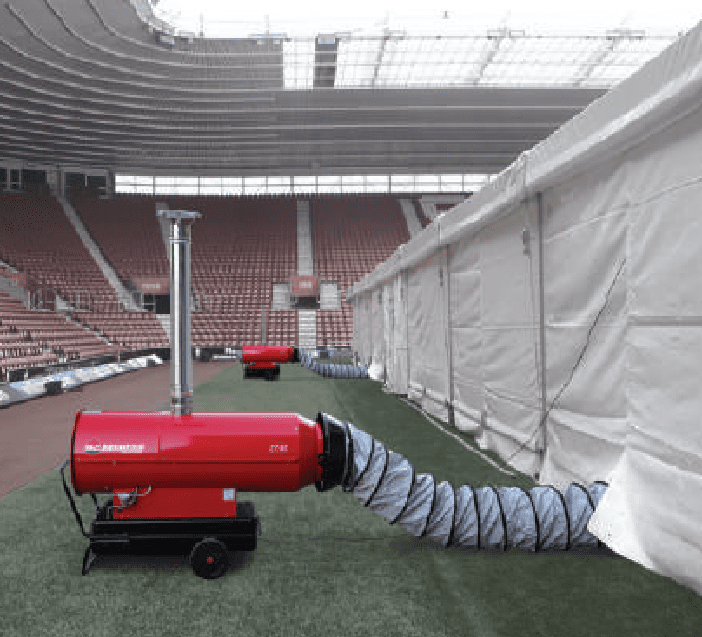

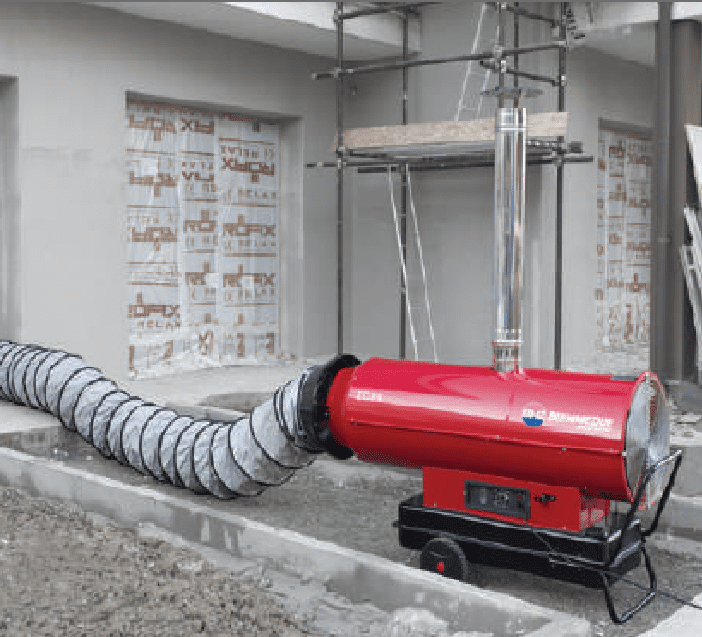

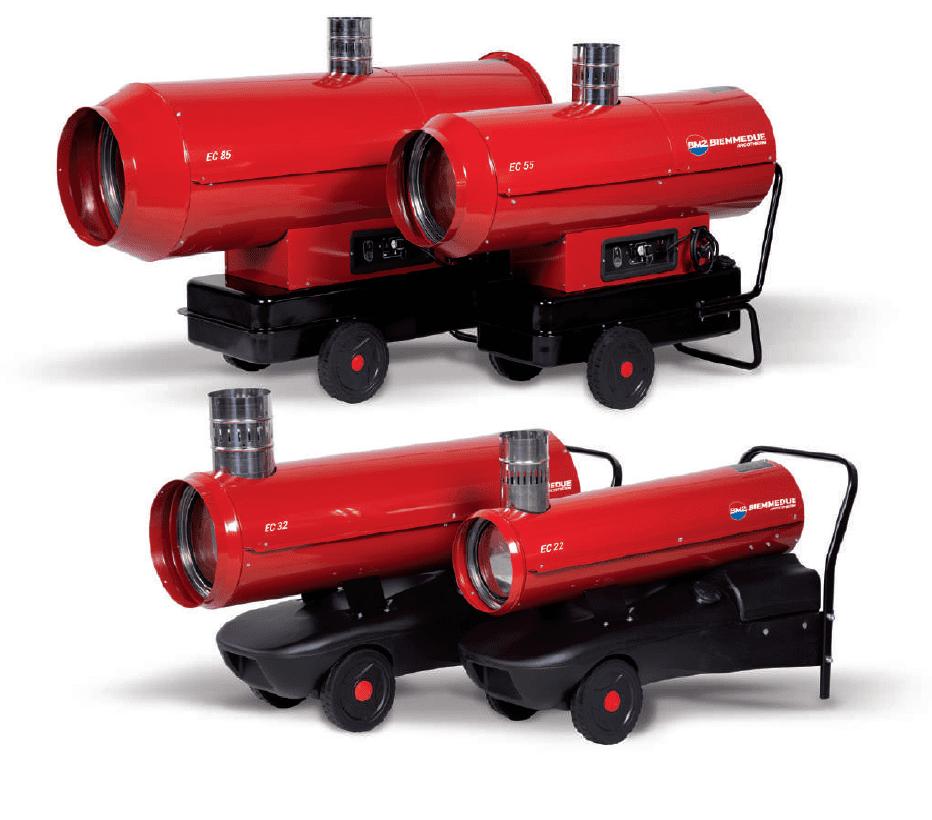

Oil Fired Space Heater Home / Heating / Oil Fired Space Heater / Arcotherm EC22 Direct Combustion Diesel Space Heater 23.4kW 230V~50Hz Arcotherm EC22 Direct Combustion Diesel Space Heater 23.4kW 230V~50Hz Arcotherm EC22 Direct Combustion Diesel Space Heater 23.4kW 230V~50Hz £1,725.00 £1,437.50 (ex. VAT) Stock Status: In Stock Accessories: Not Required Heavy duty thermostat -5C/+50C, cable 10m, plug 90 (+£78.00) Trolley kit (+£88.50) Fuel tank filler filter (+£25.50) EC22 rain cover (+£180.00) Ducting 2mtr x 250mm (+£165.00) Information Reviews The Arcotherm EC22 is a direct combustion diesel space heater designed for performance, safety, and efficiency in industrial, agricultural, and construction applications. Delivering 23.4kW of thermal power, the EC22 is capable of raising air temperature by up to 95°C. It incorporates durable materials and intelligent features to deliver consistent heating while maintaining compact form and low fuel consumption. Key Product Features: Built-in diesel burner Compatible with thermostat, humidistat, and timer 1.5m power cord with standard plug AISI 430 stainless steel combustion chamber with 3 smoke revolutions for enhanced heat exchange Automatic post ventilation to cool the unit after shutdown Electronic flame control and integrated safety thermostat Hydrocarbon-resistant rubber fuel lines with reinforced textile Shockproof polyethylene fuel tank Bayonet-type tank cap and integrated drain plug Electric control panel for monitoring and adjustments Technical Specifications: Model: EC 22 Rated Heat Power: 23.4kW (20,108 - 80,032 kcal/h) Heat Efficiency: 84% Air Flow: 550 m³/h Air Temperature Rise at 20°C: 95°C Fuel Consumption: 1.85 kg/h Fuel Tank Capacity: 42L Electrical Power Consumption: 300W Voltage Supply: 230V~50Hz Flue Diameter: 120mm Dimensions (mm): A: 1,020 x B: 390 x C: 670 Net Weight: 32kg Ideal Applications: Workshops and industrial units Construction and renovation sites Greenhouses and agricultural settings Warehouses and logistics centres Event and temporary structures Disclaimer: The Arcotherm EC22 must be used in well-ventilated environments. Always follow safety guidelines and installation instructions provided by the manufacturer. Not yet reviewed Write an online review and share your thoughts with other shoppers! Be the first to review this product

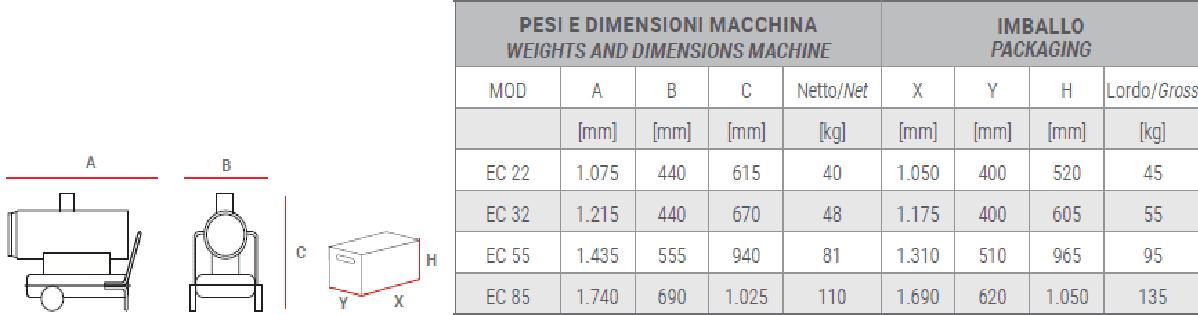

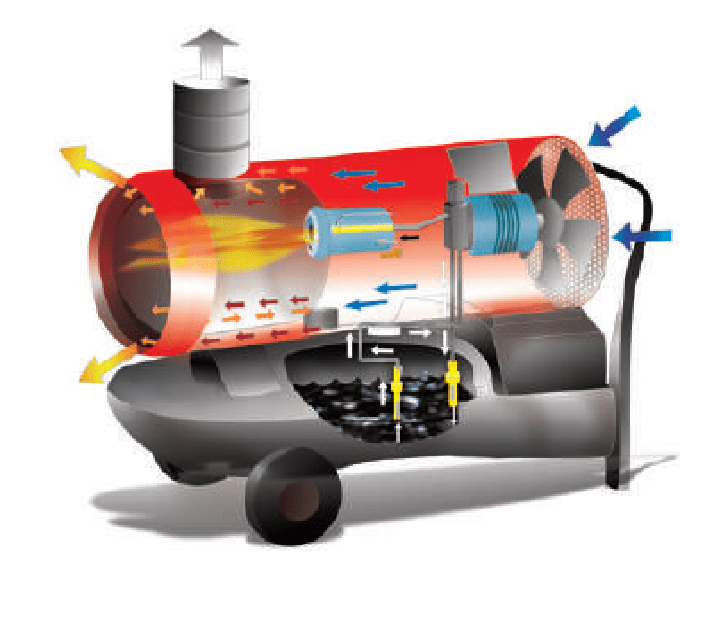

The Arcotherm EC22 is a direct combustion diesel space heater designed for performance, safety, and efficiency in industrial, agricultural, and construction applications. Delivering 23.4kW of thermal power, the EC22 is capable of raising air temperature by up to 95°C. It incorporates durable materials and intelligent features to deliver consistent heating while maintaining compact form and low fuel consumption. Key Product Features: Built-in diesel burner Compatible with thermostat, humidistat, and timer 1.5m power cord with standard plug AISI 430 stainless steel combustion chamber with 3 smoke revolutions for enhanced heat exchange Automatic post ventilation to cool the unit after shutdown Electronic flame control and integrated safety thermostat Hydrocarbon-resistant rubber fuel lines with reinforced textile Shockproof polyethylene fuel tank Bayonet-type tank cap and integrated drain plug Electric control panel for monitoring and adjustments Technical Specifications: Model: EC 22 Rated Heat Power: 23.4kW (20,108 - 80,032 kcal/h) Heat Efficiency: 84% Air Flow: 550 m³/h Air Temperature Rise at 20°C: 95°C Fuel Consumption: 1.85 kg/h Fuel Tank Capacity: 42L Electrical Power Consumption: 300W Voltage Supply: 230V~50Hz Flue Diameter: 120mm Dimensions (mm): A: 1,020 x B: 390 x C: 670 Net Weight: 32kg Ideal Applications: Workshops and industrial units Construction and renovation sites Greenhouses and agricultural settings Warehouses and logistics centres Event and temporary structures Disclaimer: The Arcotherm EC22 must be used in well-ventilated environments. Always follow safety guidelines and installation instructions provided by the manufacturer.
