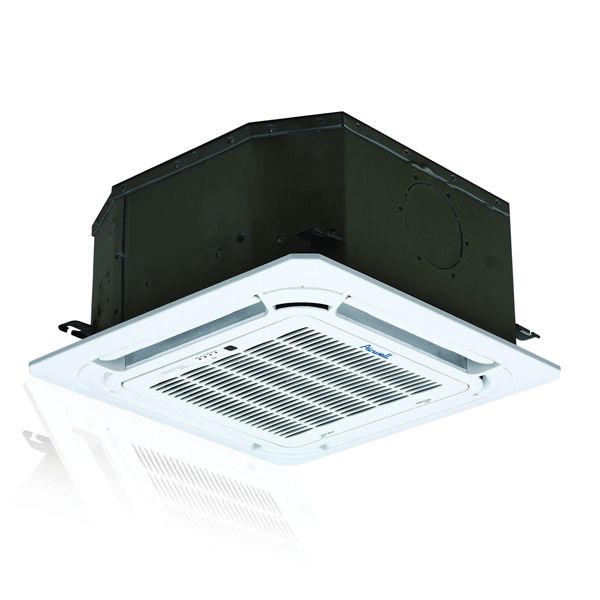

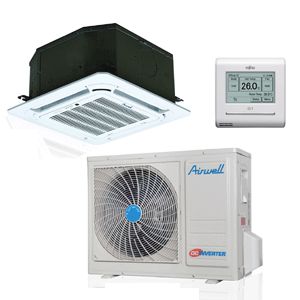

The Airwell CBD012 is a Cassette type unit designed to heat and cool. The Airwell line of cassette type units are available from a 3.5Kw unit to a 12.5Kw unit. Using a DC inverter and Sine Wave Compressor Drive Technology, Airwell Cassettes are perfect for use in offices and at home. Airwell air conditioning heat pump technology, high performance cassette air conditioning split systems for commercial application: offices, shops, meeting rooms, restaurants, hotels, clubs, gyms, and open plan areas. The CoP (Coefficient of Performance) has been dramatically increased, up to 4.0 on some models. This means the system can deliver 4.0 kW of heating, whilst consuming only 1.0kW of electrical power.
Technical Specification:
| Name |
Unit of measurement |
|
| Reversible |
|
OUI |
| IDU + ODU |
|
OUI |
| A++ class |
|
OUI |
| Eurovent |
|
OUI |
| Cooling - Rated capacity |
kW |
3.5 (1.0~4.0) |
| Cooling - Pdesignc |
kW |
3.5 |
| Cooling - Input power |
kW |
1.09 |
| SEER/Energy label |
|
5.6/A+ |
| Cooling - Operating limits |
°C |
-15°/50° Dry bulb |
| Heating - Rated capacity |
kW |
3.5 (1.0~4.1) |
| Heating - Pdesignh (average climate) |
kW |
3.5 |
| Heating - Pdesignh (warmer climate) |
kW |
3.5 |
| Heating - Input power |
kW |
0.97 |
| SCOP/Energy label (average climate) |
|
3.8/A |
| SCOP/Energy label (warmer climate) |
|
4.8/A++ |
| Heating - Operating limits |
°C |
-15°/24° Dry bulb |
| Heating - Capacity @ -10°C |
kW |
3.1 |
| Heating - Capacity @ -15°C |
kW |
2.7 |
| Sound pressure level to 1 m (LS/MS/HS/SS) |
dB(A) |
34/38/42 |
| Sound power level (LS/MS/HS/SS) |
dB(A) |
55 |
| Airflow (LS/MS/HS/SS) |
m³/h |
450/530/650 |
| Dehumidification |
l/h |
1.5 |
| Outline Dimensions (WxHxD) |
mm |
570x260x570 |
| Package Dimensions (WxHxD) |
mm |
655x655x290 |
| Net Weight/Gross Weight |
kg |
16/19 |
| Frame1 - Outline Dimensions (WxHxD) |
mm |
650x50x650 |
| Frame1 - Package Dimensions (WxHxD) |
mm |
715x123x715 |
| Frame1 - Weight |
kg |
2.5/4.5 |
| Frame1 - Part number |
|
7ACVF0566 |

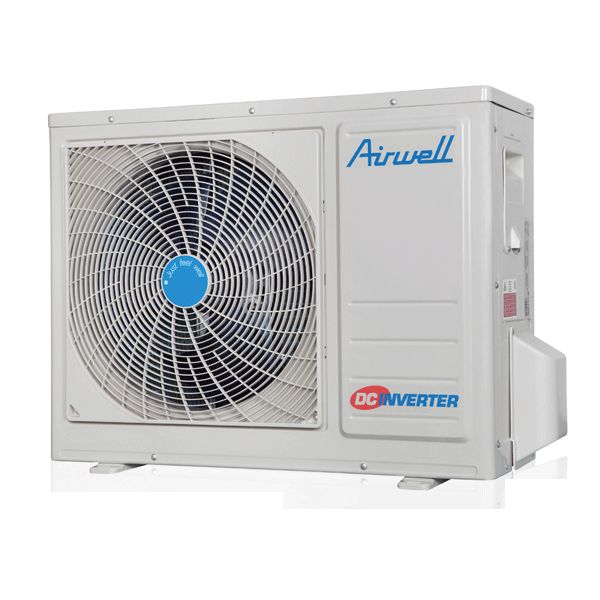

| Outdoor unit monosplit - Part number 1~230V - 50 Hz |
|
7SP062821 |
| Outdoor unit monosplit - Reference 1~230V - 50 Hz |
|
AWAU-YLD012-H11 |
| Others outdoor units compatible |
|
7SP091166;7SP091167;7SP091168;7SP091169 |
| 1~230V - 50 Hz - Power supply side |
|
Outdoor |
| 1~230V - 50 Hz - Power cable section |
mm² |
3x1.5 |
| 1~230V - 50 Hz - Fuse rating am |
A |
16 |
| 1~230V - 50 Hz - Electrical connections |
mm² |
4x1.0 |
| Suction pipe diameter |
inches |
3/8” |
| Liquid pipe diameter |
inches |
1/4” |
| Max length |
m |
20 |
| Max height |
m |
10 |
These air conditioning units must be installed by an F-Gas qualified engineer. We can install the unit for you using our F-Gas Certified Engineers. Please note if you do not select our installation service we will not ship the unit until we have obtained evidence from you that you will have the unit installed by an F-Gas qualified engineer. This is a requirement of the Article 11 (5) EC/517/2014 on fluorinated greenhouse gases and The Fluorinated Greenhouse Gases Regulations 2015.
