This Kit Includes

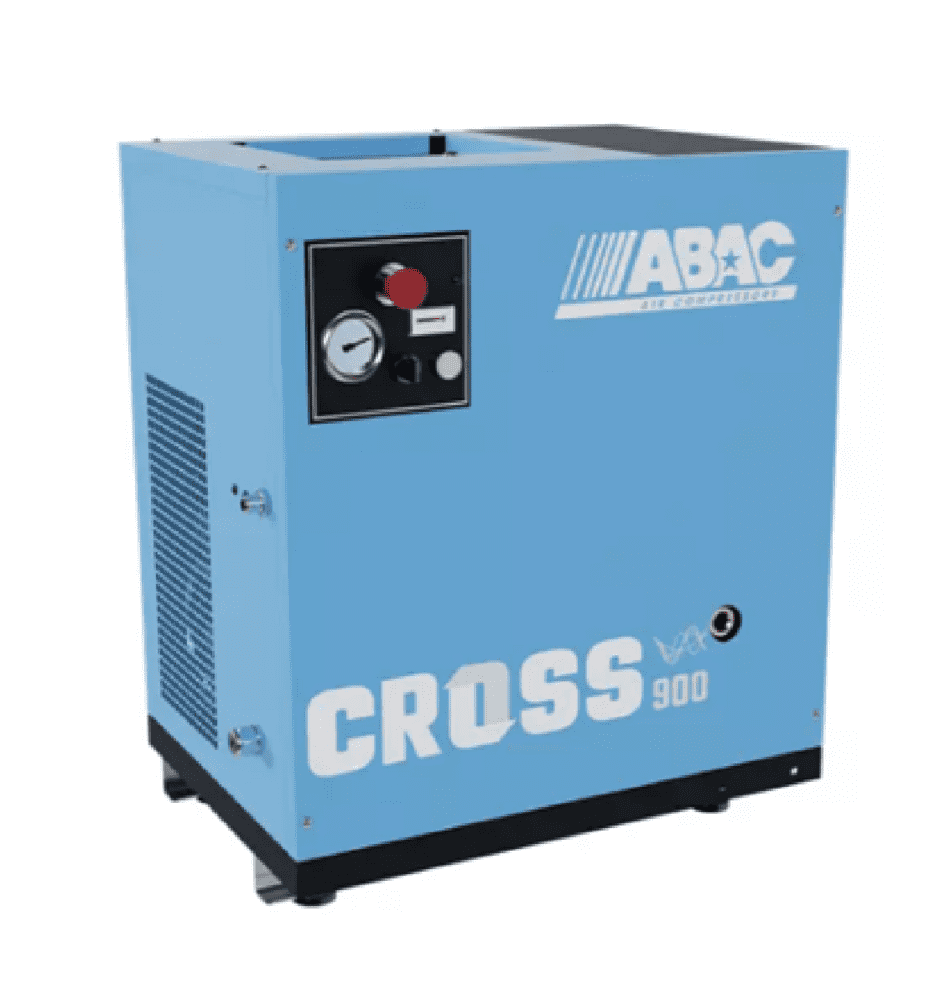

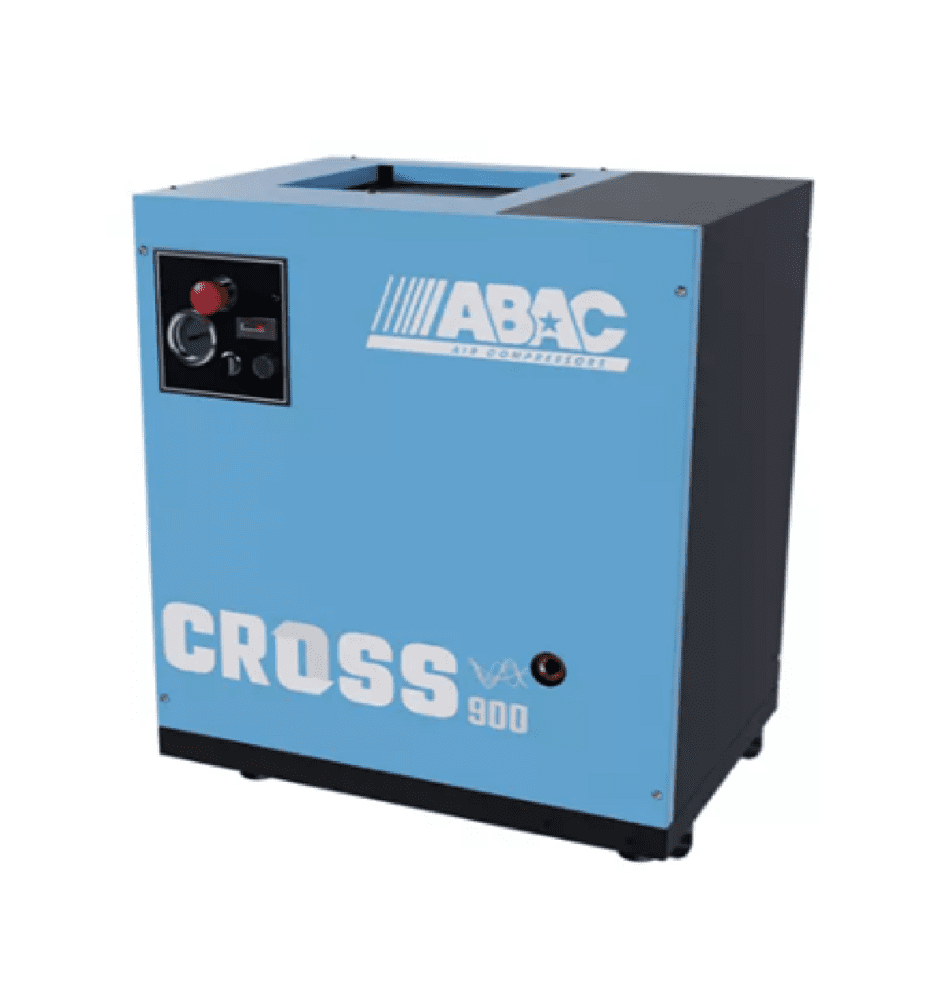

- ABAC CROSS 900 10 400/50 MEBB base-mounted rotary screw air compressor.
Product Description
The ABAC CROSS 900 10 400/50 MEBB is a professional base-mounted rotary screw air compressor for workshops, manufacturing facilities and industrial users. Its direct-drive screw compressor element and 10 HP IE3 three-phase motor provide dependable continuous-duty compressed air with a free air delivery of 848 l/min at a maximum working pressure of 10 bar.
The base-mounted design is suited to installation with an existing air receiver or compressed-air system. Air-cooled operation, low vibration and a compact footprint support practical installation, while the 63 dB(A) sound level allows positioning close to the workplace.
Key Product Features
- Direct-drive rotary screw technology.
- 10 HP (7.5 kW) IE3 motor.
- 848 l/min free air delivery.
- 10 bar maximum working pressure.
- Quiet 63 dB(A) operation.
- Compact, air-cooled, low-vibration design.
- Low maintenance requirements for continuous professional use.
Technical Specifications
| Model |
CROSS 900 10 400/50 MEBB |
| Configuration |
Base Mounted |
| Motor |
10 HP / 7.5 kW IE3 |
| Supply |
400V, three phase, 50 Hz |
| Maximum Working Pressure |
10 Bar |
| Free Air Delivery |
848 l/min |
| Cooling |
Air Cooled |
| Noise Level |
63 dB(A) |
| Dimensions |
690 × 480 × 790 mm |
| Weight |
99 kg |
Applications
- Engineering and fabrication workshops.
- Manufacturing facilities and production lines.
- Automotive garages.
- CNC machinery and pneumatic equipment.
- Industrial maintenance.
- Commercial compressed-air systems.
- Continuous-duty industrial applications.
Why Choose This Product?
The ABAC CROSS 900 provides a reliable source of compressed air for professional and industrial environments. Direct-drive rotary screw technology supports continuous-duty operation, while the IE3 motor and energy-efficient design can help reduce long-term operating costs. Its base-mounted configuration offers flexibility when connecting to an existing air receiver or compressed-air system. The compact footprint helps conserve floor space, and the low-vibration, air-cooled construction is suited to practical workshop installation. With a 63 dB(A) sound level, it can be positioned close to points of use while maintaining a comfortable working environment. Low maintenance requirements further support dependable operation and uptime.
Disclaimer
Product information and technical specifications are based on the supplier information provided. Please confirm suitability, installation requirements and electrical compatibility before purchase.
