This Kit Includes

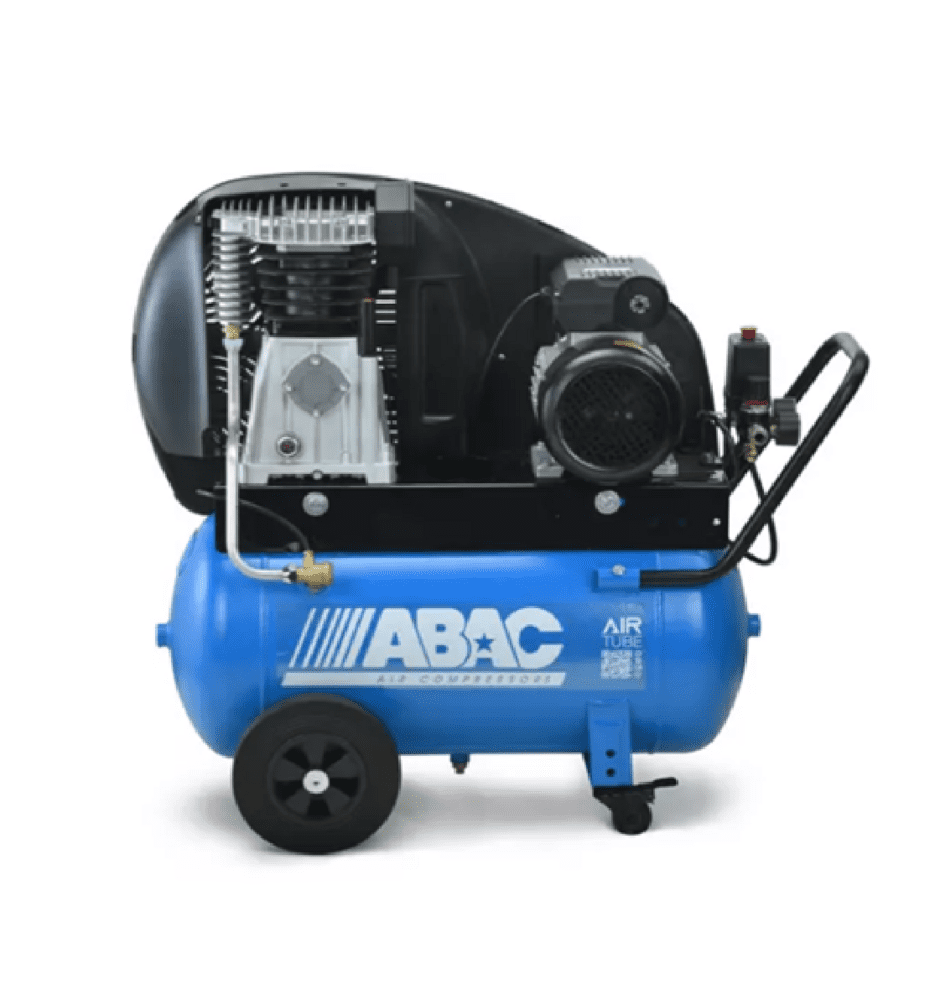

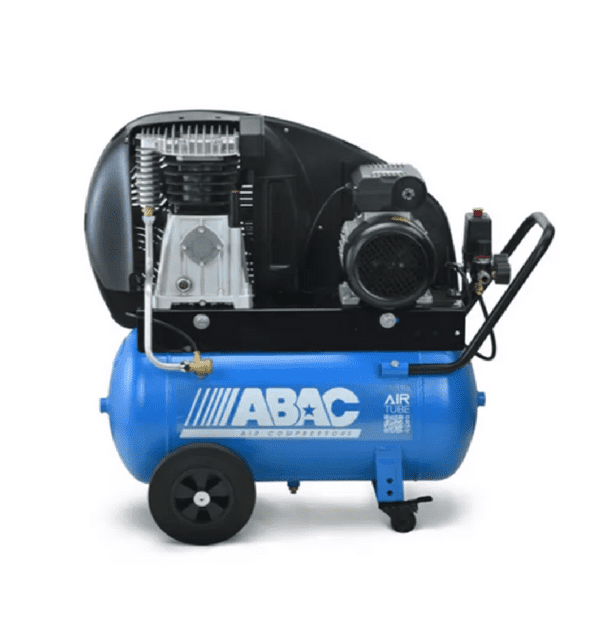

ABAC A39B 90 CM3 EXPORT tank-mounted belt-driven oil-lubricated air compressor with a 90-litre horizontal air receiver.
Product Description
The ABAC A39B 90 CM3 EXPORT is a professional piston air compressor designed for workshops, garages and light industrial applications. Its proven A39B oil-lubricated pump and 3 HP electric motor provide reliable compressed air, while the belt-driven transmission operates at a low pump speed to support durability and service life.
The 90-litre horizontal receiver provides a useful reserve of compressed air for pneumatic tools and professional workshop equipment. Air-cooled operation, a large aftercooler and an industrial pressure regulator support practical everyday use.
Key Product Features
- 3 HP, 2.2 kW electric motor
- 90-litre horizontal air receiver
- 393 l/min air displacement
- 10 Bar maximum working pressure
- Low-speed belt drive and air-cooled operation
- Heavy-duty industrial construction
- Large aftercooler and industrial pressure regulator
- CE approved
Technical Specifications
| Supply voltage |
230V single phase |
| Pump speed |
1075 RPM |
| Maximum pressure |
10 Bar / 145 PSI |
| Air displacement |
393 l/min / 23.6 m³/h |
| Rated current |
8 Amps |
| Sound pressure level |
75 dB(A) |
| Dimensions |
1120 × 530 × 976 mm |
Applications
Suitable for automotive garages, engineering and agricultural workshops, fabrication facilities, maintenance departments, spray painting, tyre inflation, pneumatic hand tools, small manufacturing businesses and general industrial applications.
Why Choose This Product?
The ABAC A39B 90 CM3 EXPORT combines a proven belt-driven pump with a robust 3 HP motor and substantial 90-litre receiver. Its low pump speed helps support dependable long-term performance and reduce wear, while the belt-driven transmission assists cooling and operational efficiency. With 393 l/min air displacement and a maximum pressure of 10 Bar, it is suited to demanding pneumatic workshop tools and a broad range of professional applications. The air-cooled design, large aftercooler, industrial pressure regulator and low-maintenance construction make it a practical choice for garages, engineering workshops and users requiring reliable compressed air for everyday work.
Disclaimer
Product specifications and applications are based on the supplier information provided and should be checked before purchase to confirm suitability for the intended installation.
