Introduction:

The 120FB80/3V is a robust single-shaft fan motor from the 48 Series, engineered for reliability in demanding ventilation and refrigeration applications. It features a compact frame, smooth ball-bearing operation, and a universal mounting design. With a 230V~50Hz/60Hz input, it’s ideal for consistent performance across various fan and air movement assemblies in HVAC and industrial systems.

Key Product Features:

• Ball bearing design for extended service life and quiet operation

• Single shaft configuration, ideal for axial fan and impeller drive

• Universal mounting base for flexible installation

• Robust construction suitable for commercial ventilation systems

• Thermal overload protection built-in for added safety

• Energy-efficient design reduces power consumption

• Operates on standard 230V~50Hz/60Hz supply

• Suitable for both blowing and suction use depending on fan orientation

Technical Specifications:

• Model: 120FB80/3V

• Voltage: 230V~50Hz/60Hz

• Bearing Type: Ball Bearing

• Shaft Configuration: Single Shaft

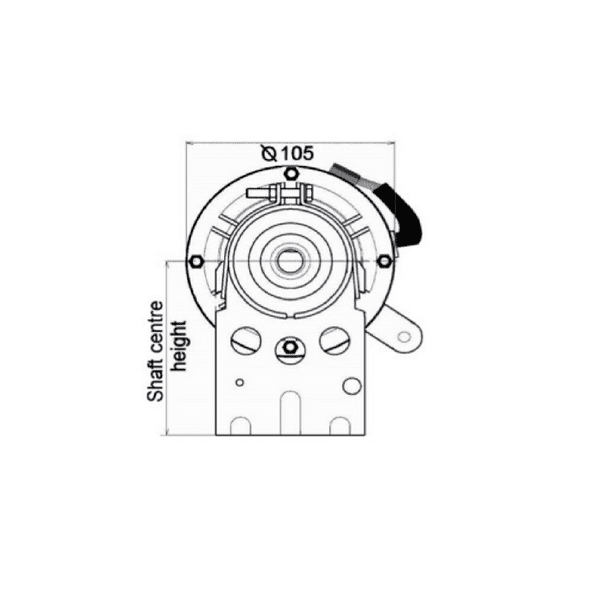

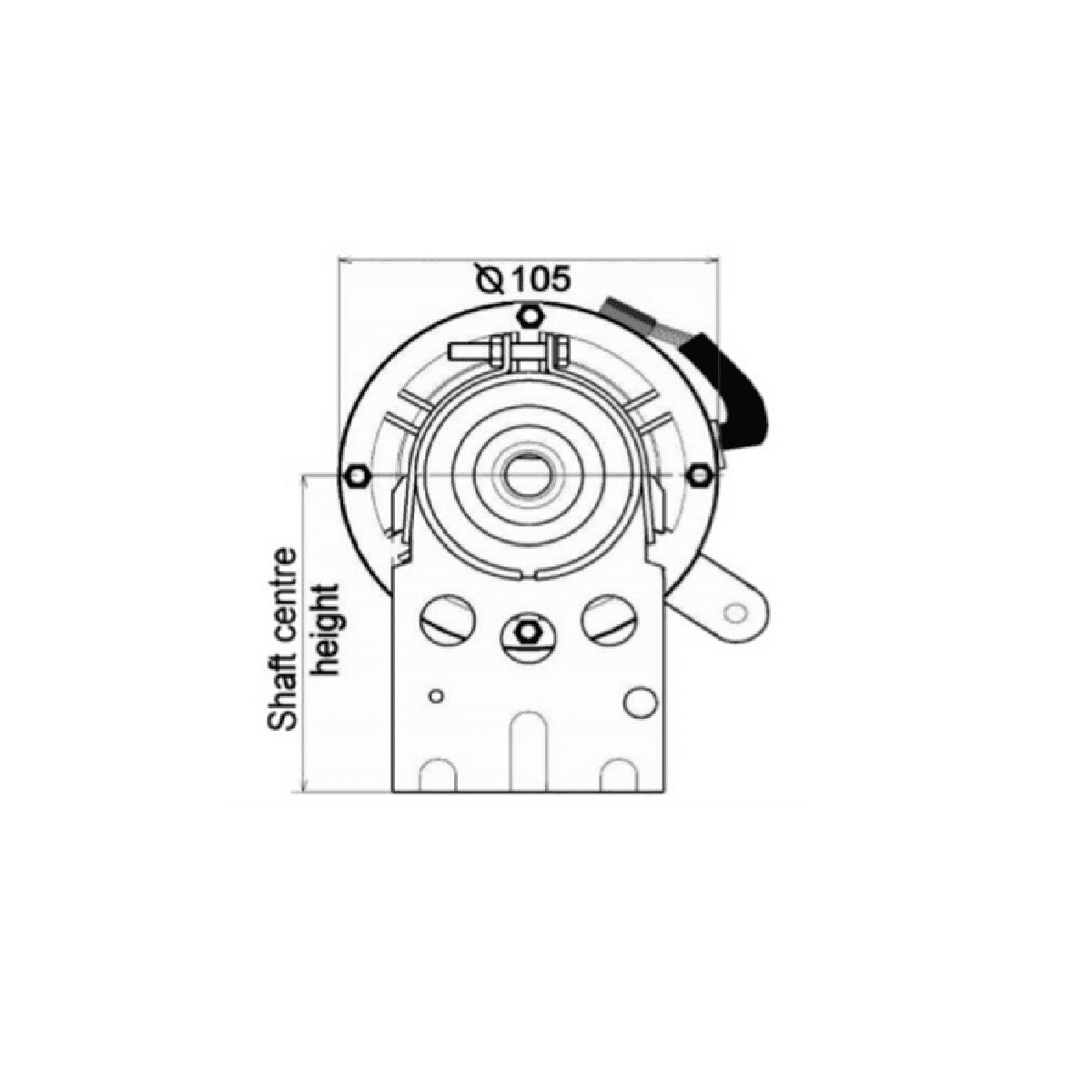

• Frame Size: 120mm

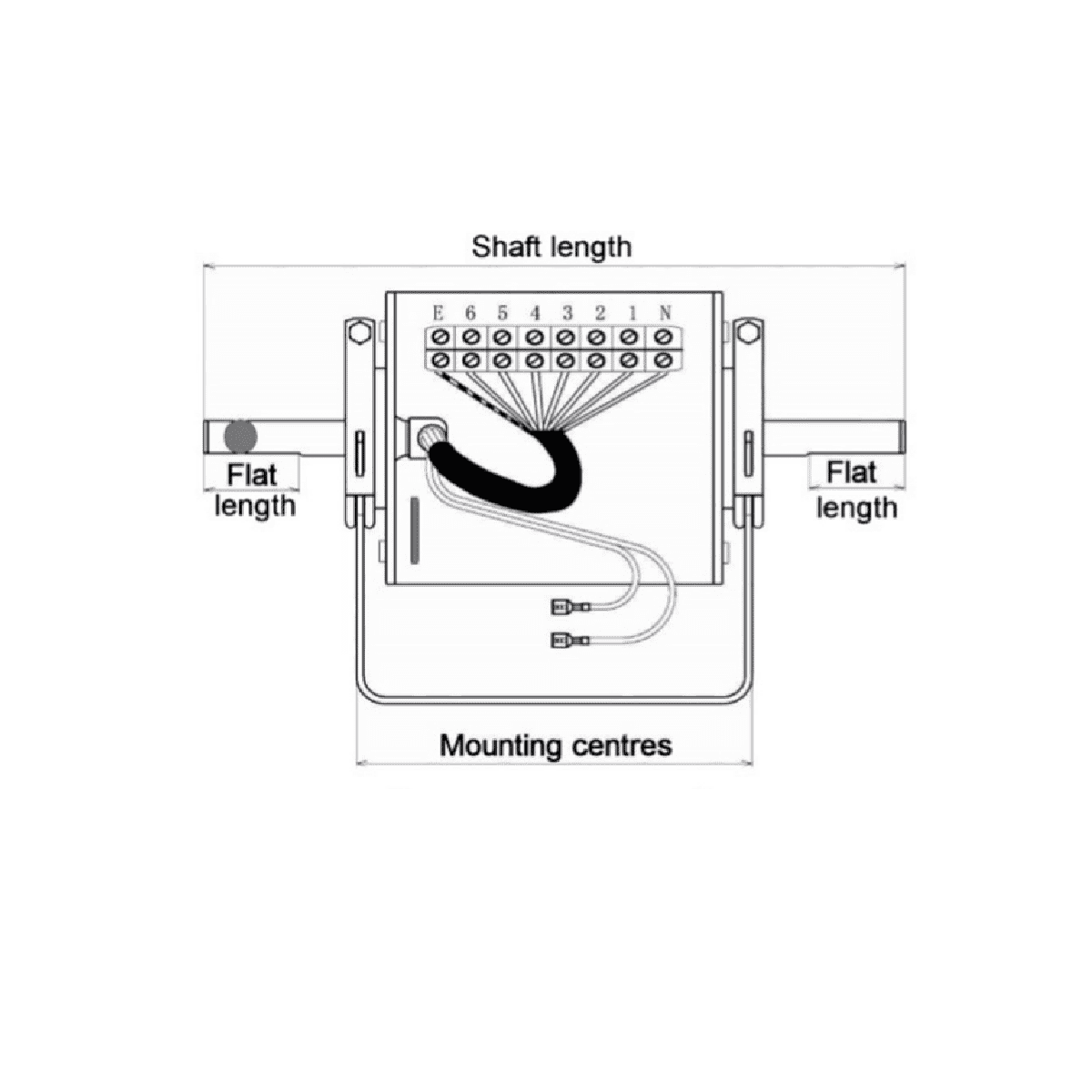

• Mounting Type: Foot-mounted base

• Rotation Direction: Clockwise or counter-clockwise (reversible)

• Construction: Durable metal housing

• Motor Type: Capacitor-start induction motor

Applications:

• Condenser fans

• Air curtains

• Refrigeration units

• Commercial extract fans

• Agricultural ventilation systems

Disclaimer:

Always ensure compatibility with your fan assembly. Professional installation recommended.
