Introduction:

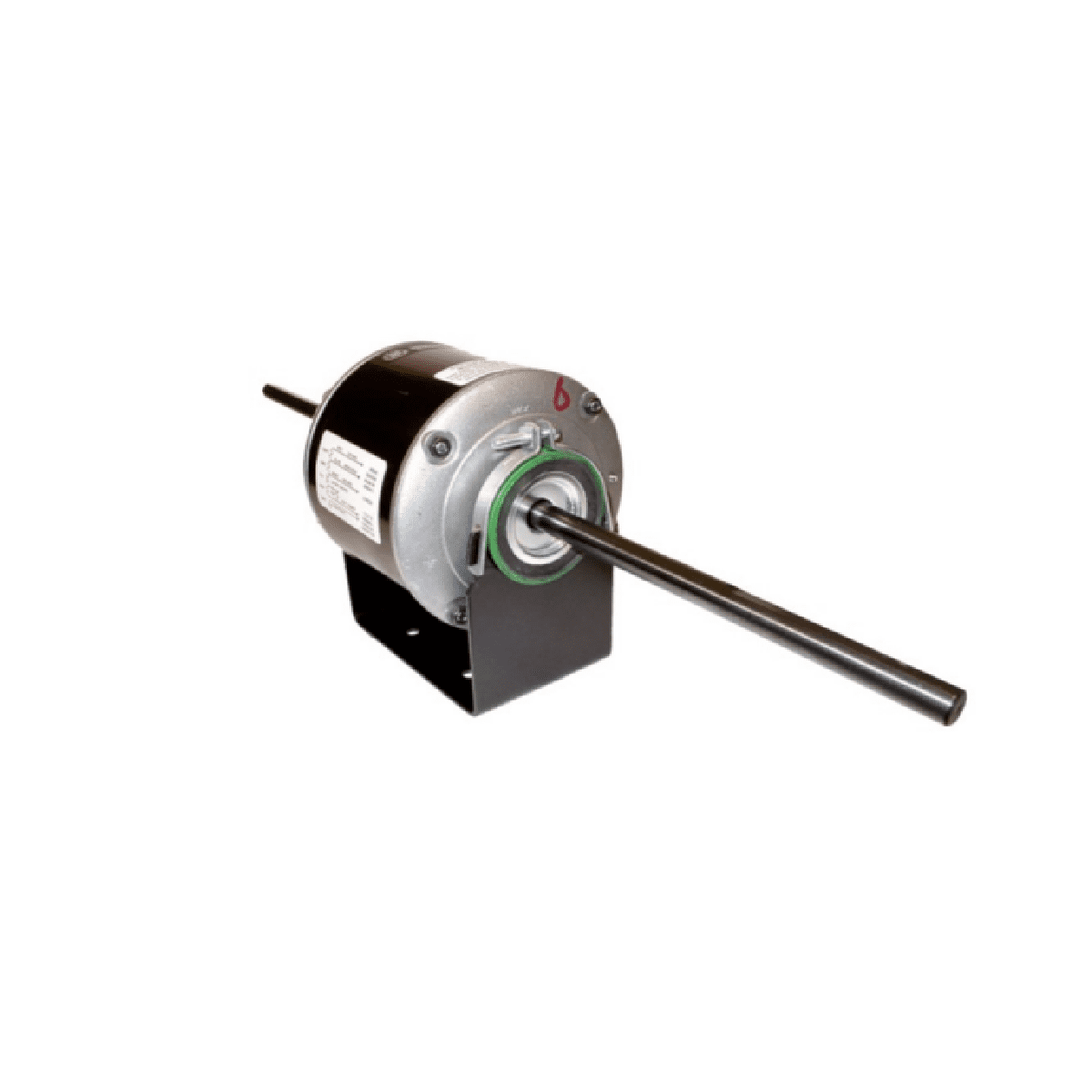

The 120FB125/3V is a powerful ventilated fan motor from the 48 Series, designed for high-performance HVAC and air movement systems. With a 125W motor and three-speed control, this unit offers reliable and efficient operation across a variety of industrial and commercial environments. It operates at 230V~50Hz/60Hz and features durable ball bearings and flying leads for easy connection.

Key Product Features:

• 125W multi-speed ventilated fan motor

• Runs at 230V~50Hz/60Hz

• Three-speed configuration for versatile air control

• Shaft diameter: 12.7 mm (1/2")

• Shaft length: 565 mm with 80 mm flat section

• Ball bearing construction for long-lasting performance

• Ventilated body design for thermal protection

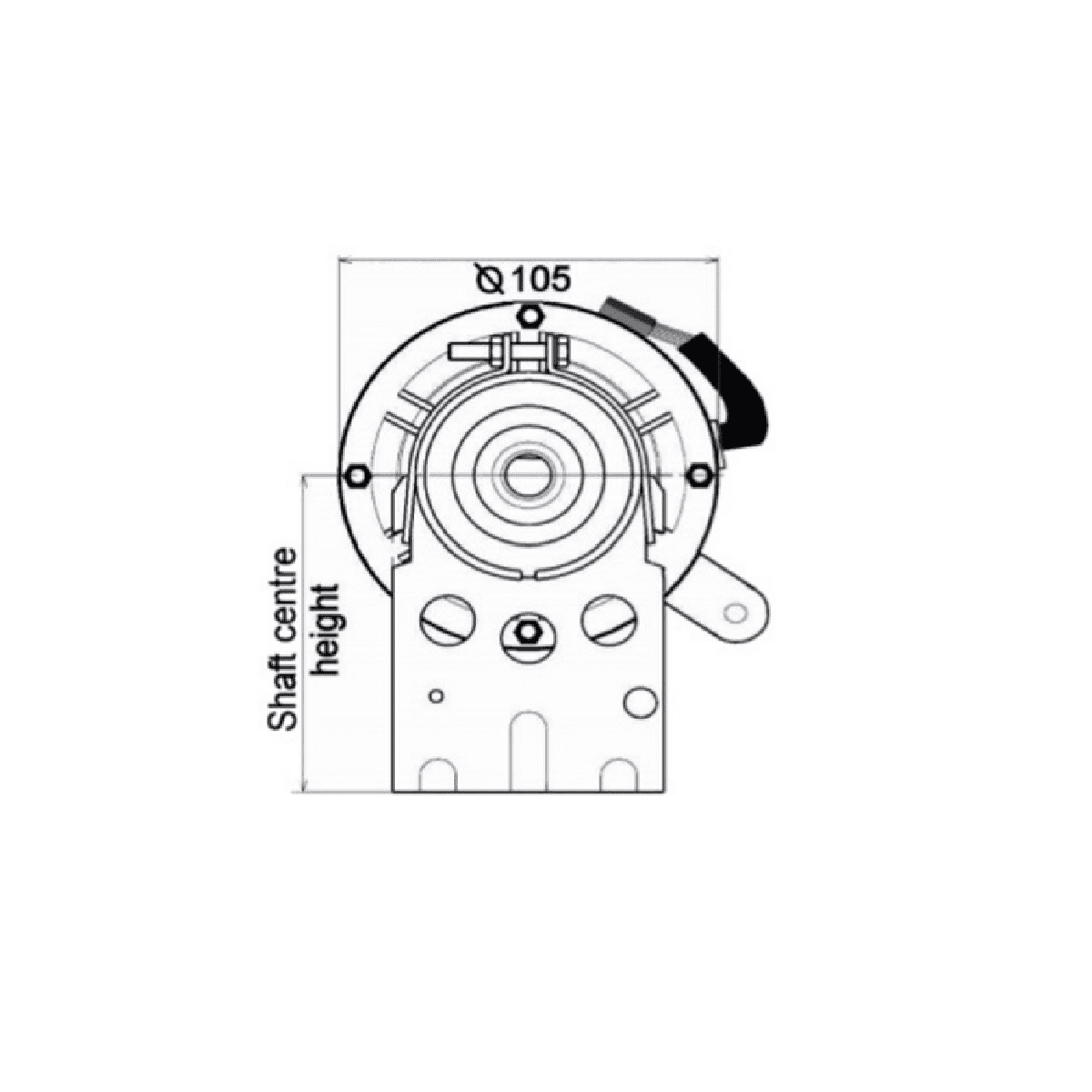

• NBS shaft height for standard mounting compatibility

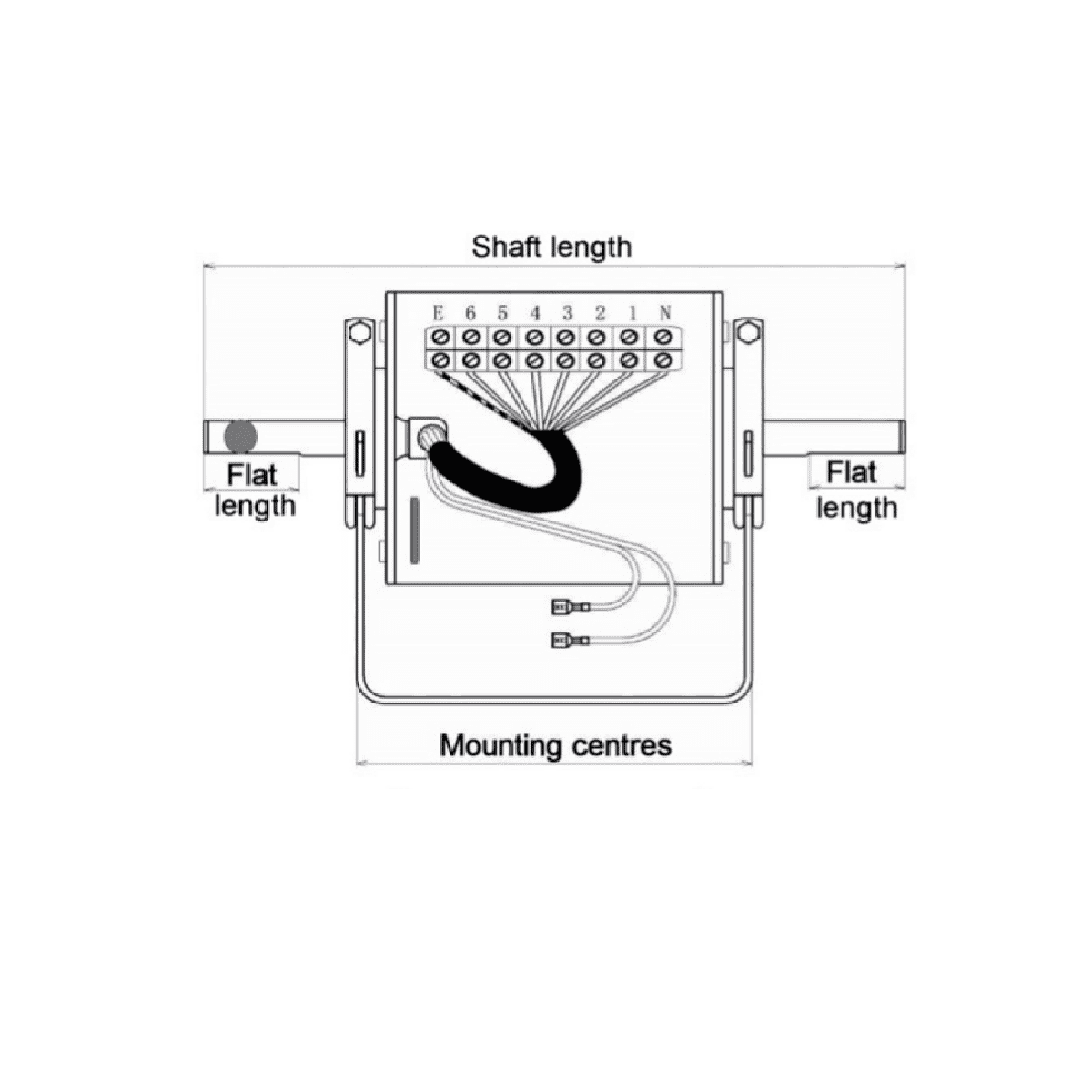

• 123 mm mount centres

• 1100 mm flying leads for easy installation

Technical Specifications:

• Model: 120FB125/3V

• Voltage: 230V~50Hz/60Hz

• Power: 125W

• No. of Speeds: 3

• Shaft Diameter: 12.7 mm (1/2")

• Shaft Length: 565 mm

• Flat Section: 80 mm

• Body Type: Ventilated

• Shaft Height: NBS

• Mount Centres: 123 mm

• Lead Length: 1100 mm

• Bearings: Ball bearing

Applications:

• Axial fans for commercial and industrial HVAC

• Refrigeration units

• Ventilation fans and duct blowers

• Replacement motor for OEM fan systems

Disclaimer:

Always ensure that installation and servicing are performed by a qualified technician in accordance with local regulations and manufacturer instructions.
