Introduction:

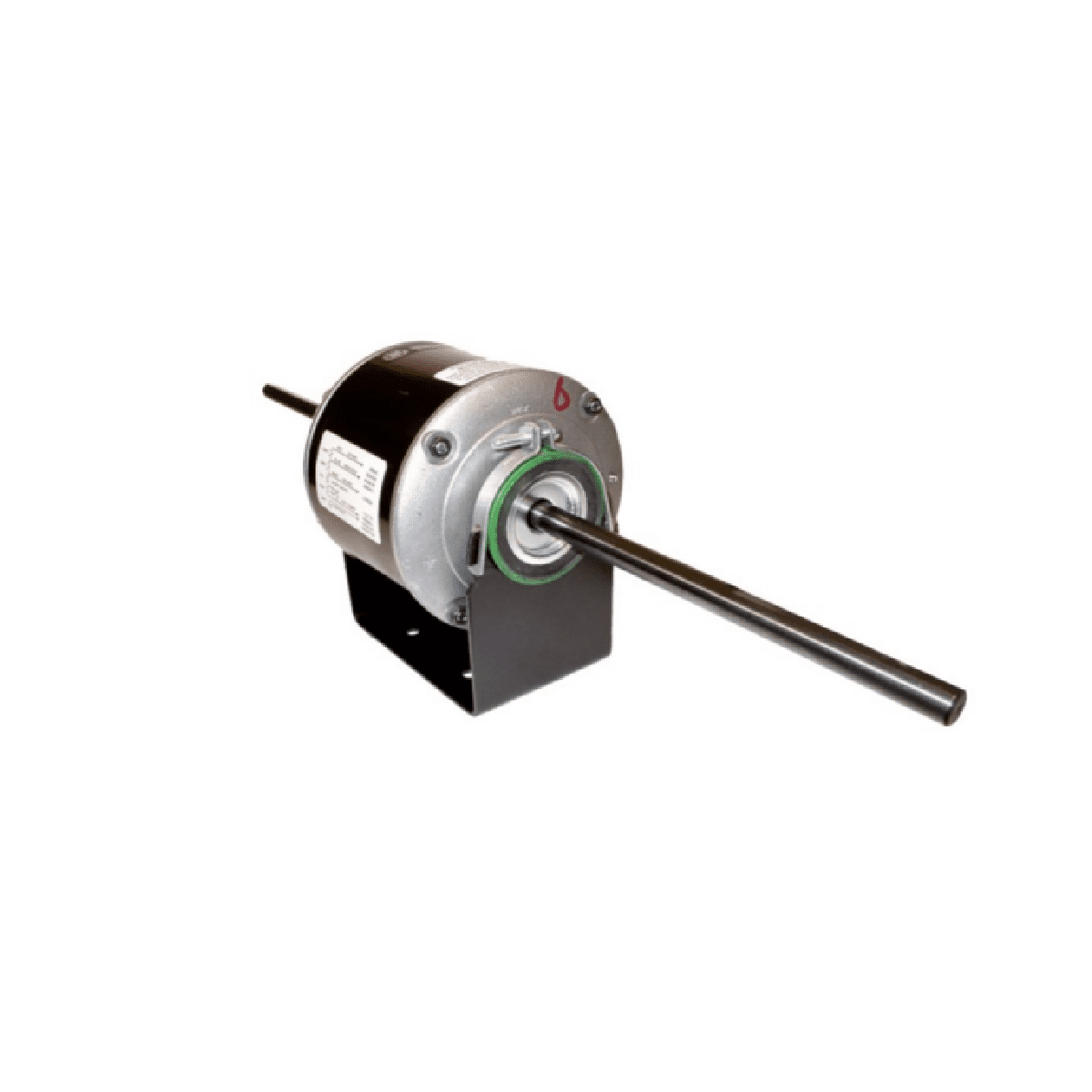

The 120FB100/5V is a powerful fan motor from the 48 Series range, engineered for consistent performance in air movement systems. Designed with a single shaft, ball bearing configuration and built for 230V~50Hz/60Hz operation, this unit is ideal for driving axial fans in ventilation, refrigeration, and commercial air handling applications.

Key Product Features:

• Single shaft configuration with ball bearings for extended service life

• Designed for quiet, reliable operation with minimal vibration

• Supplied with foot mounting for fast, stable installation

• 230V~50Hz/60Hz power supply for wide operational compatibility

• Reversible direction for flexible air movement

• Suitable for both blow-through and draw-through fan systems

• Heavy-duty frame ideal for continuous commercial or industrial use

• Thermal protection integrated for motor safety

• Fully enclosed design resists dust ingress

• Ideal for OEM, replacement, and upgrade use

Technical Specifications:

• Model: 120FB100/5V

• Voltage: 230V~50Hz/60Hz

• Shaft: Single Shaft

• Bearing Type: Ball Bearing

• Mounting: Foot-mount

• Rotation: Reversible

• Construction: Metal housing with protective finish

• Application Type: Air movement / axial fan drive

Applications:

• Commercial HVAC systems

• Axial and duct fan assemblies

• Refrigeration condenser units

• Dehumidifiers and evaporators

• Air curtains and heat recovery units

Disclaimer:

This motor must be installed by a qualified technician in accordance with manufacturer and local safety regulations.
