Introduction:

The 48 Series 120FB100 is a high-torque single-shaft fan motor built for heavy-duty air movement applications. Designed with precision ball bearings and a sturdy foot-mount base, this motor delivers reliable performance across ventilation, refrigeration, and air-handling systems. Operating on 230V~50Hz/60Hz, it’s ideal for consistent airflow in demanding environments.

Key Product Features:

• Single shaft fan motor with durable ball bearings for longevity

• High-performance frame with reinforced housing

• Operates on 230V~50Hz/60Hz supply for universal compatibility

• Foot-mounted for stable and easy installation

• Suitable for both blowing and suction functions

• Thermal overload protection for safety

• Reversible rotation to suit different fan applications

• Quiet operation with low vibration

• Built to withstand continuous commercial use

• Compatible with axial fans, condensers, and evaporator units

Technical Specifications:

• Model: 120FB100

• Voltage: 230V~50Hz/60Hz

• Bearing Type: Ball Bearing

• Shaft Configuration: Single Shaft

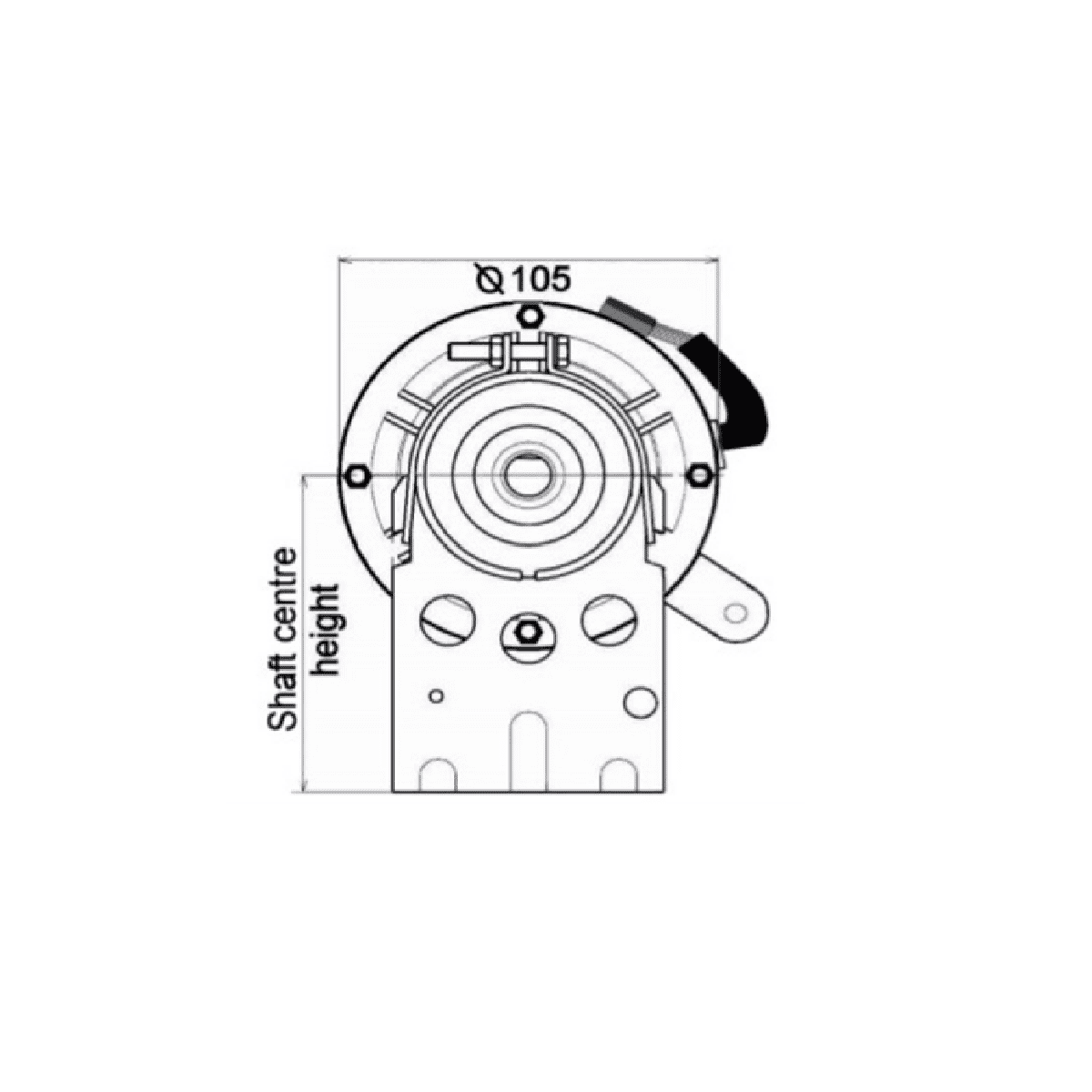

• Frame Size: 120mm

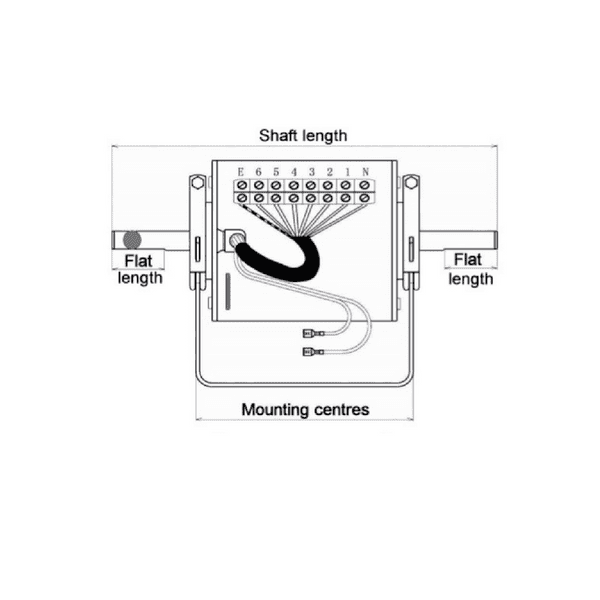

• Mounting Type: Foot-mounted base

• Rotation Direction: Reversible

• Construction: High-grade metal frame

• Motor Type: Induction motor with capacitor start

Applications:

• Commercial refrigeration systems

• HVAC duct fans and axial units

• Agricultural cooling and extraction systems

• Industrial ventilation units

• Air curtains and dehumidification systems

Disclaimer:

Installation must be carried out by a qualified technician. Ensure motor specifications match application requirements.
