This Kit Includes:
1 × Olympus JetFlow OLY-C40/220 Portable Ventilator & Extractor Fan 400mm 240V~50Hz - 400mm Heavy Duty Ventilation Fan 240V – Powerful Dust & Fume Extraction
Optional: 10 metres FL40 Fire-Proof Ducting (selectable option)
High-Performance Industrial Ventilation Built for Demanding Environments

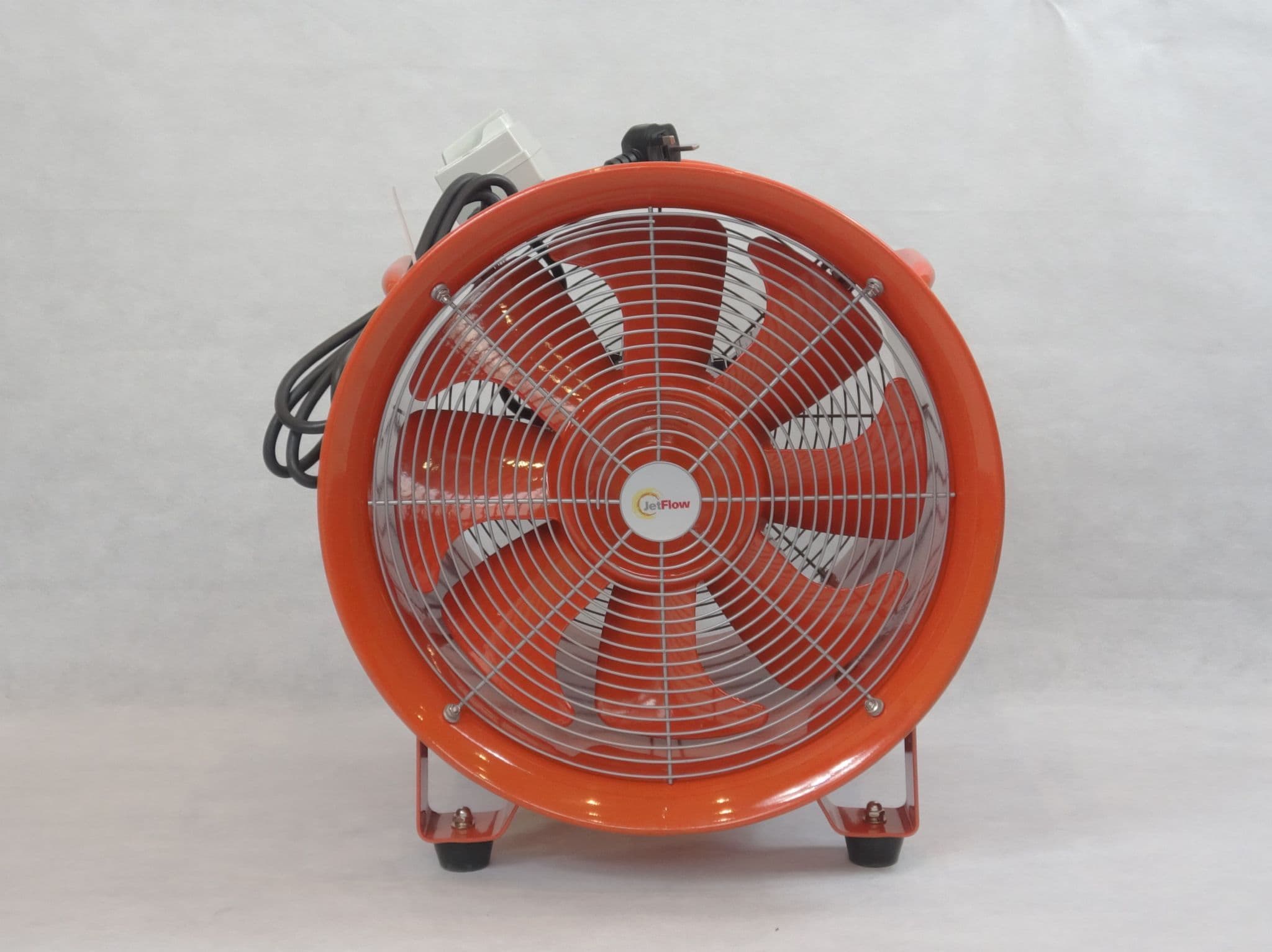

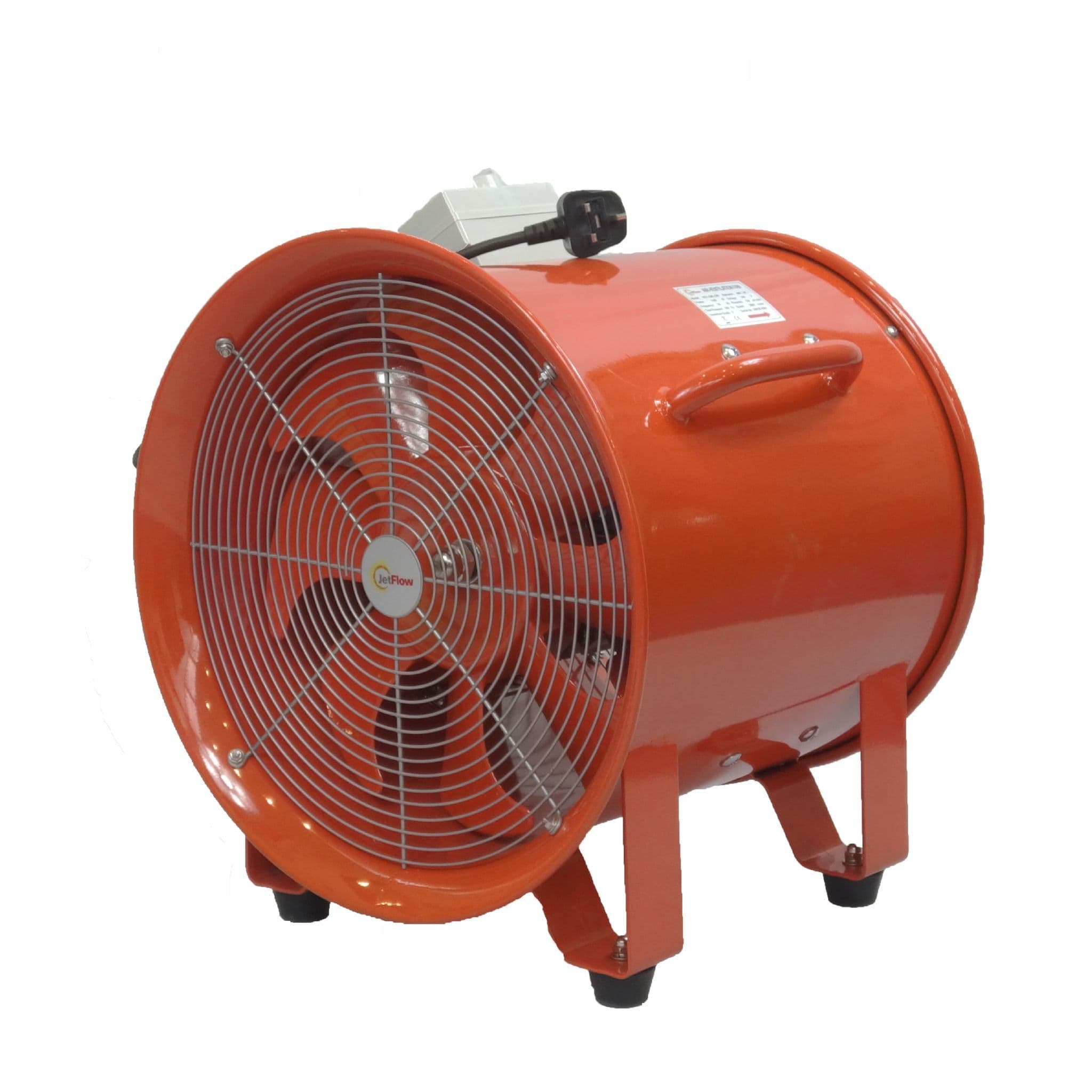

The Olympus JetFlow OLY-C40/220 is a robust, high-capacity portable ventilator and extractor fan engineered for powerful airflow in challenging industrial and commercial environments. With a 400mm diameter and impressive 6300m³/hr airflow, this unit is designed to deliver reliable ventilation, extraction and air movement straight out of the box.
Supplied with a fitted plug for quick deployment, the OLY-C40/220 is ideal for sites requiring immediate, effective airflow without complex installation. Its durable steel construction and optimised blade design ensure consistent performance, even in harsh operating conditions.
Key Product Features:
- 400mm (16") high-capacity portable ventilator and extractor fan
- Powerful airflow of 6300m³/hr for rapid air movement
- High static pressure of 700 Pa for effective ducting applications
- 220–240V~50Hz single-phase supply with fitted 13A plug

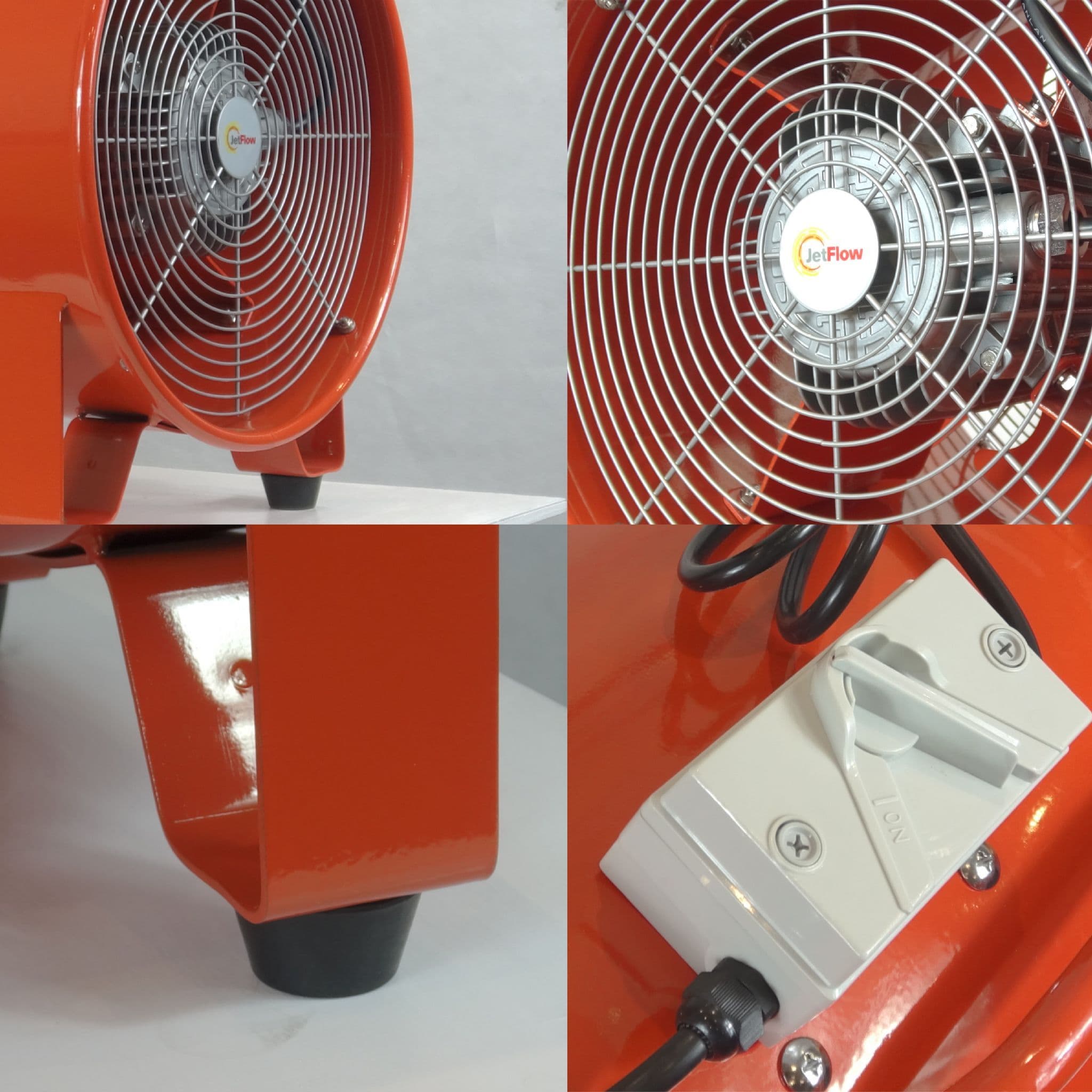

- Durable 1.5mm powder-coated steel casing for industrial use
- Metal sickle-style blades optimised for airflow and efficiency
- Lightweight aluminium motor for reduced overall weight
- Rubber-mounted feet for stability and vibration reduction

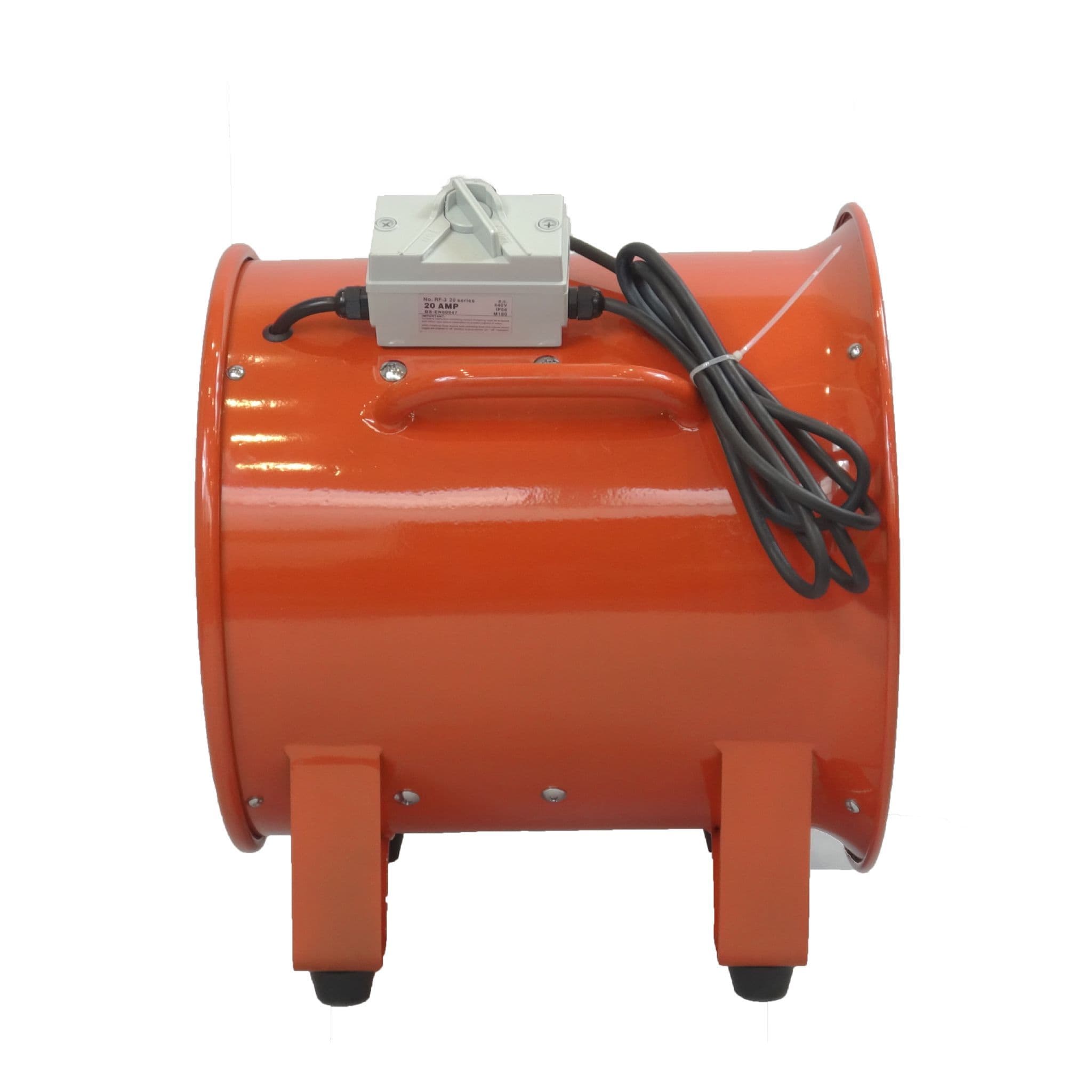

- Reinforced carry handle for easy transport and positioning
- Suitable for both air extraction and fresh air supply

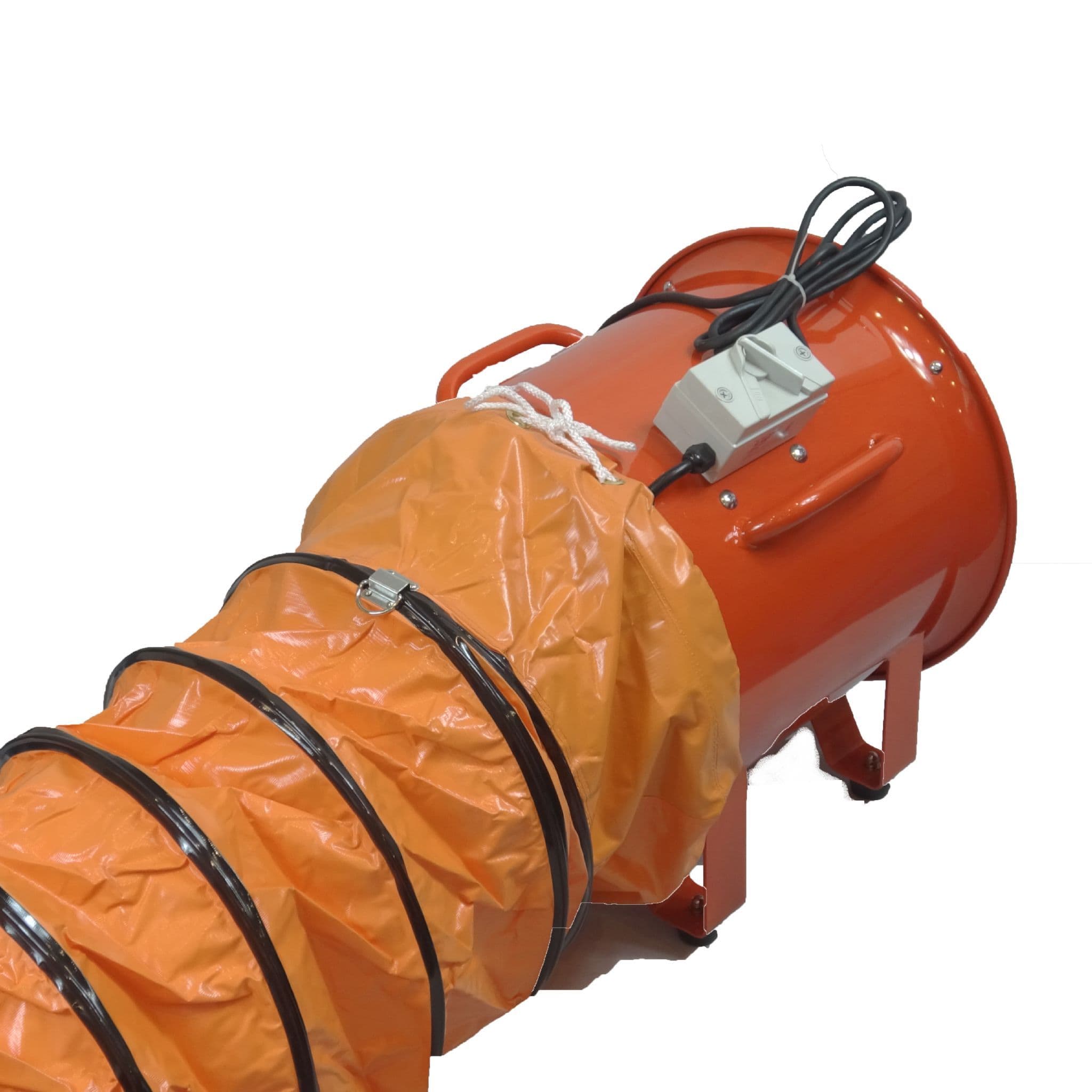

- Compatible with optional 10m fire-proof ducting for extended reach
Ideal Applications:
- Construction sites and temporary ventilation setups
- Tunnel and confined space ventilation
- Workshops, factories and manufacturing plants
- Basements and enclosed environments
- Dust, smoke and fume extraction zones
- Sewage, drainage and utility projects
- Agricultural buildings and grain storage
- Shipyards and heavy industrial sites
- Commercial kitchens and hospitality environments
- Warehouses, logistics hubs and retail spaces
Technical Specifications:

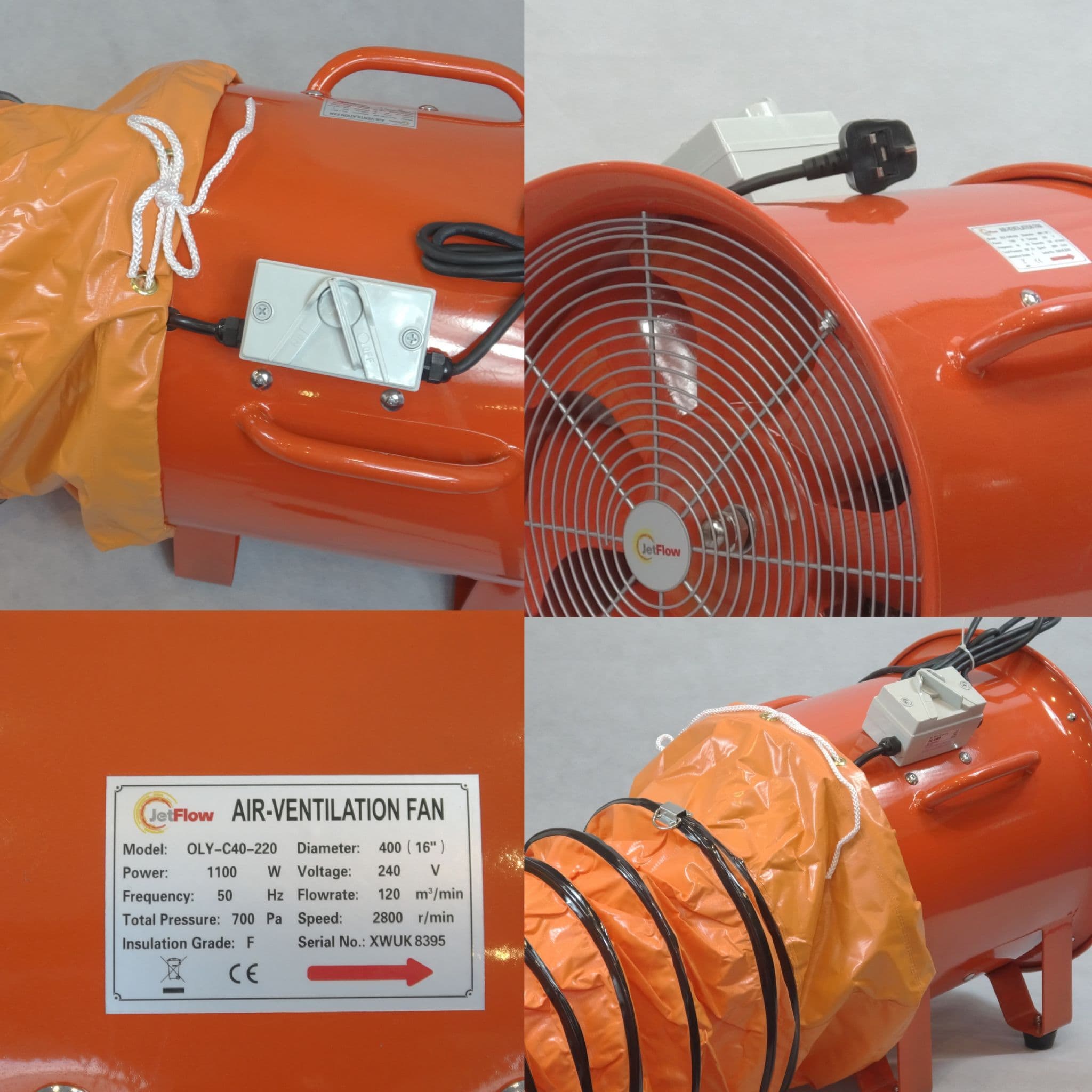

- Product Type: Portable Ventilator & Extractor Fan
- Model: OLY-C40/220
- Diameter: 400mm (16")
- Airflow: 6300m³/hr
- Static Pressure: 700 Pa
- Power Supply: 220–240V~50Hz
- Running Current: 4.3A
- Construction: 1.5mm Powder-Coated Steel
- Motor: Aluminium Housing
- Weight: 26.5kg
- Dimensions: 540mm × 490mm × 470mm

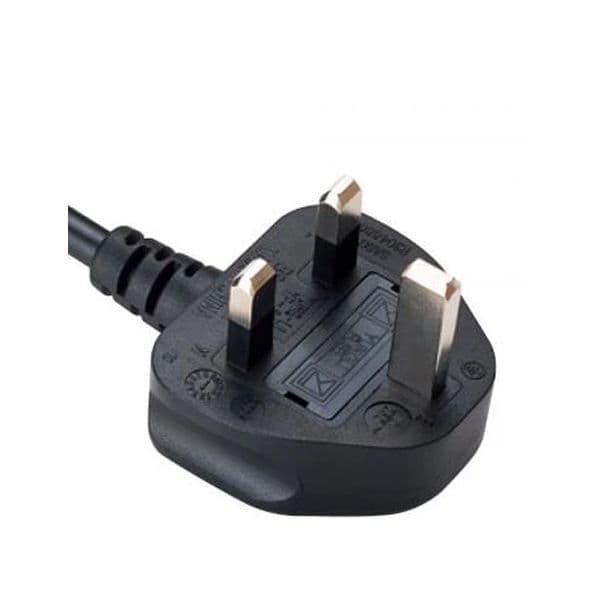

- Plug Type: UK 13A Fitted Plug
PDF Data Sheet:
Video Data:
Video Review: How Tough ?
