This Kit Includes:
1 × Olympus JetFlow OLY-C40/110 Portable Ventilator & Extractor Fan 400mm 110V~50Hz - 400mm Heavy Duty Site Ventilation Fan 110V – Maximum Airflow for Dust & Fumes (OLYC40/110)
Optional: 10 metres FL40 Stow-and-Flow Ducting (selectable option)
Heavy-Duty Site Ventilation with Powerful Airflow and Rugged Reliability
The Olympus JetFlow OLY-C40/110 is a high-performance portable ventilator and extractor fan engineered for demanding construction and industrial environments. With a 400mm diameter and powerful 6300m³/hr airflow, this unit delivers exceptional ventilation and extraction capability, making it ideal for confined spaces and heavy-duty site use.
Supplied with a 110V yellow plug for site safety compliance, the OLY-C40/110 is built for immediate deployment on construction sites, tunnels and commercial applications where reliable airflow is critical. Its durable construction and optimised blade design ensure consistent performance in harsh working conditions.
Key Product Features:
- 400mm (16") portable ventilator and extractor fan
- High airflow output of 6300m³/hr for rapid ventilation
- Strong static pressure of 700 Pa for effective ducting performance

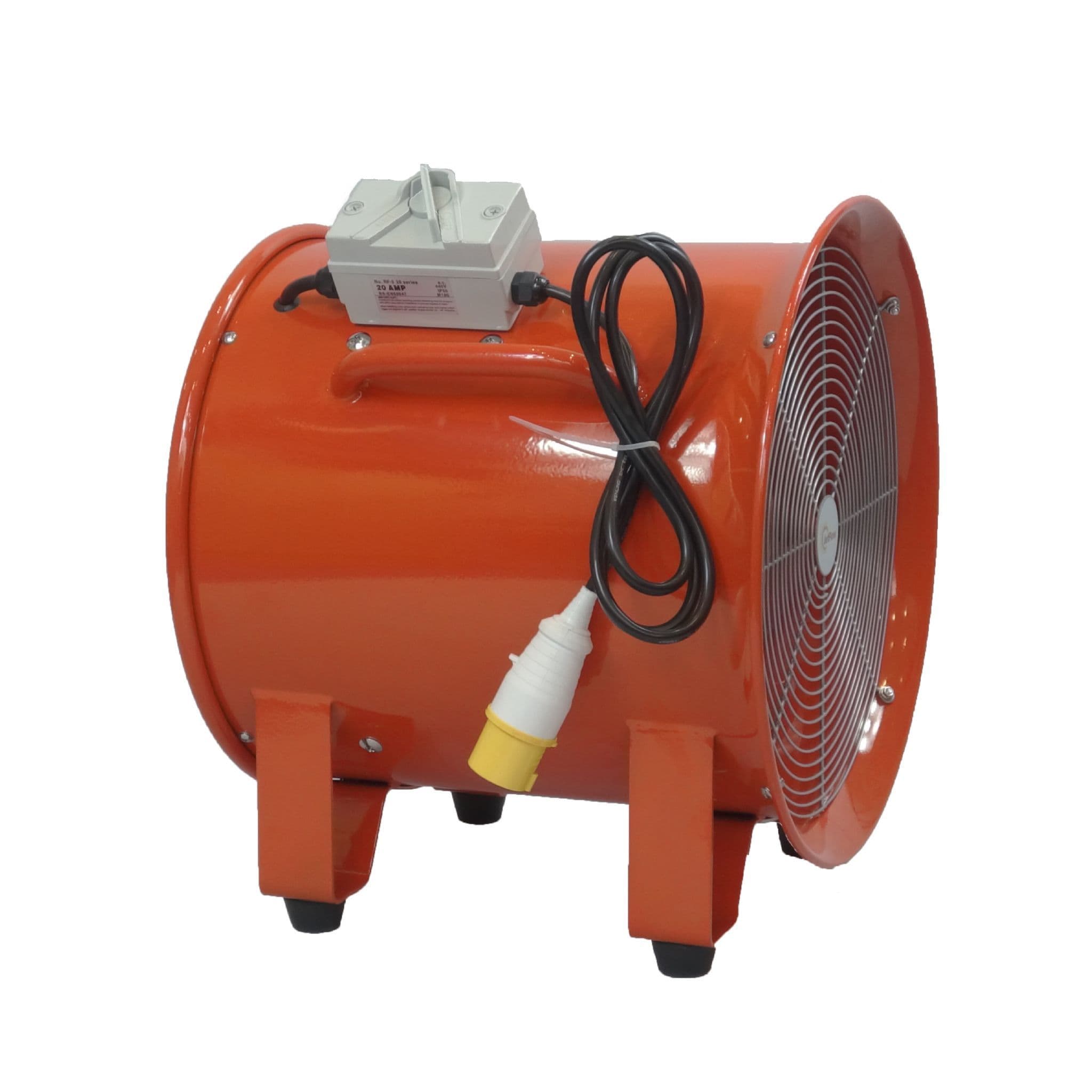

- 110V~50Hz site-safe power supply with fitted yellow plug
- Robust 1.5mm powder-coated steel construction
- Metal sickle-style blades for optimised airflow and efficiency
- Lightweight aluminium motor for improved portability
- Rubber-mounted feet for stability and reduced vibration
- Reinforced carry handle for easy transport on site
- Suitable for both air extraction and fresh air supply

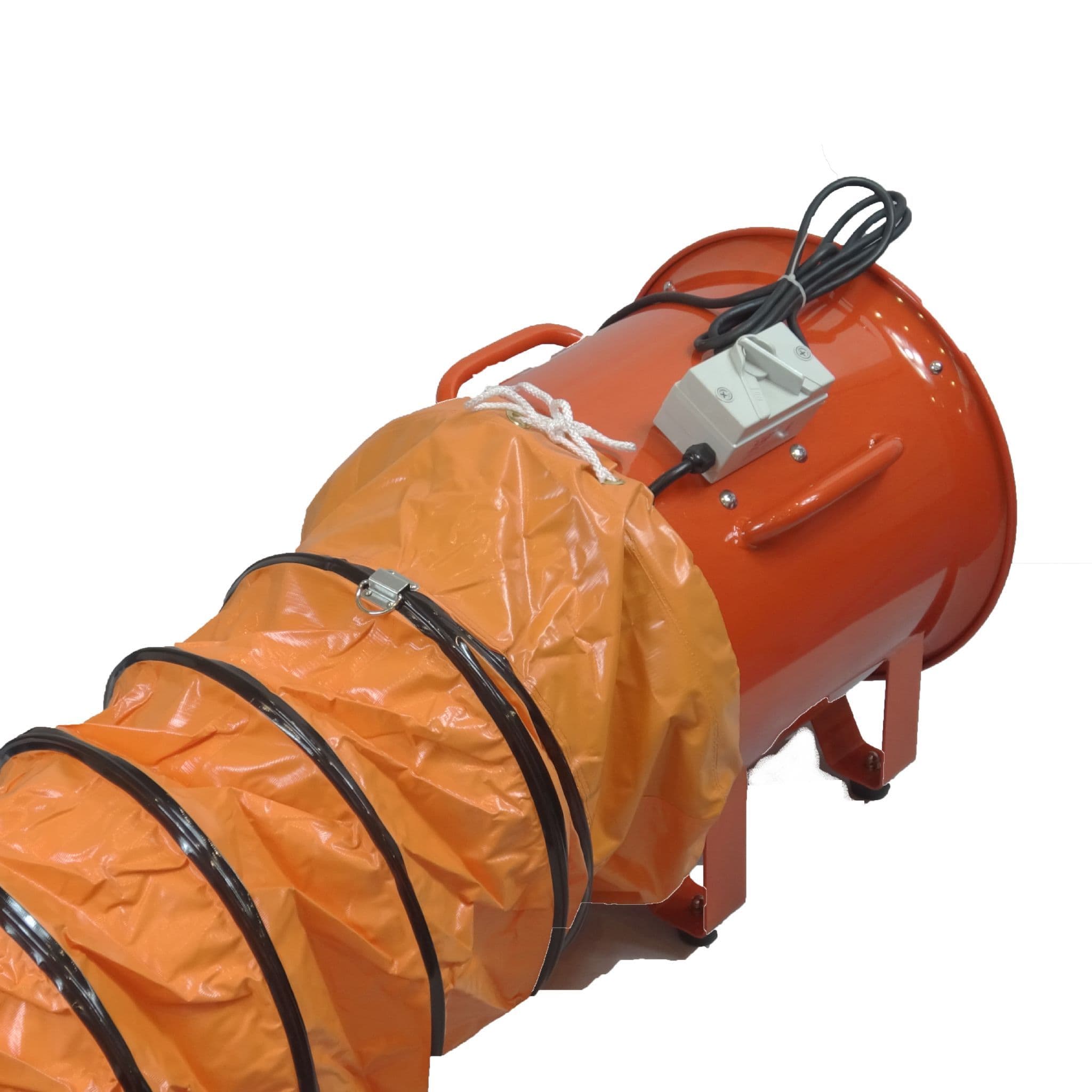

- Compatible with optional 10m ducting for extended reach
- Designed for continuous operation in demanding environments
Ideal Applications:
- Construction sites and temporary ventilation setups
- Tunnel and confined space ventilation
- Workshops and manufacturing facilities
- Basements and enclosed areas
- Dust, smoke and fume extraction
- Sewage and drainage works
- Agricultural and grain storage environments
- Shipyards and heavy industrial sites
- Commercial kitchens and hospitality settings
- Warehouses, logistics hubs and retail spaces

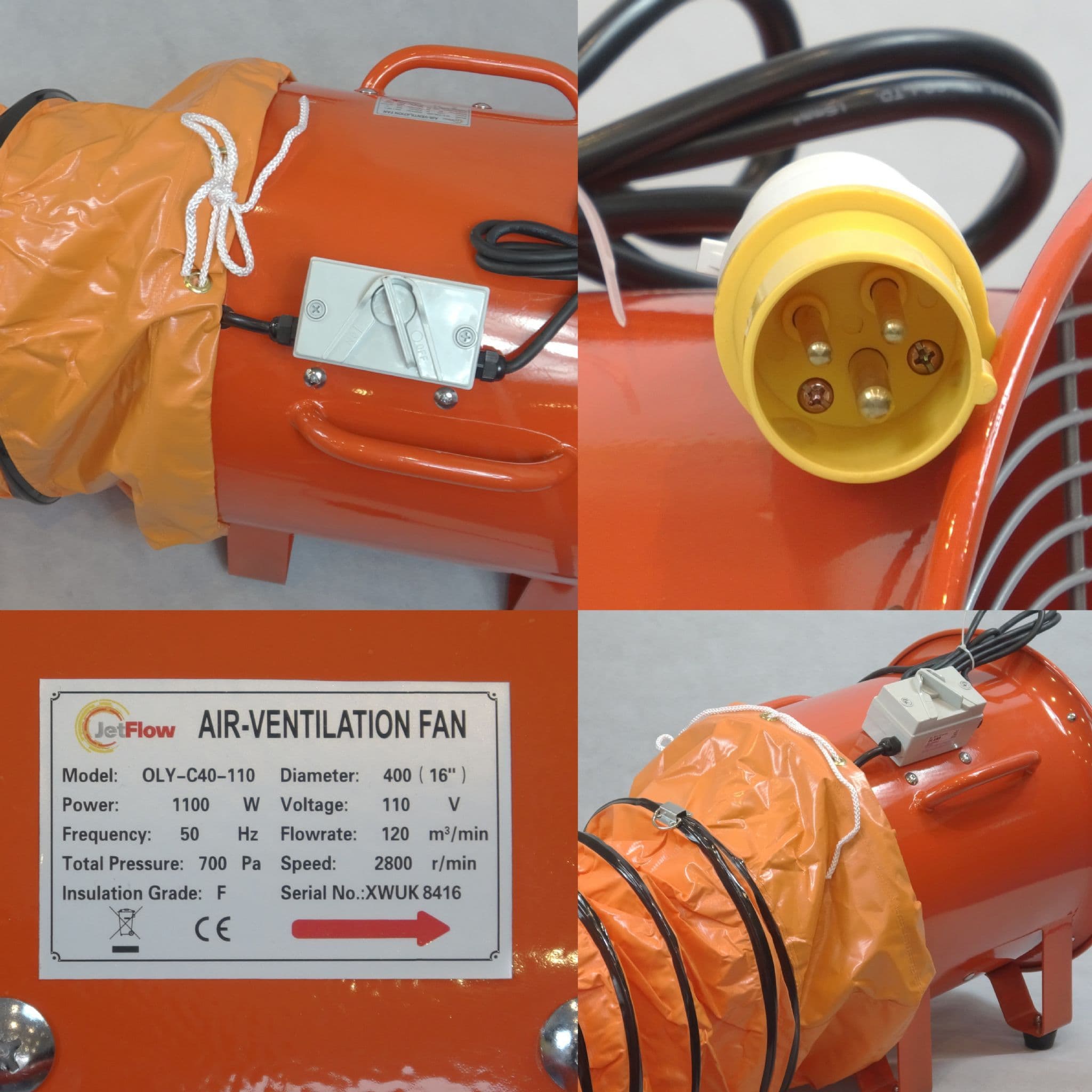

Technical Specifications:
- Product Type: Portable Ventilator & Extractor Fan
- Model: OLY-C40/110
- Diameter: 400mm (16")
- Airflow: 6300m³/hr
- Static Pressure: 700 Pa
- Power Supply: 110V~50Hz
- Running Current: 9.2A
- Construction: 1.5mm Powder-Coated Steel
- Motor: Aluminium Housing
- Weight: 26.5kg
- Dimensions: 540mm × 490mm × 470mm

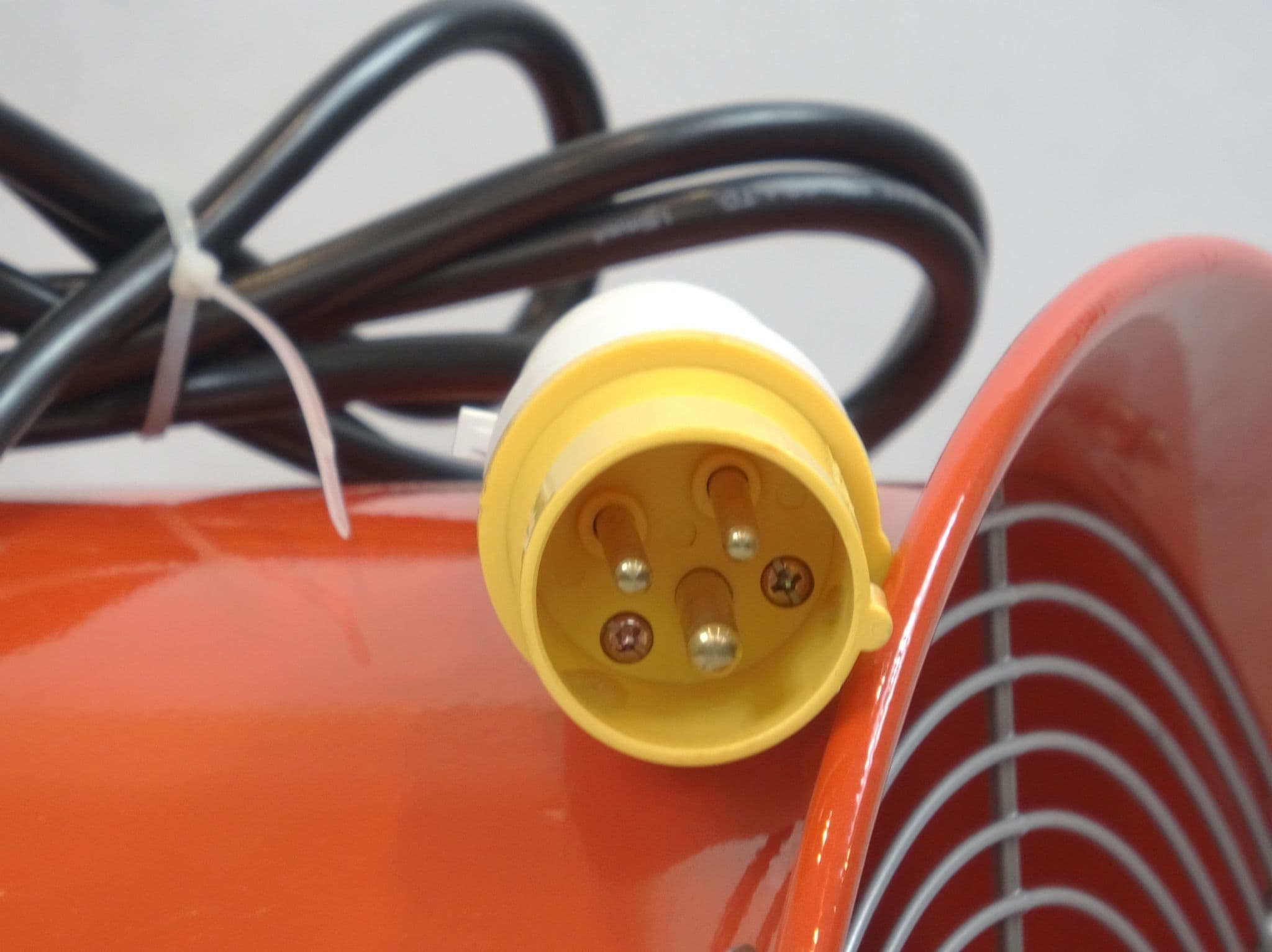

- Plug Type: 110V 32A Yellow Site Plug
PDF Data Sheet:
Video Data:
Just How Tough?
