30W Polycrystalline Solar PV Module

Ying Li provides high quality, cost competitive photovoltaic (PV) modules which are manufactured in China using industry standard components and material accordance with IEC 61215 and come with 25 years limited warranty. Main product range includes both monocrystalline and polycrystalline solar PV modules which range from 5W to 180W. Cells are laminated between high transmissivity, low iron, 3mm tempered glass and come in a heavy duty anodised aluminium frame which provides high wind resistance and convenient mounting access. Modules are manufactured in accordance with IEC 61215, and come with 25 years limited output guarantee.

Key Product Feature's

• 36 polycrystalline silicon solar cells (78mm x 78mm) which are connected in series and capable of charging 12V batteries
• Heavy duty anodised aluminium frame provides high wind resistance
  and convenient mounting access
• Cells are laminated between high transmissivity, low iron, 3mm tempered
  glass and a sheet of TPT material and finally two sheets of EVA to
  prevent moisture entering the module
• Installation holes for standard bracket systems are provided
• Waterproof versatile junction box provides flexibility of connections
• Modules are manufactured in accordance with IEC 61215, and come with 25 years limited output guarantee

Power Data

Typical     maximum power     (Wp)     30
Open circuit voltage     (Voc)     21.0
Optimum operating voltage (Vmp)     17.5
Optimum operating current     (Imp)     1.70
Short circuit current     (Isc)     2.00

Other Data

Normal     temperature     46±2ºC
Current temperature coefficient     (Isc) +0.10%/º
Voltage temperature coefficient     (Voc)     -0.38%/ºC
Power temperature coefficient     (Wp)     +0.47%/º
Edge grounding     ≤1ohm
Wind resistance     2400Pa
Maximum system voltage     1000V

Machanical Data

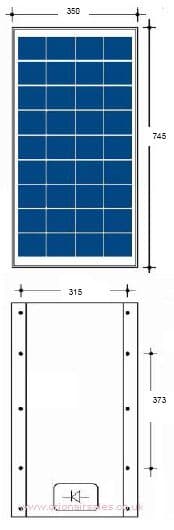

Size of module (mm) 745 x 350 x 25
Weight     3.9Kg
