Fujitsu ASYG18-LF Wall Mounted Air conditioning (5.2Kw / 17000Btu) Inverter

Our Price: £895.00
Fujitsu ASYG18-LF Wall Mounted Air conditioning (5.2Kw / 17000Btu) Inverter
Fujitsu ASYG18-LF Wall Mounted Air conditioning (5.2Kw / 17000Btu) Inverter
Fujitsu ASYG18-LF Wall Mounted Air conditioning (5.2Kw / 17000Btu) Inverter
Description

5.2Kw / 17100Btu Heatpump Inverter Split Type Wall mounted Air conditioning System.

Smart designs
In addition to more attractive aesthetics, the new design of the front of the units provides easier cleaning as the air return remains hidden at the top. The unit is a slimline construction 257mm on small models.

Lambda evaporator
The strategic layout of the interchanger optimises the dimensions of the inside unit and enhances the flow/K calories ratio. In parallel fashion, the turbine is able to work at lower revolutions and minimises the noise thanks to its greater diameter.

HSP outdoor units (High Strength Polyester)
The units made from this material are smaller and weigh less whilst increasing their resistor to the outside. Among the many qualities of HSP is the noise reduction as a result of the absorption of vibrations and the incorporation of unique details, such as the protection of the connection valves.



Product Key Feature's

• High CoP, up to 4.19
• Infra-red controller
• Slim construction 275mm
• Pipe runs up to 15 metres
• Low noise – 31dBA on low
• Back-up switch for loss of controller
• Cold draft prevention on heat pump start up
• Fault diagnosis
• Auto re-start after power interruption
• PRE-CHARGED WITH REFRIGERANT for up to 15 metres pipe length

With “Power Diffuser” effect for greater comfort.
Automatic cleaning function.
Cleaner and healthier air with ion generator incorporated in indoor unit.
Low ambient tested to -15 Deg/C in heating.
Light weight noise absorbing outdoor unit.



ASYG Wall Mounted ASYG18-LF
Power source 1 ph 240V
Type  Inverter  rotary
COOLING (nominal) max. kW 5.2 / 17000 BTU
HEATING (nominal) max. kW 6.25 / 20500 BTU
UK Cooling (max) kW  n/a
UK Sensible Cooling kW  n/a
E.E.R.  n/a
Energy label in heating  C
Energy label in cooling  C
C.o.P  3.0
ECA - Yes

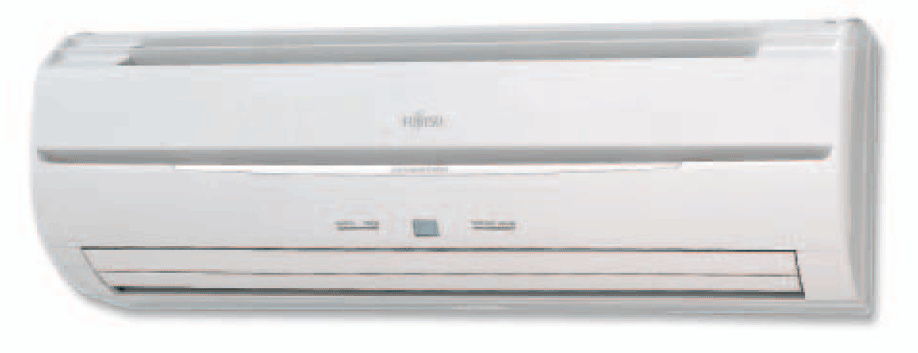

INDOOR UNIT ASYG18-LFCA

Exterior dimensions (mm) 320x998x228
Net weight kg 14
Sound Pressure Level* dB(A) (F/M/S/Q) 42/37/31/22

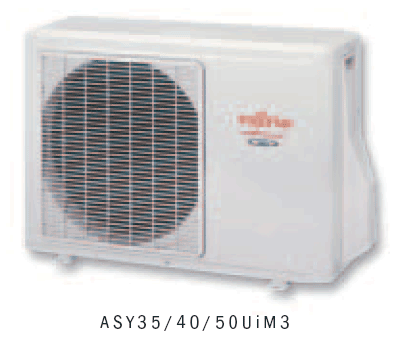

OUTDOOR UNIT AOYG18-LFC

Exterior dimensions (mm) 620 x 790 x 298
Net weight kg 40
Power Source Rating MCB A 20A
Refrigerant max piping length m 15
Pre-charged with 15m refrigerant R410a
Pipe Sizes -  1/4”- 1/2”
