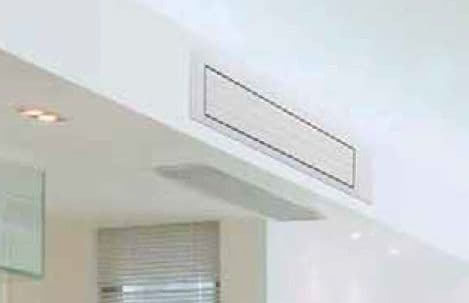

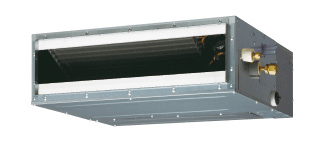

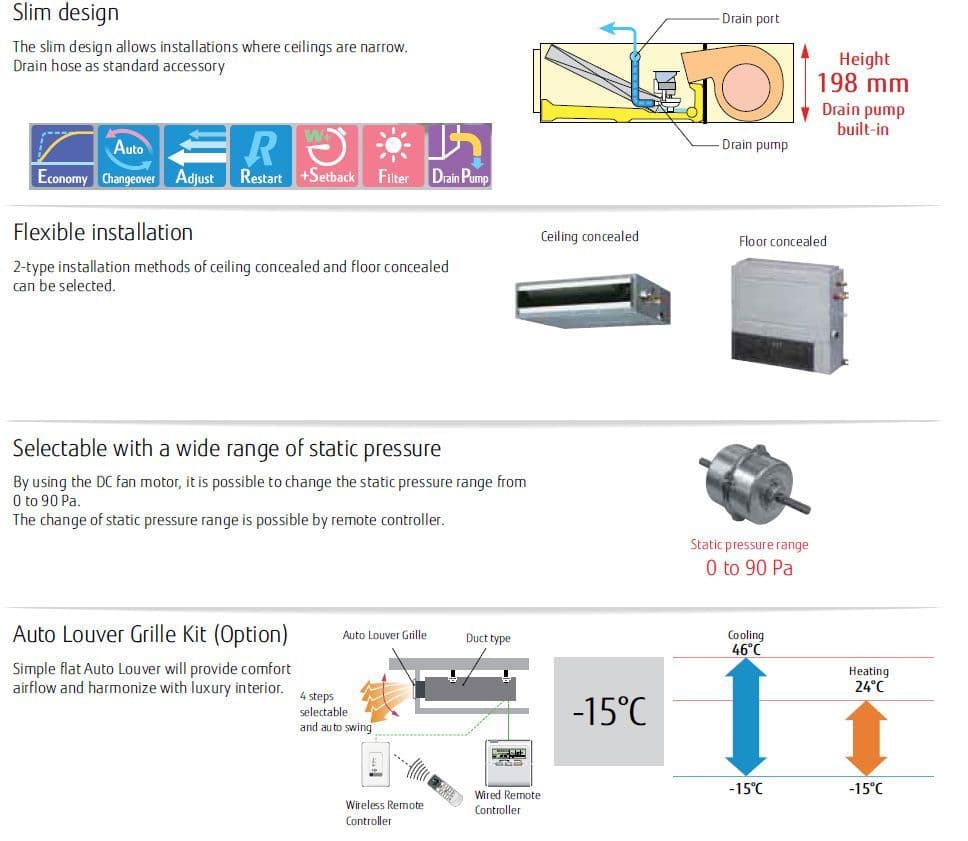

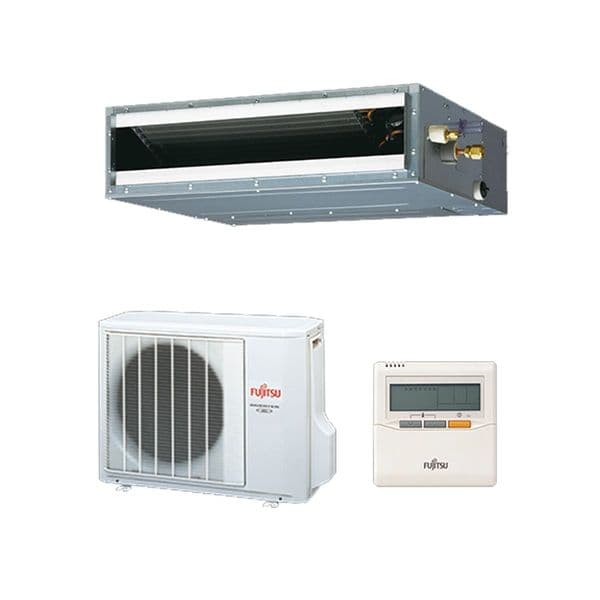

Ducted Air Conditioning Home / Air Conditioning / Ducted Air Conditioning / Fujitsu Air Conditioning ARYG18LLTB Slimline Convertible Concealed Duct Heat Pump Inverter (5Kw / 17000Btu) 240V~50Hz Fujitsu Air Conditioning ARYG18LLTB Slimline Convertible Concealed Duct Heat Pump Inverter (5Kw / 17000Btu) 240V~50Hz Fujitsu Air Conditioning ARYG18LLTB Slimline Convertible Concealed Duct Heat Pump Inverter (5Kw / 17000Btu) 240V~50Hz £1,626.18 £1,355.15 (ex. VAT) Stock Status: In Stock Front Plenum Box: Not Reguired Plenum Box With 2 x 200mm Oulets (+£119.00) Plenum Box With 3 x 150mm Oulets (+£124.00) Rear Plenum Box: Not Reguired Plenum Box With 2 x 200mm Inlets (+£114.00) Information Reviews A convertible ducted unit that can be seated horizontally or vertically Perfect for areas where you want concealed air conditioning, the ARYG units are convertible and can be seated upright for floor based applications or mounted above a ceiling. The ARYG is Fujitsu air conditioning is designed for homes, offices, restaurants or shops, the unit operates at low noise levels and is virtually invisible when installed within a suspended ceiling. Its low unit height (198mm) and lightweight design also helps to make installation easier and more convenient. It's whisper quiet operation is ideal for master bedrooms, living rooms and other single room residential or commercial uses. Available in three sizes, it can be installed in a bulkhead for a different and attractive architectural finish or can be ducted within the space for total integration with the room. Fujitsu air conditioning have developed a new DC inverter outdoor unit with a energy saving V-Ram circuit. The result is a compact and light outdoor unit with a reduced sized DC compressor which, in addition to providing greater performance, allows the appliance to heat up efficiently even when the outside temperature is very low. Unlike conventional systems, the Fujitsu inverter technology adapts the speed of the compressor to the needs of each moment, consuming only the energy required. This allows temperature swings to be reduced drastically and maintains a margin of between ±0,5ºC, providing greater room temperature stability and comfort. Key Product Features: Increased static pressure range Slim design for adaptable installation Dual concealed type Air intake direction can be selected Optional Auto Louver Grille Kit Compact and powerful Specification: Indoor ARYG18LLTB Outdoor AOYG18LALL Nominal Capacity (kW) Cooling 5.20 (0.90-5.90) Heating 6.00 (0.90-7.50) UK Total / Sensible Cooling * 4.80 / 3.45 Power Consumption (kW) Cooling 1.62 Heating 1.66 EER / COP (Nominal Conditions) 3.21 / 3.61 Pdesign (kW) @ -10°C Cooling 5.20 Heating 5.20 SEER Cooling 6.20 SCOP Heating (Average) 4.10 (QHUJ\ (IÀFLHQF\ &ODVV Cooling A++ Heating (Average) A+ Annual Energy Consumption (kWh/a) Cooling 293 Heating 1774 Moisture Removal l/h 2.00 Dimensions (HxWxD) mm Inner 198x900x620 Outer 578x790x300 Net Weight (kg) Inner 23 Outer 40 Room Air Circulation (high) m3/h Inner 940 Outer 2000 Static Pressure Range (Standard) Pa 0 to 90 (25) Power Supply V-PH-Hz 230 / 1 / 50 Power Supply To Outdoor Running Current (A) Cooling 7.20 Heating 7.40 Starting Current A 7.40 Suggested MCB/Fuse A 16 Interconnecting Cable 3 + E Remote Control Type Wired Sound Pressure (dB(A) Cooling) Indoor Q/L/M/H 27 / 29 / 30 / 32 Outdoor H 50 Sound Power (dB(A) Cooling) Indoor H 58 Outdoor H 62 Max Pipe Length m 25 Max Height Difference m 15 Refrigerant Charge m 15 Additional Refrigerant Charge g/m 20 Pipe Size (inches) Gas 1/2 Liquid 1/4 Operating Range (OC) Cooling -10 ~ 46 Heating -15 ~ 24 Refrigerant R410A System List Price £ 1498 PDF Data Sheet: These air conditioning units must be installed by an F-Gas qualified engineer. We can install the unit for you using our F-Gas Certified Engineers. Please note if you do not select our installation service we will not ship the unit until we have obtained evidence from you that you will have the unit installed by an F-Gas qualified engineer. This is a requirement of the Article 11 (5) EC/517/2014 on fluorinated greenhouse gases and The Fluorinated Greenhouse Gases Regulations 2015. Not yet reviewed Write an online review and share your thoughts with other shoppers! Be the first to review this product Related Products Fujitsu Air Conditioning UTYTWBXF UTY-TWBXF Controller Communication Kit £106.08 £88.40 (ex. VAT) Air Conditioning Pipe Kit 1/4" + 1/2" £79.87 £66.56 (ex. VAT) Fujitsu Air Conditioning UTYXSZX UTY-XSZX 8 Meter Remote Room Sensor £126.23 £105.19 (ex. VAT) Fujitsu Air Conditioning UTDGXTAW Flat Auto Louvre Grille Kit Size 07-14 ARYG / ARXD £146.17 £121.81 (ex. VAT) Fujitsu Air Conditioning FJRCWIFI1 FJ-AC-WIFI-1 Wi-Fi Remote Control Module Ir £234.32 £195.27 (ex. VAT) 15 meter Installation Pipe Kit 1/4" And 1/2" For Air Conditioning And Refrigeration £183.55 £152.96 (ex. VAT) Fujitsu Air Conditioning UTY-LBTYM Hard Wired Control Conversion To IR Remote Kit £486.84 £405.70 (ex. VAT) Fujitsu Air Conditioning UTYTFNXZ1 UTY-TFNXZ1 WiFi Remote Control Interface £307.26 £256.05 (ex. VAT) 3 x 150mm Spigot Outlet For Fujitsu Air Conditioning ARYG Ducted Unit £172.05 £143.38 (ex. VAT) 30 meters x 150mm Flexible Insulated Ducting With 4 x 150mm Supply Air Diffusers And Collars Set £733.06 £610.88 (ex. VAT)
