BP Solar PV Panel

BP Photovoltaic Solar Panel 80 watt BP 380J 3 series 12V

BP Photovoltaic Solar Panel 80 watt BP 380J 3 series 12V

£379.20 £316.00 (ex. VAT)
Stock Status: Sold Out
Sorry, this item is out of stock
Blog

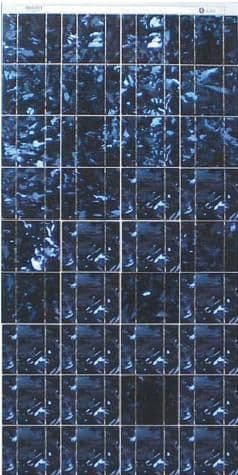

The BP 380 is an advanced 80W photovoltaic module that uses cells with antireflective SiN coating. This solar module is as equally suited to grid connect applications, such as residential systems or installations on commercial roofs and traditional photovoltaic applications such as Telecommunications and rural electrification. The BP 380 offers a superior price-performance relationship due to its reliability, white polyester back sheet and 36 advanced polycrystalline cells connected in series.

The 3 series modules have a 12V nominal output and are primarily designed for battery charging applications such as off-grid homes, telecommunications & telemetry sites, navigation equipment, motorhomes & caravans, sailboats and other sites where low power is needed. Solar panels can be connected in parallel to increase power and are modular allowing the user the flexibility to build up a system over a period of time in line with budgets and power requirements.



Product Key Feature's

  • Residential solar panel power systems applications
  • Public, commercial and industrial solor panel systems
  • Suitable for off-grid and grid tie application
  • Clear Universal frame and J-type junction box.
  • 25 Year Warranty

Model BP 380J
Warranty 25 Years
Operating Voltage [V] 12v
Peak Power [W] 80W
Tolerance in Output [%] +/-5%
Max System Voltage 600
Voltage at Pmax [v] 17.6
Cell Technology Multicrystalline
Current at Pmax [A] 4.6
NOCT (DegC) 47
Open Circuit Voltage [V] 22.1
Short Circuit Current [A] 4.8

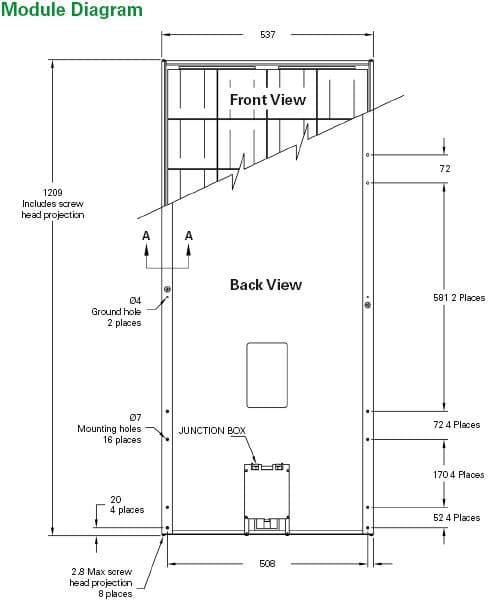

Length [mm] 1209
Width [mm] 537
Depth of Jnct Box [mm] 50
Conversion Effiiency 13
Weight [Kg] 7.7
Number of Cells 36
Bend Tollerance +/-3%
